PicoScope 3000 Series

Oscilloscope
3000

Product Description

PicoScope 3000 Series USB-powered PC oscilloscopes are small, light, and portable and can easily slip into a laptop bag while offering a range of high-performance specifications.

These oscilloscopes offer 2 or 4 analog channels and a built-in function / arbitrary waveform generator.

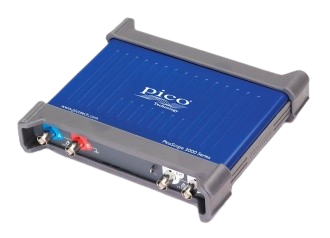

PicoScope 3000 Series - PT. Sumber Instrumindo

Available Models

Geser dot di bawah untuk melihat spesifikasi masing-masing model.

PicoScope 3203D

Model specification

Specification Value
Category 2-channel
Bandwidth 50 MHz
Rise Time 7.0 ns
Sampling Rate 1 GS/s (1 channel), 500 MS/s (2 channels/digital), 250 MS/s (up to 4 channels)
ETS 2.5 GS/s
Memory Buffer 64 MS
Streaming 17 MS/s (software), 125 MS/s (SDK)
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V

PicoScope 3203D MSO

Model specification

Specification Value
Category 2-channel + 16 digital
Bandwidth 50 MHz
Rise Time 7.0 ns
Sampling Rate 1 GS/s (1 channel), 500 MS/s (2 channels/digital), 250 MS/s (up to 4 channels)
ETS 2.5 GS/s
Memory Buffer 64 MS
Streaming 17 MS/s (software), 125 MS/s (SDK)
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V
Digital Inputs (MSO) 16 CH, 100 MHz max

PicoScope 3204D

Model specification

Specification Value
Category 2-channel
Bandwidth 70 MHz
Rise Time 5.0 ns
Sampling Rate 1 GS/s (1 channel), 500 MS/s (2 channels/digital), 250 MS/s (up to 4 channels)
ETS 5 GS/s
Memory Buffer 128 MS
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V

PicoScope 3204D MSO

Model specification

Specification Value
Category 2-channel + 16 digital
Bandwidth 70 MHz
Rise Time 5.0 ns
Sampling Rate 1 GS/s (1 channel), 500 MS/s (2 channels/digital), 250 MS/s (up to 4 channels)
ETS 5 GS/s
Memory Buffer 128 MS
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V
Digital Inputs (MSO) 16 CH

PicoScope 3205D

Model specification

Specification Value
Category 2-channel
Bandwidth 100 MHz
Rise Time 3.5 ns
Sampling Rate 1 GS/s (1 channel), 500 MS/s (2 channels/digital), 250 MS/s (up to 4 channels)
ETS 10 GS/s
Memory Buffer 256 MS
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V

PicoScope 3205D MSO

Model specification

Specification Value
Category 2-channel + 16 digital
Bandwidth 100 MHz
Rise Time 3.5 ns
Sampling Rate 1 GS/s (1 channel), 500 MS/s (2 channels/digital), 250 MS/s (up to 4 channels)
ETS 10 GS/s
Memory Buffer 256 MS
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V
Digital Inputs (MSO) 16 CH

PicoScope 3206D

Model specification

Specification Value
Category 2-channel
Bandwidth 200 MHz
Rise Time 1.75 ns
Sampling Rate 1 GS/s, 500 MS/s, 250 MS/s
ETS 2.5 GS/s (3203–3206 share same ETS)
Memory Buffer 512 MS
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V

PicoScope 3206D MSO

Model specification

Specification Value
Category 2-channel + 16 digital
Bandwidth 200 MHz
Rise Time 1.75 ns
Sampling Rate 1 GS/s, 500 MS/s, 250 MS/s
ETS 2.5 GS/s (3203–3206 share same ETS)
Memory Buffer 512 MS
Vertical Resolution 8-bit
Input Range ±20 mV to ±20 V
Digital Inputs (MSO) 16 CH

PicoScope 3403D

Model specification

Specification Value
Category 4-channel
Bandwidth 50 MHz
Rise Time 7.0 ns
Sampling Rate 500 MS/s (up to 2 channels), 250 MS/s (4 channels)
ETS 2.5 GS/s
Memory Buffer 64 MS
Vertical Resolution 8-bit
Input Range ±20 mV – ±20 V

PicoScope 3403D MSO

Model specification

Specification Value
Category 4 analog + 16 digital
Bandwidth 50 MHz
Rise Time 7.0 ns
Sampling Rate 500 MS/s (up to 2 channels), 250 MS/s (4 channels)
ETS 2.5 GS/s
Memory Buffer 64 MS
Vertical Resolution 8-bit
Input Range ±20 mV – ±20 V
Digital Inputs 16 channels (MSO)
Function Generator Yes

PicoScope 3404D

Model specification

Specification Value
Category 4-channel
Bandwidth 70 MHz
Rise Time 5.0 ns
Sampling Rate 500 MS/s / 250 MS/s
ETS 5 GS/s
Memory Buffer 128 MS
Vertical Resolution 8-bit

PicoScope 3404D MSO

Model specification

Specification Value
Category 4-channel + 16 digital
Bandwidth 70 MHz
Rise Time 5.0 ns
Sampling Rate 500 MS/s / 250 MS/s
ETS 5 GS/s
Memory Buffer 128 MS
Vertical Resolution 8-bit
Digital Inputs 16 CH
Function Generator Yes

PicoScope 3405D

Model specification

Specification Value
Category 4-channel
Bandwidth 100 MHz
Rise Time 3.5 ns
Sampling Rate 500 MS/s / 250 MS/s
ETS 10 GS/s
Memory Buffer 256 MS
Vertical Resolution 8-bit

PicoScope 3405D MSO

Model specification

Specification Value
Category 4-channel + 16 digital
Bandwidth 100 MHz
Rise Time 3.5 ns
Sampling Rate 500 MS/s / 250 MS/s
ETS 10 GS/s
Memory Buffer 256 MS
Vertical Resolution 8-bit
Digital Inputs 16 CH
Function Generator Yes

PicoScope 3406D

Model specification

Specification Value
Category 4-channel
Bandwidth 200 MHz
Rise Time 1.75 ns
Sampling Rate 500 MS/s / 250 MS/s
ETS 2.5 GS/s (shared spec)
Memory Buffer 512 MS
Vertical Resolution 8-bit

PicoScope 3406D MSO

Model specification

Specification Value
Category 4-channel + 16 digital
Bandwidth 200 MHz
Rise Time 1.75 ns
Sampling Rate 500 MS/s / 250 MS/s
ETS 2.5 GS/s (shared spec)
Memory Buffer 512 MS
Vertical Resolution 8-bit
Digital Inputs 16 CH
Function Generator Yes
