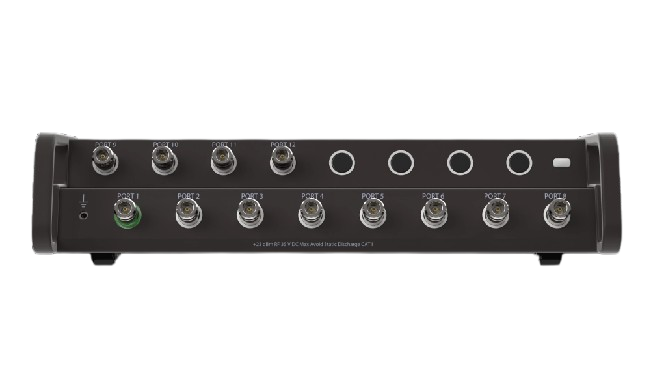

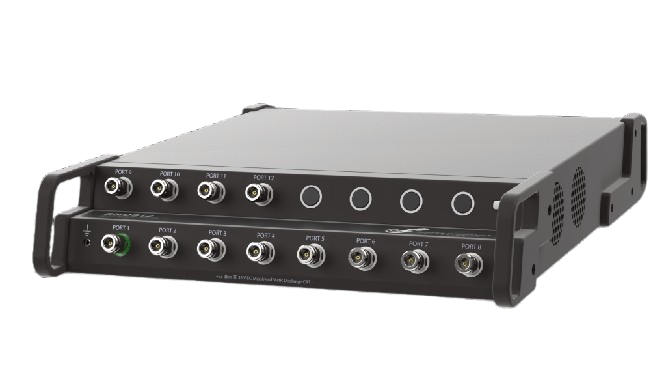

12-Port 9 GHz Vector Network Analyzer

VNAS TO 22 GHZ
SN0912

Product Description

SN0912 Multiport VNA is a competitively priced, versatile multiport solution with excellent dynamic range and measurement speed.

There are additional models available in 6-, 8-, 10-, 14-, and 16-port configurations.

SN0912 VNAs are an organic extension of the Compact VNA family, enabling the full complexity of VNA measurements, a streamlined calibration process, and reduced test times.

The SN0912 hardware can fit a 19” rack and utilizes robust, durable port connectors with ergonomic positioning for simplified cable connection.

SN0912 features CMT’s next-generation software that delivers an intuitive and contemporary user interface compatible with both Linux and Windows OS.
12-Port 9 GHz Vector Network Analyzer - PT. Sumber Instrumindo

Key Features

No Feature
1 Supports advanced multi-port measurements for complex RF components and assemblies.
2 Designed to analyze signal behavior across many connections simultaneously.
3 Provides stable and dependable performance suitable for professional laboratory and production environments.
4 Operates smoothly with an intuitive software interface that simplifies engineering workflows.
5 Includes time-domain analysis capabilities for identifying issues along signal paths or components.
6 Easily integrates into automated test systems and standard RF measurement setups.
7 Ideal for evaluating antennas, cable assemblies, switches, filters, and other multi-port RF devices.

Technical Specifications

Specification Value
Frequency Range 300 kHz to 9 GHz
Measured Parameters All S-parameters
Sweep Types Linear frequency, log frequency, segment, power sweep
Dynamic Range 140 dB typ. (10 Hz IF BW)
Measurement Speed 24 µs typ
Output Power Adjustment Range -45 dBm to +10 dBm
Measurement Points Per-Sweep 2 to 500,001
