16-Port 9 GHz Vector Network Analyzer

VNAS TO 22 GHZ
SN0916

Product Description

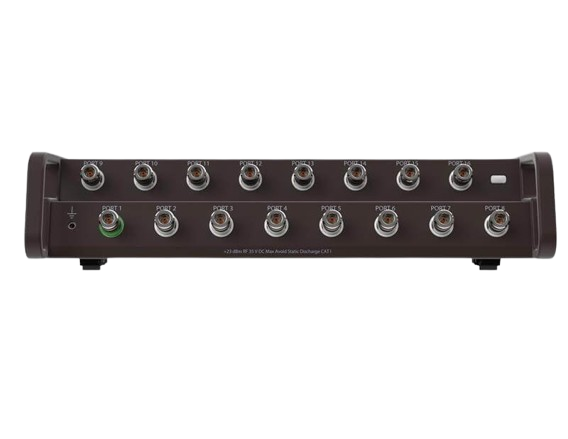

SN0916 Multiport VNA is a competitively priced, versatile multiport solution with excellent dynamic range and measurement speed.

There are additional models available in 6-, 8-, 10-, 12-, and 14-port configurations.

SN0916 VNAs are an organic extension of the Compact VNA family, enabling the full complexity of VNA measurements, a streamlined calibration process, and reduced test times.

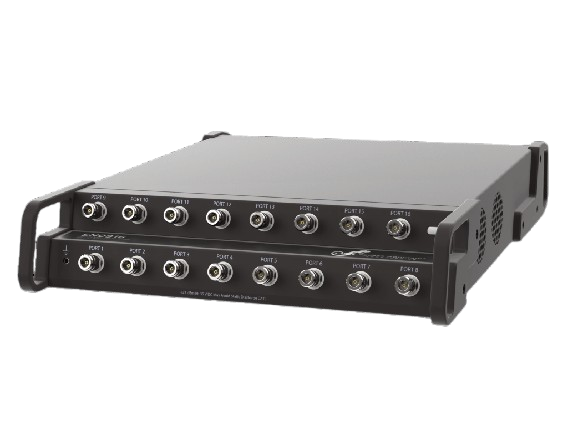

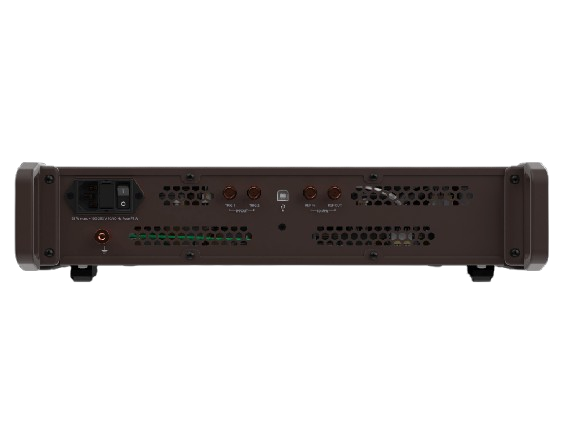

The SN0916 hardware can fit a 19” rack and utilizes robust, durable port connectors with ergonomic positioning for simplified cable connection.

SN0916 features CMT’s next-generation software that delivers an intuitive and contemporary user interface compatible with both Linux and Windows OS.
16-Port 9 GHz Vector Network Analyzer - PT. Sumber Instrumindo

Key Features

No Feature
1 Supports comprehensive multi-port testing for highly complex RF modules.
2 Enables simultaneous signal analysis across many ports/connections.
3 Provides stable and reliable operation suitable for both lab and production environments.
4 Comes with an intuitive and easy-to-use software interface, friendly for engineers.
5 Includes time-domain analysis capabilities to help detect and locate issues along signal paths or components.
6 Integrates well into automated testing setups and standard RF measurement workflows.
7 Ideal for evaluating antennas, filters, switches, cable assemblies, and other multi-port RF devices.

Technical Specifications

Specification Value
Frequency Range 300 kHz to 9 GHz
Measured Parameters All S-parameters
Sweep Types Linear frequency, log frequency, segment, power sweep
Dynamic Range 140 dB typ. (10 Hz IF BW)
Measurement Speed 24 µs typ
Output Power Adjustment Range -45 dBm to +10 dBm
Measurement Points Per-Sweep 2 to 500,001
