2-Port 18 GHz Vector Network Analyzer (VNA)

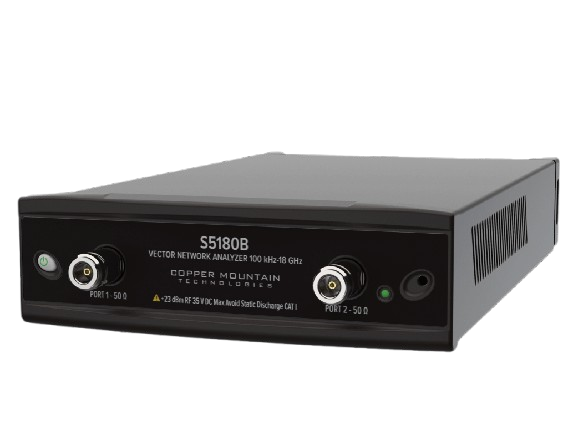

S5180B is a 2-Port 18 GHz Vector Network Analyzer offering improved performance and functionality compared to its predecessor S5180 Compact VNA.

S5180B is the first CMT VNA with built-in Pulse Modulation Generation/Measurement capabilities.

The Pulse Modulation feature is a paid software option sold separately from the VNA and is only compatible with the S5180B VNA due to hardware requirements.

The Pulse Modulation option can be added at any time during or after the initial VNA purchase.

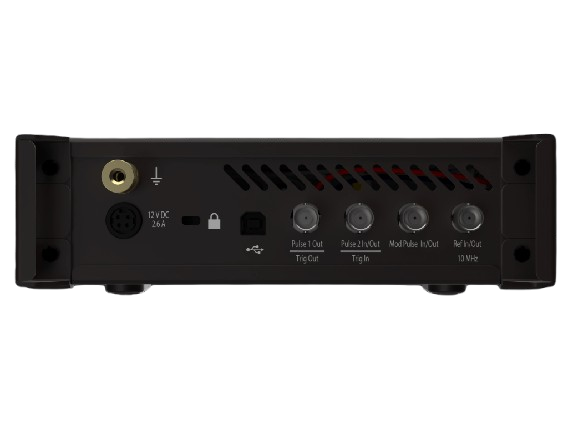

S5180B has a built-in pulse modulator, synchronizer, and a set of logical generators supporting various pulse generation options and corresponding measurement modes.

Pulses can be generated Synchronously or Asynchronously with respect to VNA measurement timing.

The VNA can be integrated into a production test system via Manufacturing Test plug-in.

S5180B VNA includes an RF measurement module and S2 software application which runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface.

S2 software can be installed on multiple computers, making it easy to share the use of the analyzer measurement module.
