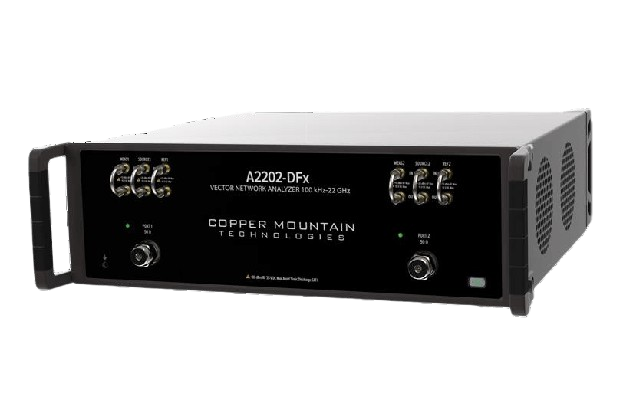

2-Port 22 GHz Direct Receiver Access and Frequency Extender Compatible Vector Network Analyzer

VNAS TO 22 GHZ

A2202-DFx

Product Description

The A2202-DFx 2-port 22 GHz VNA is frequency extender module and direct receiver access compatible. It is an anchor network analyzer for CMT’s frequency extension modules.

For users requiring precision millimeter-wave measurements, this VNA enables seamless compatibility with our frequency extender modules at an exceptional value.

The Direct Receiver Access (DRA) feature allows the use of an external directional coupler in place of the internal bridge, ideal for setups where a coupler is positioned between a preamplifier and a power amplifier, effectively excluding the preamp from the measurement.

This vector network analyzer delivers an impressive dynamic range of 135 dB and ultra-fast sweep speed as low as 12 µs/point, with all the advanced software features engineers have come to expect included standard in our software.

Whether you’re characterizing filters, amplifiers, antennas, or high-speed interconnects, the A2202-DFx provides an unmatched combination of price and performance for S-parameter measurements from 100 kHz to 22 GHz.

The A2202-DFx VNA includes an RF measurement module and the S2VNA software application which runs on Windows operating system on a PC, laptop, tablet, or x86 single-board computer connecting to the measurement hardware via USB interface.

The S2VNA software can be installed on multiple computers that share the use of the analyzer measurement module.

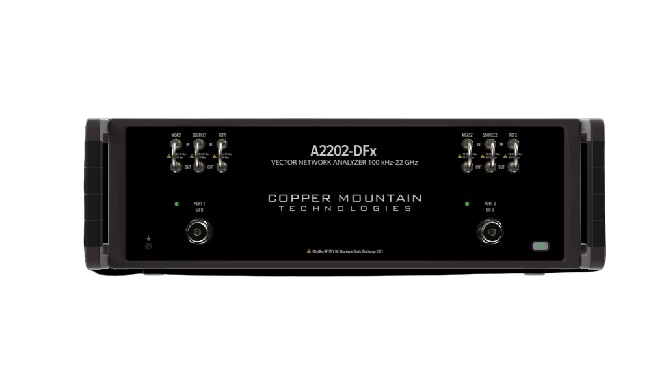

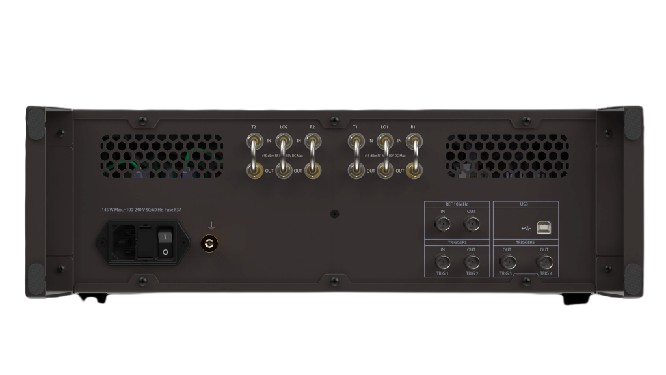

2-Port 22 GHz Direct Receiver Access and Frequency Extender Compatible Vector Network Analyzer - PT. Sumber Instrumindo

Key Features

No	Feature
1	Provides direct access to internal receivers for advanced calibration, mixer measurements, and custom RF setups.
2	Measures S11, S21, S12, and S22 with high accuracy and stability.
3	Ideal for evaluating high-performance filters, antennas, amplifiers, and RF components.
4	Extremely fast measurement speed (≈12 µs/point) for production environments and automated test systems.
5	Adjustable RF power to support sensitive devices or high-power components.
6	Includes time-domain analysis, gating, embedding/de-embedding, trace math, and frequency offset mode.
7	Supports up to 500,000 sweep points for detailed device characterization.
8	Operates directly from a PC via USB, perfect for benchtop, portable, and production setups.
9	Easy integration with Python, LabVIEW, MATLAB, C#, and ATE systems.
10	Compatible with the Manufacturing Test Plug-in for streamlined automated workflows.
11	Suitable for certified and traceable measurement requirements.

Technical Specifications

Specification	Value
Frequency Range	100 kHz to 22 GHz
Measured Parameters	S11, S21, S12, S22
Dynamic Range	1 MHz to 22 GHz / 133 dB (10 Hz IF BW)
Output Power Adjustment Range	-60 dBm to +15 dBm
Measurement Time per Point	< 12 µε
Full CW Frequency Accuracy	±2 × 10⁻⁶
Frequency Setting Resolution	1 Hz
Number of Measurement Points	Up to 500,001
Effective Directivity	100 kHz to 10 GHz (46 dB) / 10 GHz to 22 GHz (42 dB)
Trace Noise Magnitude	1 MHz to 22 GHz / 1 mdB rms (3 kHz IF BW)
