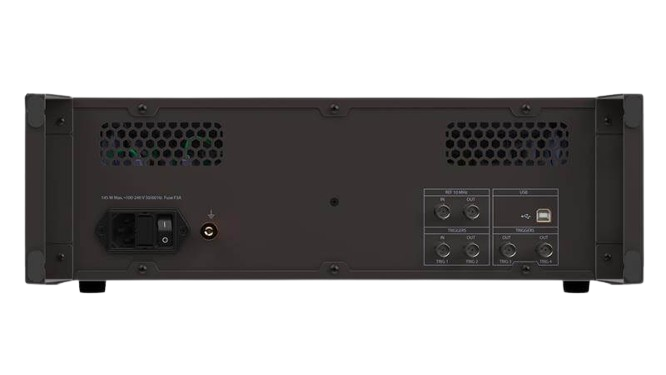

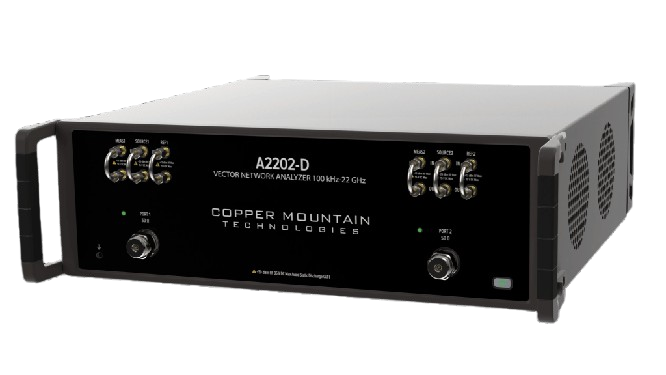

2-Port 22 GHz Direct Receiver Access Compatible Vector Network Analyzer

A2202-D
VNAs TO 44 GHz

The A2202-D 2-port 22 GHz VNA is direct receiver access compatible, which allows the use of an external directional coupler in place of the internal bridge. This is ideal for measurement setups where a coupler is positioned between a preamplifier and a power amplifier, effectively excluding the preamp from the measurement. The A2202-D delivers an impressive dynamic range of 130 dB and ultra-fast sweep speed as low as 12 µs/point, with all the advanced software features engineers have come to expect included standard in our software. Whether you’re characterizing filters, amplifiers, antennas, or high-speed interconnects, the A2202-D provides an unmatched combination of price and performance for S-parameter measurements from 100 kHz to 22 GHz. The A2202-D VNA includes an RF measurement module and the S2VNA software application, which runs on Windows operating system on a PC, laptop, tablet, or x86 single-board computer connecting to the measurement hardware via USB interface. The S2VNA software can be installed on multiple computers that share the use of the analyzer measurement module.

Features

Key capabilities and advantages

  • Allows direct access to the internal receivers for advanced calibration, mixer measurements, and custom measurement setups.
  • Supports S11, S21, S12, and S22 with high stability and precision.
  • Enables accurate testing of filters, antennas, cables, and high-performance RF components.
  • Very fast sweep speed (~12 µs per point), ideal for automated test systems and high-volume production.
  • Adjustable output power to support both sensitive devices and high-power components.
  • Operates directly from a PC via USB — perfect for benchtop, portable, or production-line use.
  • Includes time-domain analysis, gating, calibration tools, embedding/de-embedding, and extensive trace math.
  • Full SCPI command support, easy integration with Python, LabVIEW, MATLAB, C#, and ATE systems.
  • Supports up to 500,000 measurement points for detailed device characterization.
  • Compatible with the Manufacturing Test Plug-in for streamlined automated testing.
  • Ensures traceability for professional and certified measurement environments.

Specifications

Technical specifications and parameters

Frequency Range 100 kHz to 22 GHz
Measured Parameters S11, S21, S12, S22
Dynamic Range 1MHz to 22 GHz / 133 dB (10 Hz IF BW)
Output Power Adjustment Range -60 dBm to +15 dBm
Measurement Time Per-Point <12 με
Full CW Frequency Accuracy ±2-10-6
Frequency Setting Resolution 1Hz
Number of Measurement Points Up to 500,001
Effective Directivity 100 kHz to 10 GHz (46dB) / 10 GHz to 22 GHz (42dB)
Trace Noise Magnitude 1MHz to 22 GHz 1 mdB rms (3 kHz IF BW)
