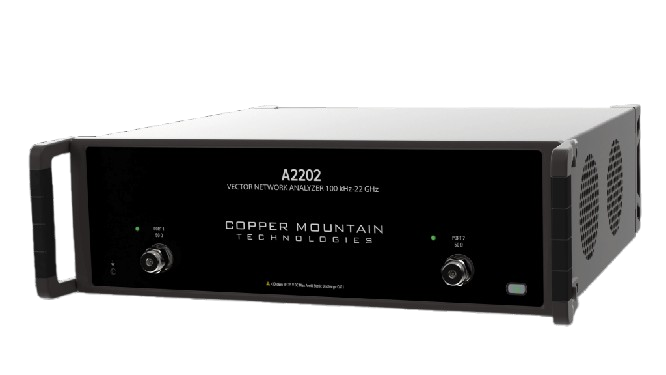

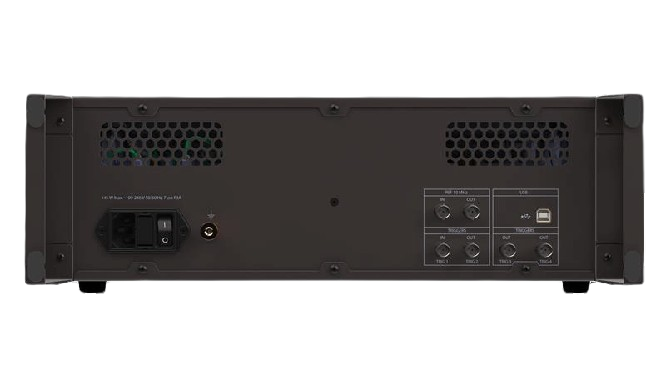

22 GHz Vector Network Analyzer

A2202

VNAs TO 44 GHz

The A2202 VNA includes an RF measurement module and S2VNA software application, which runs on Windows operating system on a PC, laptop, tablet, or x86 board single-board computer connecting to the measurement hardware via USB interface. S2VNA software can be installed on multiple computers, making it easy to share the use of the analyzer measurement module.

Features

Key capabilities and advantages

High-frequency 22 GHz capability for advanced RF, microwave, and high-speed component testing.
2-port VNA design, ideal for S-parameter measurements (S11, S21).
Wide dynamic range enabling accurate testing of low-loss and high-loss devices.
Fast measurement speed for efficient characterization and automated workflows.
Low-noise measurement engine ensuring clean, stable, and repeatable results.
USB-controlled operation, simple integration with PC-based software.
Suitable for lab, production, and field environments thanks to compact design.
Supports automated testing & scripting, ideal for manufacturing and R&D.
Factory-calibrated for immediate, high-accuracy performance.
Compatible with Windows, Linux, and ARM platforms.

Specifications

Technical specifications and parameters

Frequency Range	100 kHz to 22 GHz
Measured Parameters	S11, S21, S12, S22
Dynamic Range	1 MHz to 22 GHz: 133 dB (10 Hz IF BW)
Output Power Adjustment Range	-60 dBm to +15 dBm
Measurement Time Per-Point	< 12 µs
Full CW Frequency Accuracy	±2 × 10⁻⁶
Frequency Setting Resolution	1 Hz
Number of Measurement Points	Up to 500,001
Effective Directivity	100 kHz to 10 GHz: 46 dB / 10 GHz to 22 GHz: 42 dB
Trace Noise Magnitude	1MHz to 22 GHz: 1 mdB rms (3 kHz IF BW)
