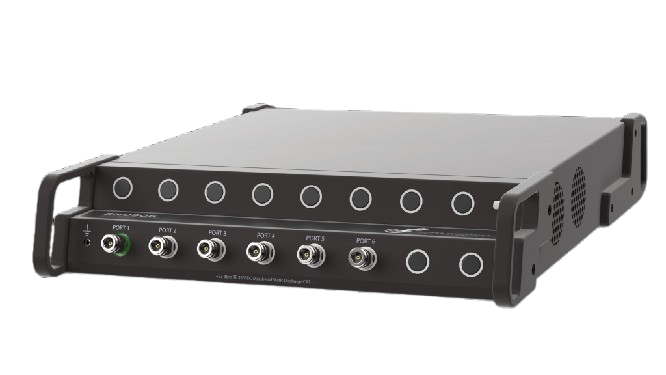

6-Port 9 GHz Vector Network Analyzer (VNA)

VNAS TO 22 GHZ
SN0906

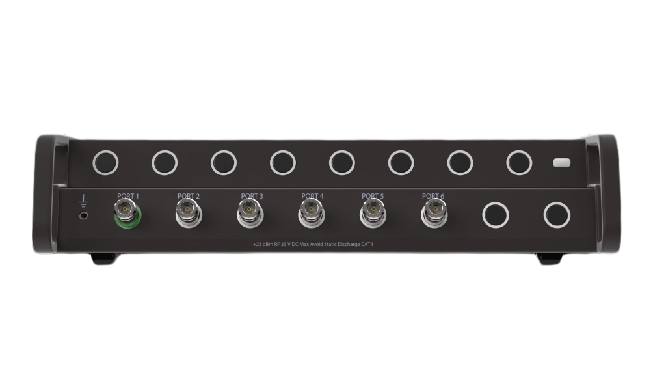

Product Description

SN0906 Multiport VNA is a competitively priced, versatile multiport solution with excellent dynamic range and measurement speed.

There are additional models available in 8-, 10-, 12-, 14-, and 16-port configurations.

SN0906 VNAs are an organic extension of the Compact VNA family, enabling the full complexity of VNA measurements, a streamlined calibration process, and reduced test times.

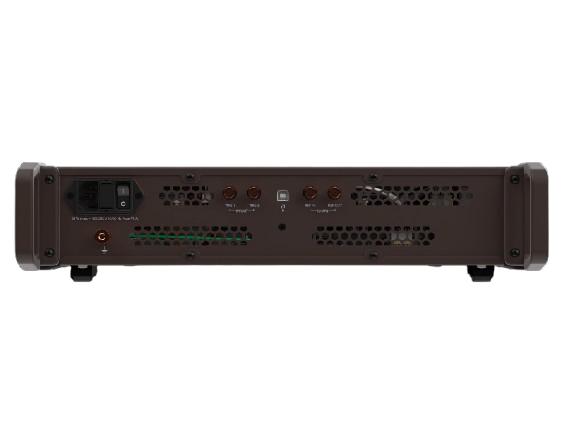

The SN0906 hardware can fit a 19” rack and utilizes robust, durable port connectors with ergonomic positioning for simplified cable connection.

SN0906 features CMT’s next-generation software that delivers an intuitive and contemporary user interface compatible with both Linux and Windows OS.
6-Port 9 GHz Vector Network Analyzer (VNA) - PT. Sumber Instrumindo

Key Features

No Feature
1 6-port architecture for multi-port device testing in a single sweep.
2 Enables complete S-parameter analysis for complex RF components and systems.
3 Fast measurement performance for high-throughput engineering and production environments.
4 Advanced time-domain analysis for evaluating reflections, impedance behavior, and signal integrity.
5 Fixture simulation & de-embedding tools to remove unwanted effects from cables, connectors, or test adapters.
6 Limit testing to automate pass/fail evaluations during manufacturing or quality control.
7 Marker and trace math for deeper insight into device performance.
8 Automated test support with full software control for scripting and integration into automated workflows.
9 Professional-grade software interface for easy operation, visualization, and data export.
10 Ideal for antenna, filter, RF modules, and multi-port network development and verification.

Technical Specifications

Specification Value
Frequency Range 300 kHz to 9 GHz
Measured Parameters All S-parameters
Sweep Types Linear frequency, log frequency, segment, power sweep
Dynamic Range 140 dB typ. (10 Hz IF BW)
Measurement Speed 24 µs typ
Output Power Adjustment Range -45 dBm to +10 dBm
Measurement Points Per-Sweep 2 to 500,001
