8-Port 9 GHz Vector Network Analyzer

VNAS TO 22 GHZ
SN0908

Product Description

SN0908 Multiport VNA is a competitively priced, versatile multiport solution with excellent dynamic range and measurement speed.

There are additional models available in 6-, 10-, 12-, 14-, and 16-port configurations.

SN0908 VNAs are an organic extension of the Compact VNA family, enabling the full complexity of VNA measurements, a streamlined calibration process, and reduced test times.

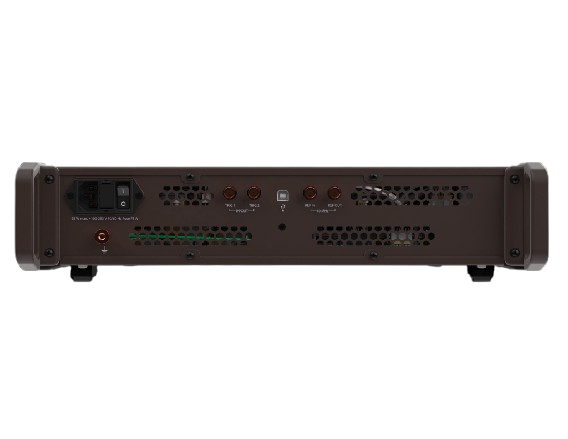

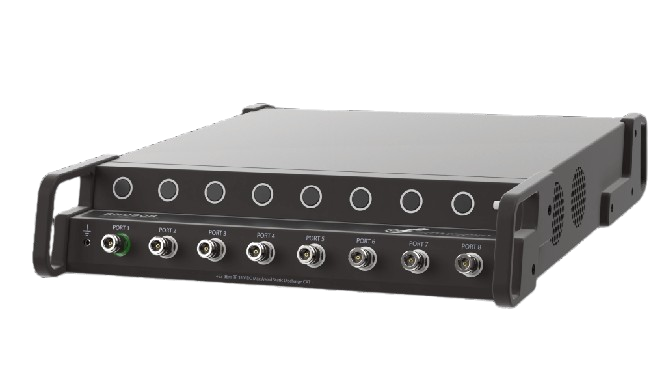

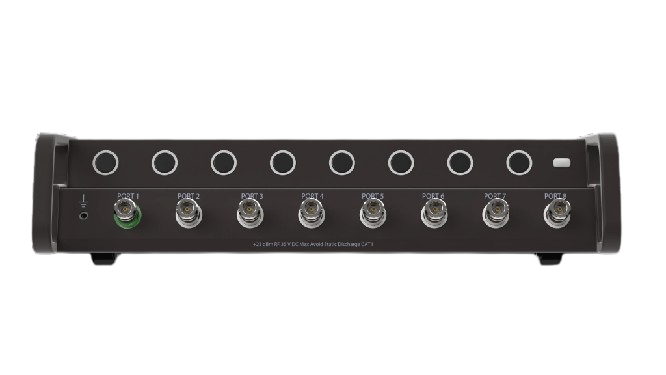

The SN0908 hardware can fit a 19” rack and utilizes robust, durable port connectors with ergonomic positioning for simplified cable connection.

SN0908 features CMT’s next-generation software that delivers an intuitive and contemporary user interface compatible with both Linux and Windows OS.
8-Port 9 GHz Vector Network Analyzer - PT. Sumber Instrumindo

Key Features

No Feature
1 Supports multi-port measurements for more complex RF components.
2 Designed for analyzing signal behavior across multiple connections at the same time.
3 Provides high measurement stability and reliable performance for professional lab use.
4 Offers fast measurement processing with smooth operation through its dedicated software.
5 Includes time-domain analysis capability for locating issues along cables or components.
6 Compatible with standard laboratory setups and can be integrated into automated testing.
7 Features an intuitive software interface that is easy to operate for engineers.
8 Suitable for testing antennas, filters, cables, switches, and various RF assemblies.

Technical Specifications

Specification Value
Frequency Range 300 kHz to 9 GHz
Measured Parameters All S-parameters
Sweep Types Linear frequency, log frequency, segment, power sweep
Dynamic Range 140 dB typ. (10 Hz IF BW)
Measurement Speed 24 µs typ
Output Power Adjustment Range -45 dBm to +10 dBm
Measurement Points Per-Sweep 2 to 500,001
