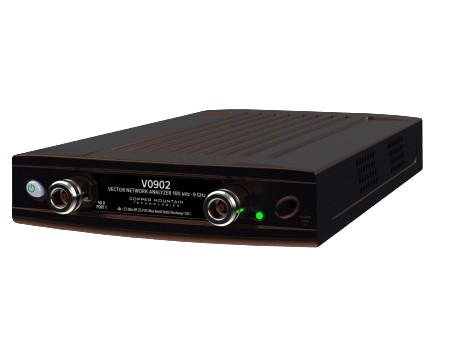

9 GHz Vector Network Analyzer

V0902
VNAs TO 44 GHz

The V0902 is a 2-port, 9 GHz Vector Network Analyzer that delivers metrology-grade performance in a more economical package than our standard Compact models. T

Features

Key capabilities and advantages

  • Suitable for RF, microwave components, antennas, filters, and wireless communication testing.
  • Ensures precise measurements even on high-performance or low-loss components.
  • Ideal for production testing and high-throughput validation tasks.
  • Easy to integrate into bench setups or portable test environments.
  • Supports SOLT and other calibration techniques to maintain accuracy.
  • Provides powerful visualization, analysis tools, and easy report generation.
  • Seamlessly integrates into automated test systems for R&D or manufacturing.
  • A practical solution for engineers needing stable 9 GHz VNA performance at a competitive cost.

Specifications

Technical specifications and parameters

Frequency Range 100 kHz to 9 GHz
Measured Parameters S11, S21, S12, S22
Sweep Types Linear frequency, log frequency, segment, power sweep
Dynamic Range >130 dB typ. (10 Hz IF BW)
Measurement Speed 25 με
Output Power Adjustment Range -50 dBm to +5 dBm
Number of Measurement Points Up to 500,001
