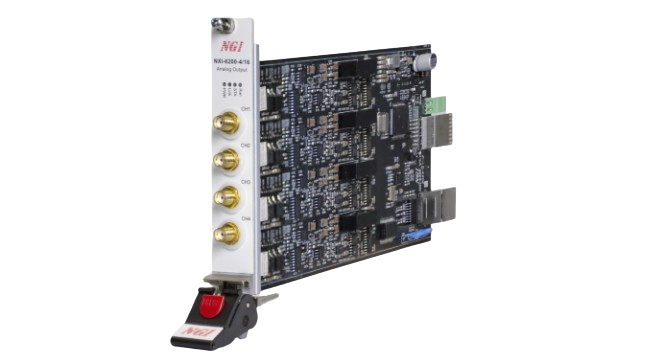

Analog Output Card

NXI-6200-4/16 Series

NGI

NXI-6200-4/16 is a 16-bit 4-channel analogue output module. The output specification can be selected from 0~10V, -10V~+10V, 0~20mA, 4~20mA, and the output voltage accuracy is as high as 0.01%+0.01% F.S. NXI-6200-4/16 can be used in NXI modular instrumentation measurement and control chassis, also can be used separately, widely used in the calibration and testing of various acquisition and measurement systems and the simulation of various sensor signals.

Features

Key capabilities and advantages

Analog voltage output specification: 0~10V, -10V~+10V.
Analog current output specification: 0~20mA, 4~20mA.
Support 2 channel analogue output, each channel isolated.
Output resolution: 16 bits.
Voltage accuracy up to 0.01% + 0.01% F.S.
Current accuracy: 0.05%+2.5μA.
Support independent configuration of voltage/current for each channel.
Single card with single slot, applicable to NXI-F1000 chassis or independent use.
Combined with the NXI-F1000 chassis, external triggering can be realized.
Support Modbus-RTU, SCPI protocols.
Support 12VDC power supply input, LAN communication for individual control.
