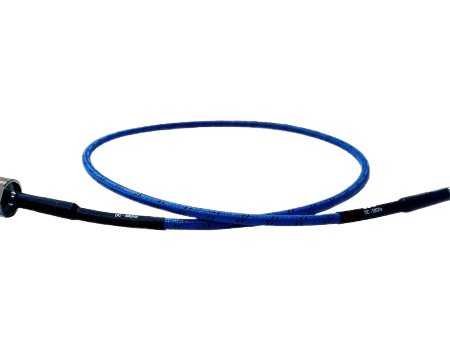

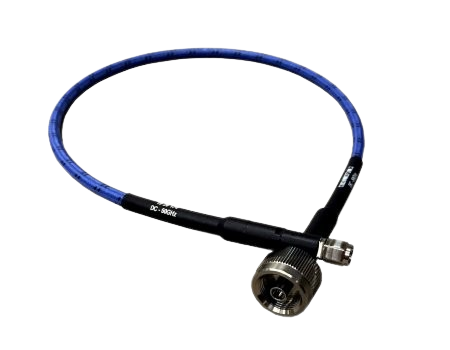

C5024NMDF24M 2.4 NMD Female and 2.4 mm Male Test Cable

Calibration Kits & Accessories

C5024NMDF24M

Product Description

The C5024NMDF24M test cable is designed to support CMT’s line of vector network analyzers. It provides a precision 50 Ω coaxial connection between a 2.4 NMD female connector and a 2.4 mm male connector, supporting RF applications up to 50 GHz — making it suitable for high-frequency measurements and calibration setups.

C5024NMDF24M 2.4 NMD Female and 2.4 mm Male Test Cable - PT. Sumber Instrumindo

Key Features

No	Feature
1	Precision 50 Ω coaxial interface for accurate VNA / RF connectivity.
2	Supports high-frequency operation up to 50 GHz — suitable for microwave and millimeter-wave testing.
3	Flexible cable with defined bending radii (static/dynamic) — allows practical handling in lab or test setups
4	Durable connectors rated for ~ 5000 mating cycles, good for repeated use.

Technical Specifications

Specification	Value
Connector type	2.4 NMD Female ↔ 2.4 mm Male
Impedance	50 Ω
Available lengths	2 ft, 3 ft (or up to 5 ft depending on variant)
Frequency Range	DC – 50 GHz
Minimum dynamic bending radius	50 mm
Minimum static bending radius	25 mm
Connector life (cycles)	approx. 5000 mating cycles
