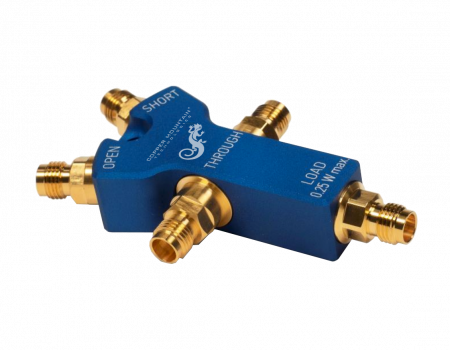

| No | Feature |
|---|---|
| 1 | Very wide frequency coverage up to 50 GHz → suitable for high-end VNA calibration. |
| 2 | Precise phase control, even at very high frequencies. |
| 3 | Low insertion loss for Thru standard → supports high-accuracy measurements. |
| 4 | Durable design with specified torque and high mating cycle tolerance. |
| Specification | Value |
|---|---|
| Frequency range | DC – 50 GHz |
| Impedance | 50 Ω |
| Phase deviation (Open) | DC–10 GHz: ≤ 2.5° / 10–26.5 GHz: ≤ 4.5° / 26.5–50 GHz: ≤ 5° |
| Short phase deviation | DC–10 GHz: ≤ 2.0° / 10–26.5 GHz: ≤ 3.5° / 26.5–50 GHz: ≤ 4.5° |
| Load return loss | DC–4 GHz: > 38 dB / 4–10 GHz: > 32 dB / 10–26.5 GHz: > 27 dB / 26.5–50 GHz: > 23 dB |
| Maximum power | 0.25 W |
| Thru insertion loss | max 0.06 dB × √f(GHz) |
| Thru electrical delay | ~212.814 ps |
| Torque | max 1.65 Nm, recommended 0.90 Nm |
