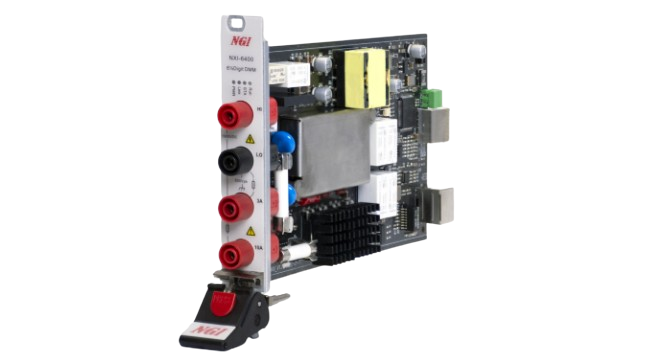

DC Voltage and Current Measurement Card

NXI-6400-1000/10 Series

NGI

NXI-6400-1000/10 is a high accuracy DC voltage and current measurement module, its measurement accuracy and range are comparable to mainstream 6½ digit multimeters on the market. NXI-6400-1000/10 supports nA level micro-current measurement, it is suitable for consumer electronics, automotive electronics, semiconductors, research&education and other industries.

Features

Key capabilities and advantages

Up to 6½ bit resolution.
DCV Range: 100mV/1V/10V/100V/1000V.
DCI Range: 1μA/10μA/100μA/1mA/10mA/100mA/1A/3A/10A.
Maximum Reading Rate: 5000 readings/second.
Single module with single slot, applicable to NXI-F1000 chassis or independent use.
Support 12V DC power supply input, LAN communication for individual control.
Support Modbus-RTU, SCPI protocols.
