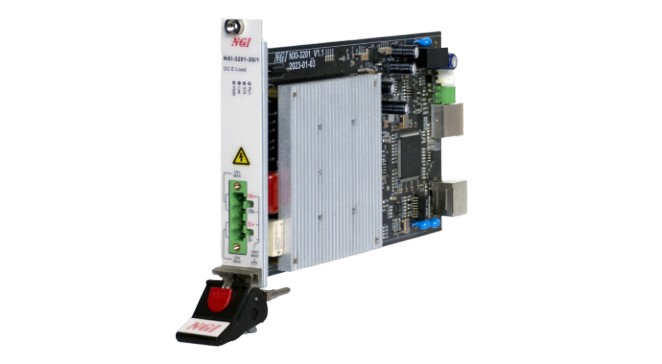

Full-Featured Modular Programmable DC Electronic Load

NGI

NXI-3201 Series

Product Description

NXI-3201 series is a high-precision, highly integrated, full-featured modular programmable DC electronic load developed by NGI. It adopts NXI architecture, designed for integration applications, supports CC/CV/CP/CR/LED and other operating modes, with OCP/OVP/OPP/ OTP and other multiple protection functions. NXI-3201 series can be widely used in many fields, such as low power switching power supply, DC/DC converter, LED power supply, automotive electronics, research and education, etc.

Full-Featured Modular Programmable DC Electronic Load - PT. Sumber Instrumindo

Key Features

No	Feature
1	Power range: 20W/25W/50W.
2	Voltage range: 0~20V/0~60V/0~100V.
3	Current range: 0~1A/0~5A/0~10A.
4	Dual measurement range for CC, CV, CP, CR mode.
5	Convenient for multi-channel power test with synchronous load.
6	Multiple test mode: CC/CV/CR/CP/CCD/CVD/CPD/CRD/LED.
7	Editable rise and fall slew rate for voltage and current; Adjustable circuit loop response speed.
8	OCP/OPP/short circuit simulation.
9	Sequence(SEQ) test, auto test, Von/Voff test mode.
10	With single/double slots, applicable to NXI-F1000 chassis.
11	12VDC power supply, LAN communication for individual control.
12	Supporting SCPI/Modbus-RTU protocol and external trigger.
