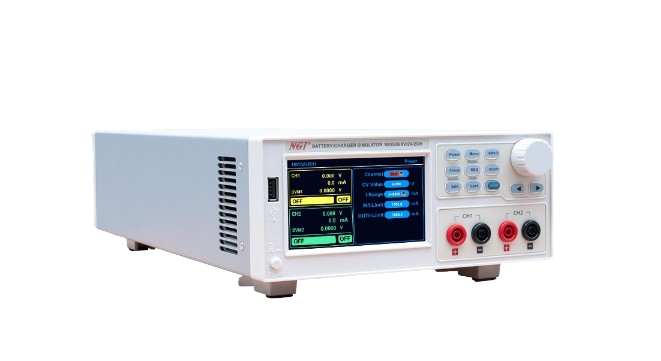

N8352 series is specially designed for the R&D and test of portable battery-operated products, such as Bluetooth headsets, mobiles, AR/VR smart terminals, electric tools, etc. The current flows in both directions and can be used as either a power supply or a load. N8352 is easy to use with touch screen and UI design. The output features are comparable to actual batteries, with fast dynamic response, no overshoot in voltage rise and fall, and stable waveform. The current accuracy is up to μA level, which can test the static power consumption. N8352 is equipped with 4.3 inch touch screen and is with built-in 2-channel DVM, which can be widely used in consumer electronics testing.
Key capabilities and advantages
Technical specifications and parameters
| Channel Number | 2 |
| Voltage | 6V to 20V |
| Current | 1A to 5A |
| Power | 6W to 75W |
| Accuracy | Voltage≤0.01%+1mV/Current≤1μA+2d |
| Resolution | 0.1mV / 0.1μA |
| Communication Interface | LAN/RS232 |
| Quadrants | Two |
