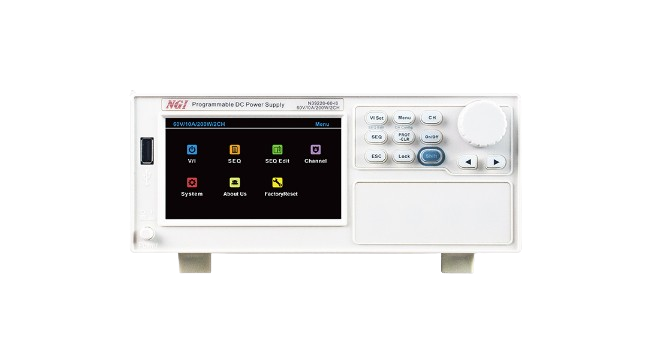

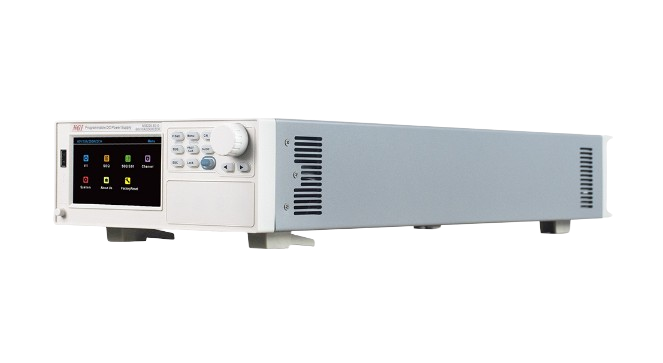

High-accuracy Dual-channel Programmable DC Power Supply

NGI

N39200 Series

Product Description

N39200 series is a high-accuracy & dual-channel programmable DC power supply, available for benchtop use. N39200 standalone supports 2 channels output, with each channel isolated. Both local operation on front panel and remote control on a computer are supported. N39200 can be widely used in lab test, system integration test, production aging line, etc.

High-accuracy Dual-channel Programmable DC Power Supply - PT. Sumber Instrumindo

Key Features

No	Feature
1	High definition touch screen.
2	User-friendly interface.
3	LAN port and RS232 interface.
4	CC&CV priority function.
5	Multiple protections OVP, OCP, OTP and short circuit.
6	Dual LAN ports design.
7	Single device with 2 channels, each channel isolated.

Technical Specifications

Specification	Value
Channel Number	2
Voltage Range	60V/150V
Current Range	4A/8A/10A/20A
Power Range	200W/400W/600W
Accuracy	Voltage≤0.05%+0.1%F.S. / Current≤0.1%+0.1%F.S.
Resolution	1mV / 1mA to 10mV / 1mA
Communication Interface	LAN/RS232
Size	2/2U
