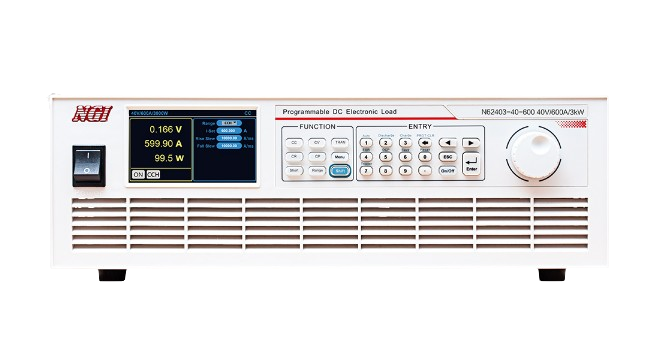

Low Voltage High Current DC Electronic Load

N62400 Series

NGI

N62400 series is developed based on NGI's years of experience in testing for fuel cell. It is with high accuracy, high reliability and high cost performance. N62400 can load high current under ultra-low voltage. The minimum operating voltage when loading 1200A can be low to 0.2V. It is designed in a 19 inch 3U chassis, which is available for benchtop use or installation in 19 inch rack.

Features

Key capabilities and advantages

Min. operating voltage as low as 0.2V when loading current 1200A.
Stable and reliable CR/CP function supported by hardware.
Operation mode CC, CV, CP, CR
Stable and reliable CR/CP function supported by hardware.
Editable rise and fall slew rate.
Supporting LAN/RS232/CAN communication.
Supporting charge & discharge test, OCP test.
Programmable sequence test function(SEQ), up to 100 groups sequence files, up to 50 steps per file.
Analog programming interface(APG), current monitoring interface, remote/local trigger function.
Short-circuit simulation.
Editable Von/Voff function.
Built-in ESR test function (Optional).

Specifications

Technical specifications and parameters

Channel Number	1
Voltage	40V
Current Range	0-1200A
Power	1,000W - 5,000W
Accuracy	Voltage≤0.05%+0.05%F.S./Current≤0.1%+0.1%F.S.
Resolution	0.1mV/1mA to 0.1mV/10mA
Communication Interface	LAN/RS232/CAN
Size	3U / 6U
