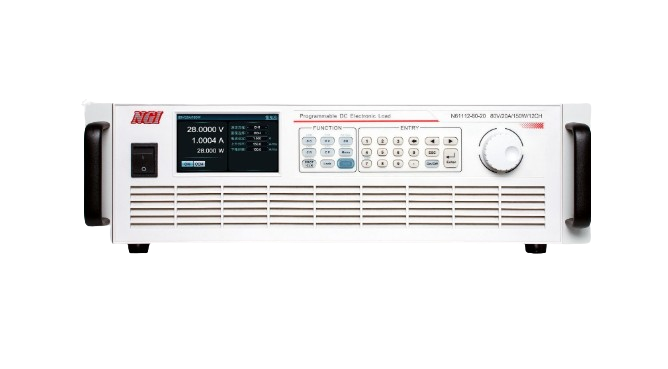

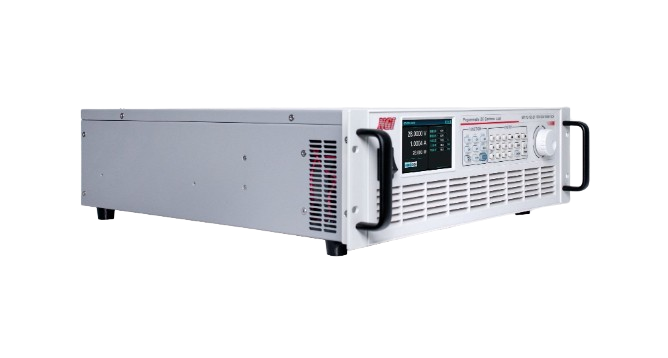

Multi-channel High Performance DC Electronic Load

NGI
N61100 Series

Product Description

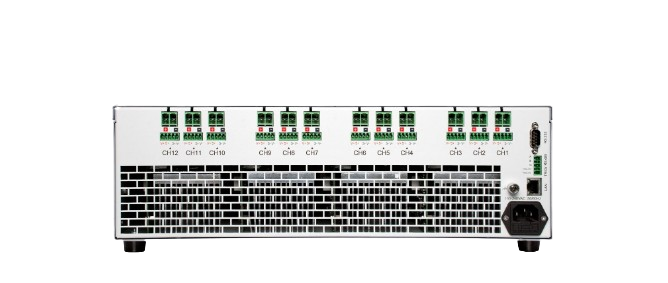

N61100 series is a multi-channel DC programmable electronic load, with high reliability, high integration, high cost performance and full features. It is tailored for integrated applications, featuring in high communication response speed and high stability.N61100 series is with 19-inch 3U size, up to 12 channels, and supports LAN, RS232, and RS485 communication interfaces. In most integrated applications, N61100 series can replace low-power standalone electronic loads and save much cost for users.

Key Features

No Feature
1 High integration, single device up to 12 channels.
2 Dual measurement range for CC, CV, CP, CR mode.
3 8 kinds of test mode (CC,CV,CR,CP,CV+CC,CV+CR,CR+CC,CP+CC).
4 Load effect test, dynamic sweep, time measurement, discharge test.
5 Supporting LED light simulation function.
6 OCP/OVP/OPP test mode.
7 Sequence(SEQ) test, auto test, Von/Voff, short circuit simulation.
8 Communication interfaces: LAN, RS232, RS485.

Technical Specifications

Specification Value
Channel Number 6/12
Voltage Range 0~80V/0~150V/0~600V
Current Range 0~120A
Power 150W to 300W
Accuracy voltage0.025%+0.025%F.S./current0.05%+0.05%F.S.
Resolution 10uV/10μA to 0.1mV/1μA
Communication Interface LAN/RS485/RS232
Size 3U
