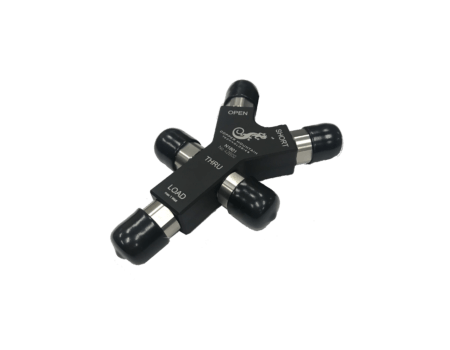

| No | Feature |
|---|---|
| 1 | Wide 18 GHz calibration range, useful for mid-band VNAs. |
| 2 | Well-characterized phase error and return loss → precise SOLT calibration. |
| 3 | Robust mechanical design with durable N-type connectors. |
| 4 | Thru delay known → helpful for de-embedding or port extension. |
| Specification | Value |
|---|---|
| Frequency range | DC – 18 GHz |
| Impedance | 50 Ω |
| MSRP | US$ 1,645 |
| Mechanical | Mating cycles > 500, maximum torque 1.70 Nm, recommended torque 1.10 Nm, gauge 5.22 mm ‒ 5.26 mm. |
| Short phase error | DC–6 GHz: < 1.5° / 6–9 GHz: < 2° / 9–18 GHz: < 3.5° |
| Load return loss | DC–6 GHz: > 42 dB / 6–9 GHz: > 36 dB / 9–18 GHz: > 30 dB |
| Thru offset delay | ~152.105 ps |
| Operating/storage temperature | 20°C–26°C / –40°C–+85°C. |
