- N-type male connector variant, useful when matching certain VNA port gender.
- Good phase stability and return loss across the 18 GHz bandwidth.
- Sturdy mechanical design for reliable calibration cycles.

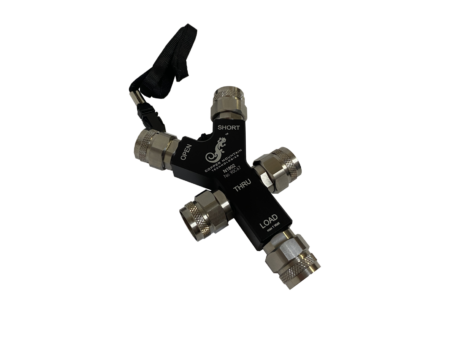

This is a mechanical calibration kit for 50 Ω VNAs, using N-type male connectors, rated up to 18 GHz. It complements or serves as an alternative to N1801, depending on connector orientation needed. Copper Mountain Technologies
Key capabilities and advantages
Technical specifications and parameters
| Frequency range | DC – 18 GHz |
| Impedance | 50 Ω |
| Mechanical | Mating cycles > 500, maximum torque 1.70 Nm, recommended torque 1.10 Nm. |
| Short phase error | DC–6 GHz: < 1.5° / 6–9 GHz: < 2° / 9–18 GHz: < 2.5° |
| Load return loss | DC–6 GHz: > 42 dB / 6–9 GHz: > 36 dB / 9–18 GHz: > 30 dB |
| Thru offset delay | ~73.384 ps |
| Operating temp | 20°C–26°C; Storage: –40°C to +85°C. |
