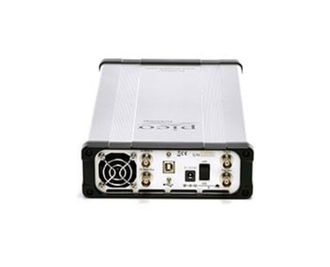

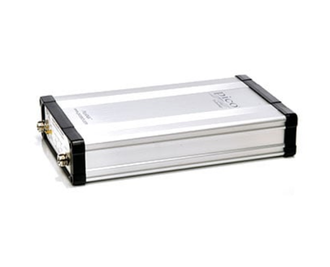

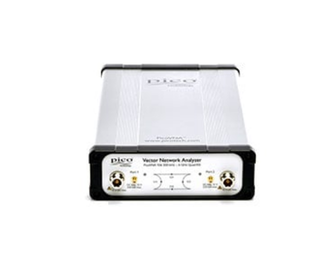

PicoVNA® Vector Network Analyzers

PicoVNA Series is a professional Vector Network Analyzer (VNA) that delivers high performance in a compact and portable design. Available in models with frequency ranges up to 6 GHz and 8.5 GHz, PicoVNA provides fast, accurate, and reliable RF and microwave measurements for both laboratory and field applications. The PicoVNA Series features a frequency range of up to 6 GHz or 8.5 GHz and utilizes a Quad-RX four-receiver architecture to enhance measurement accuracy. It offers a dynamic range of up to 124 dB and measurement speeds of up to 5,500 dual-port S-parameters per second. The analyzer supports comprehensive S-parameter measurements (S11, S21, S12, and S22) and includes Time Domain Analysis and impedance transformation capabilities. Controlled via USB through the intuitive PicoVNA 5 software, it supports multiple calibration methods, including SOLT, TRL, TRM, and E-Cal. Its compact and lightweight design makes it suitable for both laboratory environments and on-site field testing.
