Rental Exclusive: C1220 2-Port 20 GHz Vector Network Analyzer

C1220

Rent A VNA

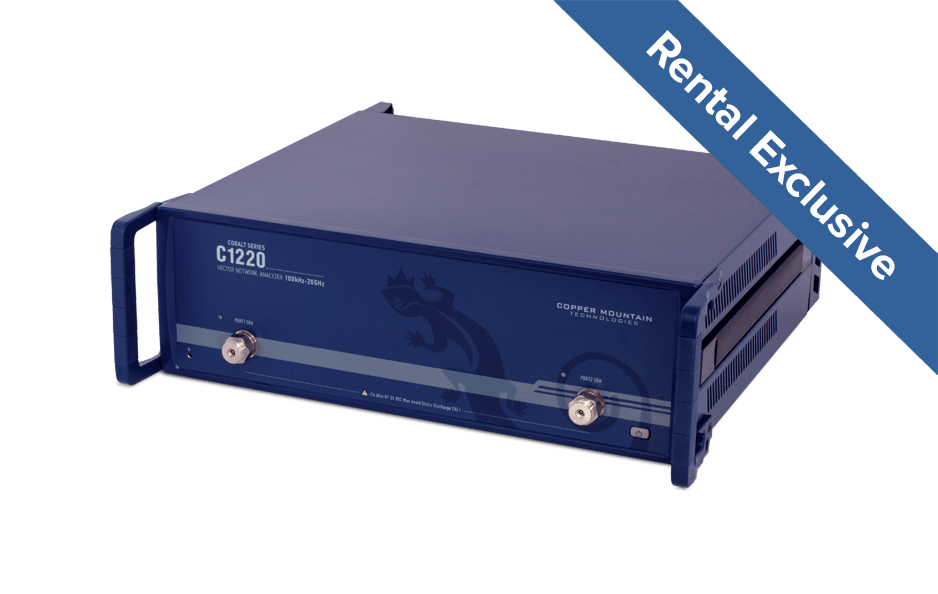

The C1220 is a “full-rack” 2-port 50 Ω VNA supporting frequencies up to 20 GHz. It offers high dynamic range and sweep speed, and can be integrated into production test systems via the Manufacturing Test plugin. As of May 31, 2025, this model is “Rental Exclusive.”

Features

Key capabilities and advantages

Full 2-port S-parameter measurements up to 20 GHz — suitable for microwave components, filters, high-frequency amplifiers, on-wafer devices, etc.
Standard software features: linear/log sweeps, power sweeps, time-domain & gating conversion, frequency-offset mode, fixture simulation (embedding/de-embedding), multi-channel & trace support.
Integration-ready for lab or production: module connects via USB and can be controlled by PC/server, and supports CMT’s Manufacturing Test plugin for test benches.

Specifications

Technical specifications and parameters

Frequency range	100 kHz – 20.0 GHz
Measured parameters	S₁₁, S₂₁, S₁₂, S₂₂
Dynamic range	~133 dB (10 Hz IF BW)
Output power adjustment range	–60 dBm to +10 dBm
Measurement time per point	< 12 µs
Number of measurement points per sweep	up to 500,001
Frequency resolution	1 Hz; full CW frequency accuracy: ± 2·10⁻⁶
