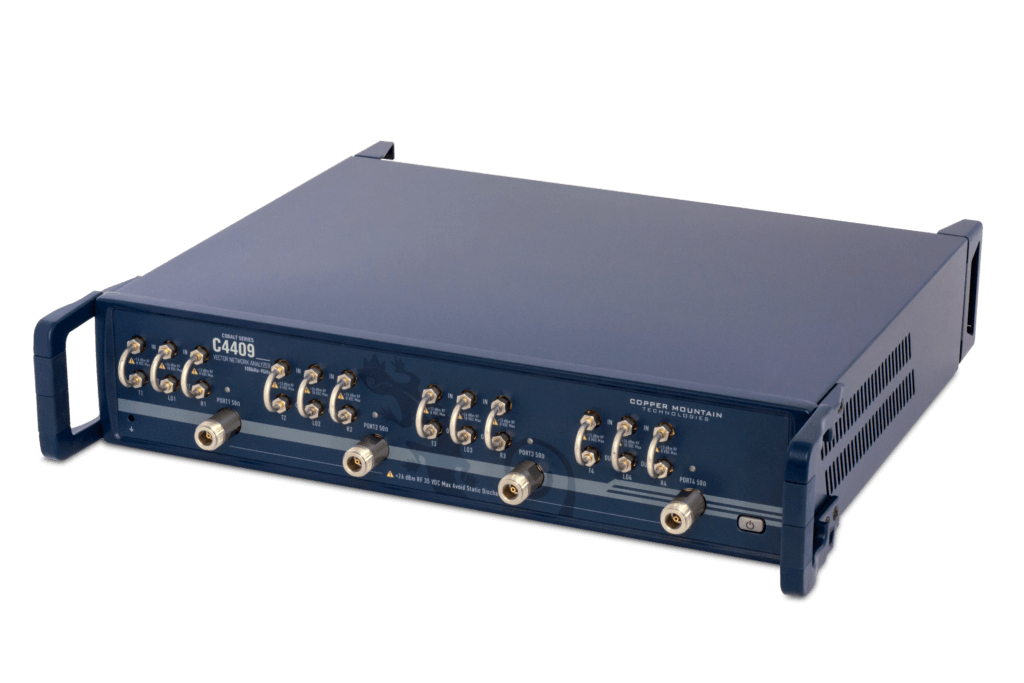

Rental Exclusive: C4409 4-Port 9 GHz Vector Network Analyzer, Frequency-Extension Compatible

C4409

Rent A VNA

The C4409 is a 4-port, 50 Ω VNA designed for multi-port testing, with the added capability of frequency-extension compatibility. This makes it suitable for use with external frequency-extender modules to test at frequencies beyond the native 9 GHz range. The model is “Rental Exclusive.”

Features

Key capabilities and advantages

Full 4-port S-parameter measurement — useful for multi-port RF modules or systems.
Frequency-extension compatibility — allows testing at higher frequencies when connected with external extender modules, expanding application range beyond native 9 GHz.
Standard software features: sweeps (linear/log), power sweeps, time-domain & gating, frequency-offset mode, fixture simulation, multi-channel & trace support.

Specifications

Technical specifications and parameters

Frequency range (native)	100 kHz – 9.0 GHz
Measured parameters	all S-parameters S₁₁ through S₄₄
Dynamic range	~152 dB typical (10 Hz IF BW)
Output power adjustment range	–60 dBm to +15 dBm (common spec among Cobalt series)
Frequency resolution	1 Hz; number of measurement points per sweep: up to 500,001
