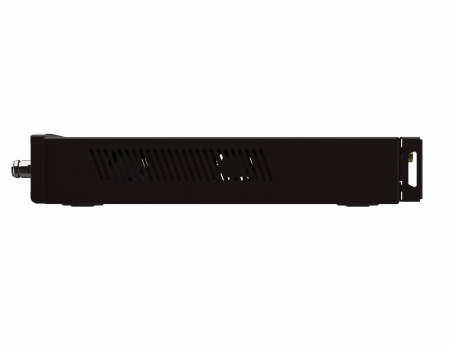

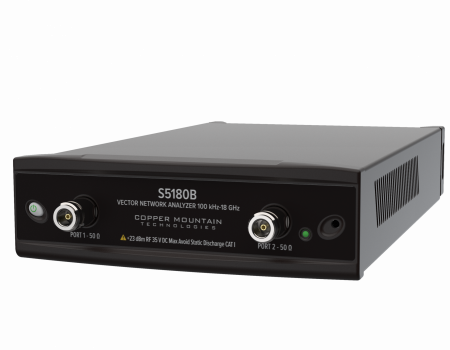

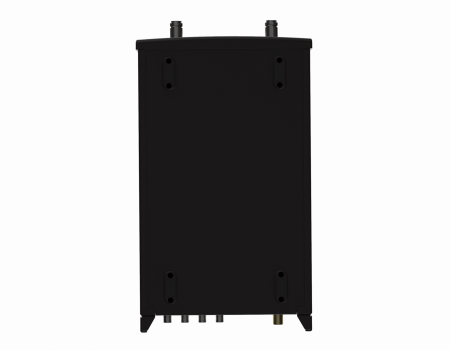

S5180B 2-Port 18 GHz Vector Network Analyzer

S5180B

Rent A VNA

S5180B is a high-performance 2-port Compact VNA covering DC (100 kHz) up to 18 GHz. It offers standard VNA capabilities plus — uniquely among CMT Compact VNAs — built-in Pulse Modulation Generation/Measurement capabilities (as optional software add-on).

Features

Key capabilities and advantages

Full 2-port S-parameter VNA up to 18 GHz — suitable for antennas, filters, amplifiers, cables, on-wafer devices, materials, etc.
Supports standard sweeps, power sweeps, time-domain & gating conversion, frequency offset mode, fixture simulation.
Pulse modulation generation and measurement — enabling pulse-mode testing (e.g. pulsed amplifiers).
Flexible configuration: 16 logical channels with up to 16 traces each.
Automation ready for LabVIEW, Python, MATLAB, .NET, and production test benches.

Specifications

Technical specifications and parameters

Frequency Range	100 kHz – 18 GHz
Test Port Connectors	Type-N female
Output Power Adjustment Range	–45 dBm to +10 dBm
Dynamic Range	~130 dB (10 Hz IF BW)
Measurement Time	24 µs per point
Measurement Points	up to 200,001
