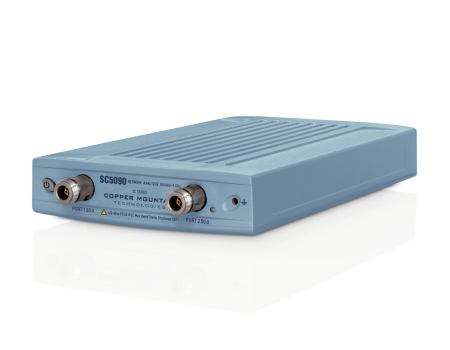

SC5090 2-Port 9 GHz Vector Network Analyzer

SC5090

Rent A VNA

The SC5090 is a 2-port 9.0 GHz Compact VNA offering excellent dynamic range, fast measurement speed, and relatively high output power in a compact package — with the full standard software feature set included. It connects via USB to a PC and uses the CMT S2 software.

Features

Key capabilities and advantages

Full 2-port S-parameter capabilities — S₁₁, S₂₁, S₁₂, S₂₂ measurement up to 9 GHz.
Comprehensive standard feature set: linear/log sweeps, power sweeps, time-domain & gating conversion, frequency offset mode, fixture simulation, multi-channel/multi-trace.
High dynamic range and high output power.
Fast measurement speed — efficient for dense sweeps and production workflows.
Good balance of performance, versatility, and compactness for telecom, aerospace, IoT, and general RF work.

Specifications

Technical specifications and parameters

Impedance	50 Ω
Number of Ports	2 ports, type-N female
Frequency Range	300 kHz – 9 GHz
Measurement Points	2 to 500,001
Frequency Resolution	1 Hz
Dynamic Range	140 dB (10 Hz IF BW)
Output Power Adjustment	–45 dBm to +15 dBm
Measurement Speed	16 µs per point
Effective System Directivity	46 dB
