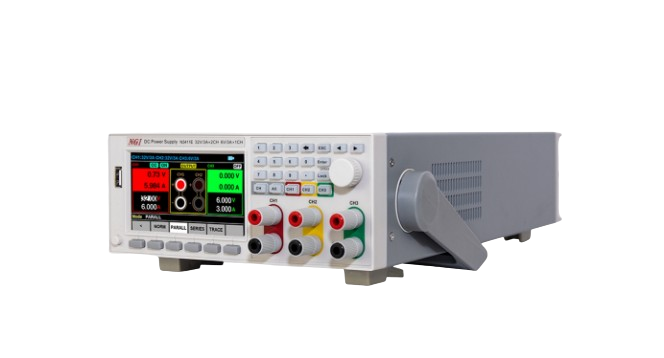

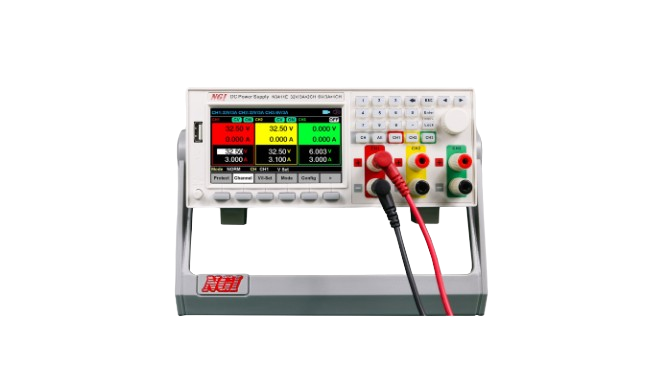

Triple-channel Programmable DC Power Supply

N3410 Series
NGI

N3410 series is a triple-channel programmable DC power supply with high performance and high reliability. N3410 is with half 19 inch 2U size, integrating three independent output channels, and supporting both front and rear wiring. It has compact size and elegant appearance. N3410 supports both benchtop application with carrying handle and tilt stand,and supports rack installation for system integration. Test and measurement information is displayed intuitively on the 4.3 inch LCD screen. It provides DVM measurement as an optional function to meet different test demands.

Features

Key capabilities and advantages

  • Supporting series connection to increase voltage.
  • Supporting parallel connection to increase current.
  • 3 channels in a standalone, each channel isolated.
  • Low ripple&noise.
  • High accuracy and resolution, as low as 0.1mV/0.1mA.
  • Dynamic response time less than 1ms.
  • Supporting series, parallel and trace output modes.
  • High accuracy DVM measurement (for N3411P/N3412P/N3413P only).

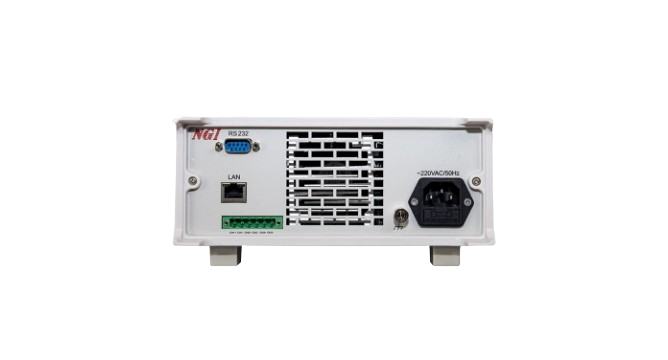

  • Front and rear output terminals.
  • LAN port and RS232 interface.
  • Half 19 inch 2U size with tilt stand.
  • 4.3 inch LCD screen, supporting screenshot via USB port .
  • Sequence(SEQ) test function.
  • Graph for real-time output waveform display.

Specifications

Technical specifications and parameters

Channel Number 3
Voltage Range 6V/32V/60V
Current Range 3A/5
Power 210W/338W
Accuracy Voltage≤0.01%+10mV/Current≤0.05%+5mA
Resolution 0.1mV/0.1mA
Communication Interface LAN/RS232
Size 2U
