Universal Relay Control Module with a Highly Reliable Electromagnetic Relay

NGI

NXI-4201-24 Series

Product Description

NXI-4201-24 is a 24-channel relay control module with a highly reliable electromagnetic relay, and its high power signals capacity up to 24W. The control circuit of NXI-4201-24 is electrically isolated from the switching circuit; Therefore, it can effectively protect the test system and improve the test safety. NXI-4201-24 has a strong loading capacity and good isolation performance, and it can be widely used in various scene that AC/DC voltage and current need to be switched.

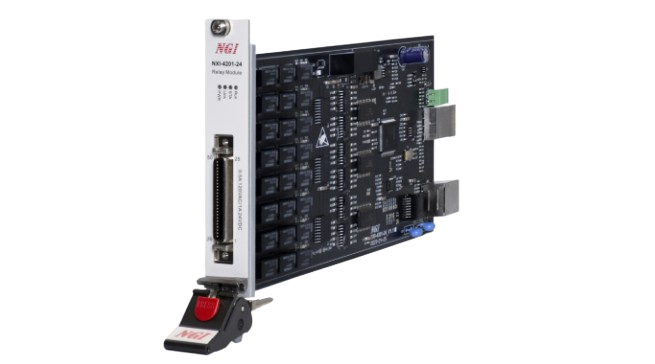

Universal Relay Control Module with a Highly Reliable Electromagnetic Relay - PT. Sumber Instrumindo

Key Features

No	Feature
1	24 channels, support SPST (Single Path Single Throw).
2	Switching Load 0.5A/120VAC,1A/24VDC.
3	Action Time: 10ms (typical).
4	Dielectric Strength: coil-contact 4000V AC.
5	Contact Resistance: 100mΩ.
6	Mechanical life up to 5×10^6 times.
7	Single module with single slot, applicable to NXI-F1000 chassis or independent use.
8	Support 12V DC power supply input, LAN communication for individual control.
9	Support Modbus-RTU, SCPI protocols.
