Waveguide Quick Connect

Product Description

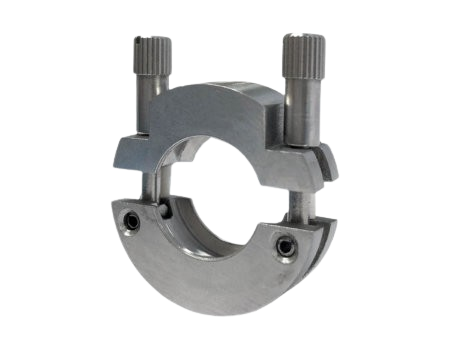

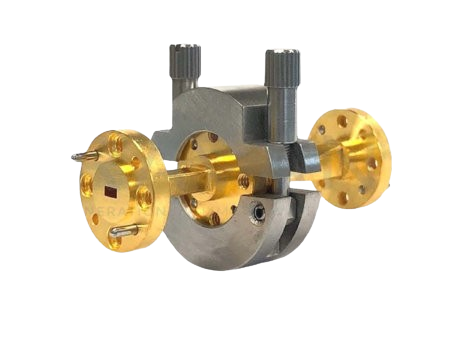

The Waveguide Quick Connect is a mechanical apparatus designed for fast connect and disconnect operations of waveguide flanged systems (for 0.75″ circular flanges). It uses hand-screw clamping to mate two flanges quickly — useful when traditional waveguide screws are impractical (tight spaces, frequent connect/disconnect). It ensures even pressure across the flange interface to reduce signal leakage due to misalignment.
Copper Mountain Technologies
+1

Waveguide Quick Connect Kits - PT. Sumber Instrumindo

Key Features

No	Feature
1	Hand-screw clamping — allows fast flange mating/disconnection without waveguide screws.
2	Enables waveguide connections even in tight spaces where screw-on flanges are hard to access.
3	Provides even pressure across flange faces — helps ensure good RF contact and reduce signal leakage due to misalignment.
4	Designed for repeated connect/disconnect cycles — useful for lab, sub-assembly, or production use where throughput matters.

Technical Specifications

Specification	Value
Supported Flange Types	UG-385/U, UG-387/U, UG-387/U-M (0.75″ circular)
Alternative Flange Model	For 1.125″ circular flanges (UG381/U, UG383/U, UG383/U-M), the model SWH-QC-1125C-R2 is offered.
Impedance (system context)	50 Ω (as per accessory ecosystem)
Material / Construction (per original manufacturer datasheet)	Brass and Stainless Steel (for the quick-connect unit)
Dimensions (quick-connect body)	1.50″ × 1.25″ × 0.44″ (as per original datasheet)
Weight (quick-connect body)	1.3 oz (≈ 37 g) per datasheet for 0.75″ flange version.
