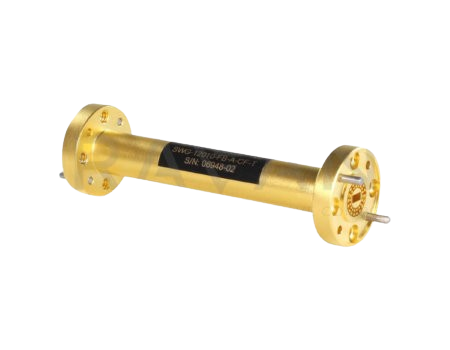

The WR-08 Proxi-Flange™ is an Eravant-trademarked, patent-pending, F-band contactless flange straight waveguide section with WR-08 waveguides and UG-387/U-M precision Anti-Cocking flanges. The special flange uses an array of small pin-like structures to realize RF choking, thereby eliminating issues of poor return loss and high insertion loss due to imperfect flange contact. By removing the need for screws, Proxi-Flange ensures improved durability, measurement consistency, and test repeatability. When used with a Wave-Glide™ fixture, WR-08 Proxi-Flange is ideal for automatic test lines and production environments where frequent connect/disconnect occurs.
Key capabilities and advantages
Technical specifications and parameters
| Frequency Range | 90–140 GHz |
| Impedance | 50 Ohm |
| Waveguide / Flange | WR-08 waveguide with UG-387/U-M Anti-Cocking flange |
| Insertion Length (for model STQ-WG-08025-FB-CF) | 2.5″ |
| Other RF specs — insertion/return loss, power handling | Not publicly specified on product page |
