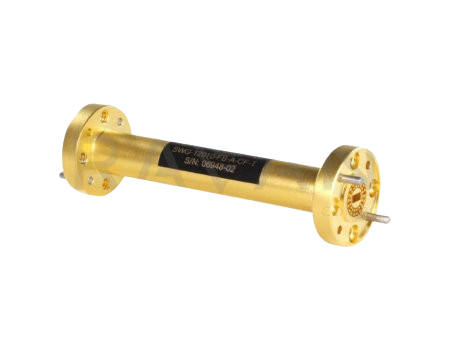

The WR-10 Proxi-Flange™ is an E-/W-band contactless flange straight waveguide section with WR-10 waveguides and precision flange interface. As with other Proxi-Flange models, it uses a pin-array flange to implement RF choking, avoiding the typical issues caused by imperfect flange contact (poor return loss, high insertion loss). The screwless design improves measurement consistency, repeatability, and lifetime of the assembly — especially beneficial for frequent connections/disconnections in test or production setups.
Key capabilities and advantages
Technical specifications and parameters
| Frequency Range | 75–110 GHz |
| Impedance | 50 Ohm |
| Waveguide Designation | WR-10 (WG-27 typically), with IEEE 1785-2a precision-style flange. |
| Further numeric specs — insertion/return loss, power handling, insertion length | Not publicly specified on product page |
