Putting a Flying Probe Exactly where you need it on large PCAs

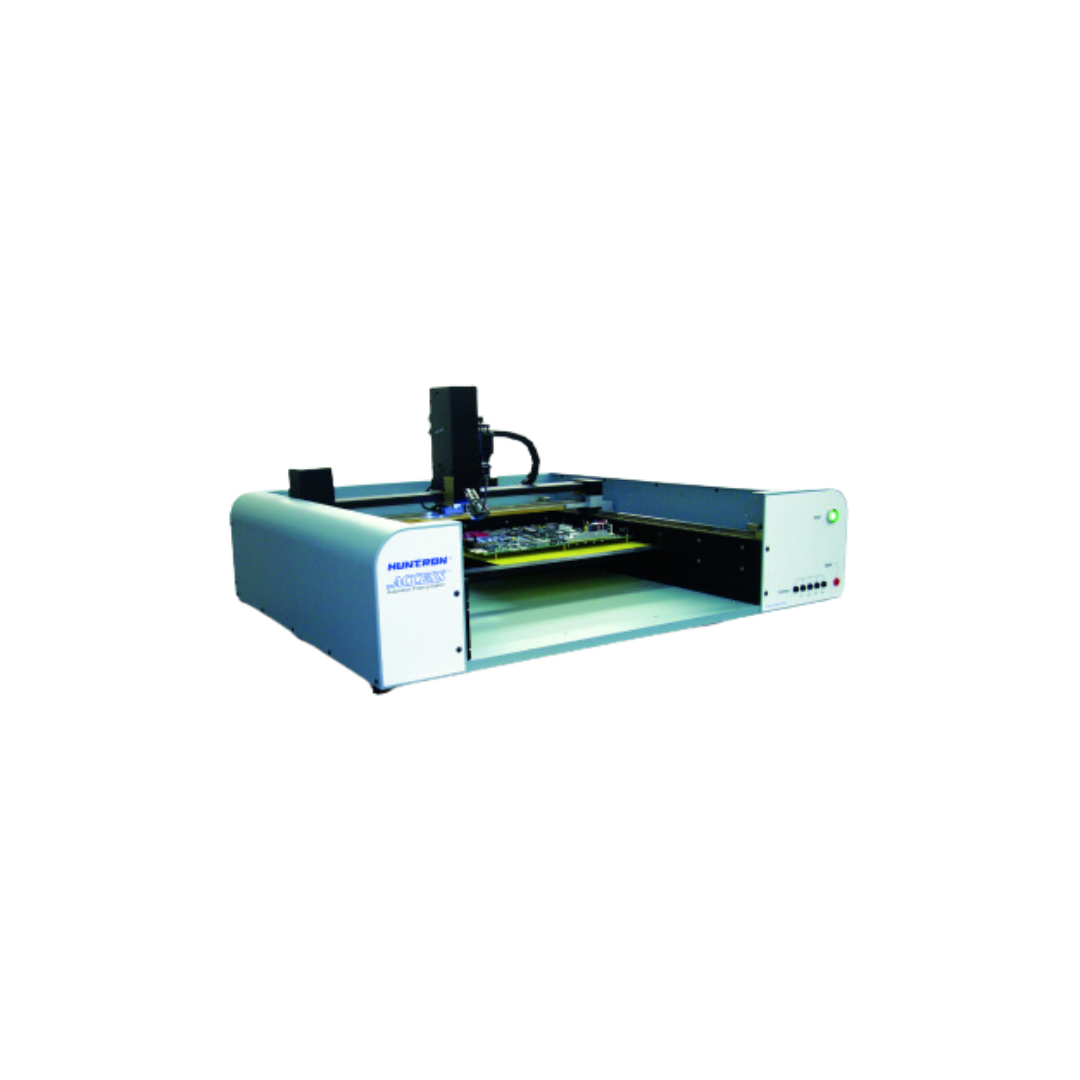

The Huntron Access 2 Prober is used to automate the testing of printed circuit assemblies (PCA) that would otherwise have to be tested by hand...
The Access 2 Prober is designed to accurately access test points on medium to large-sized PCAs
The open architecture design allows for flexible integration with various test methods, making it suitable for automated probing
The DH2 can work with Huntron Tracker products and conventional test instruments, allowing a plug-and-play approach to automating manual probing applications.
▪ Cost effective, desktop robotic platform
▪ Design, manufacturing and service depot applications
▪ Increase operator productivity
▪ 10:1 or better probing speed when compared to manual methods
▪ Save on labor costs
Features
Specifications
● Single head flying probe tester interface in a desktop-sized platform
● Sized for small to medium PCAs
● Exceptional accuracy for precise probing of PCAs
● Durable design for many years of service
● Can be configured with a Huntron Tracker® inside
● Automate tests using other mainline test instruments with optional SDK packages
● Number of Test Heads: 1
● Maximum Board Under Test Size: 22" x 23" (56cm x 58cm)
● Maximum Probing Area: 18.2" x 22.4" (46.2cm x 56.9cm)
● Maximum Board Component Height: 4" (10cm)
● Dimensions: 36" W x 15.7" H x 29" D (91.44cm W x 39.88cm H x 73.66cm D)
● Accuracy and Resolution: 0.0007874" (±20 microns) at 0.0003937" (10 microns) minimum
