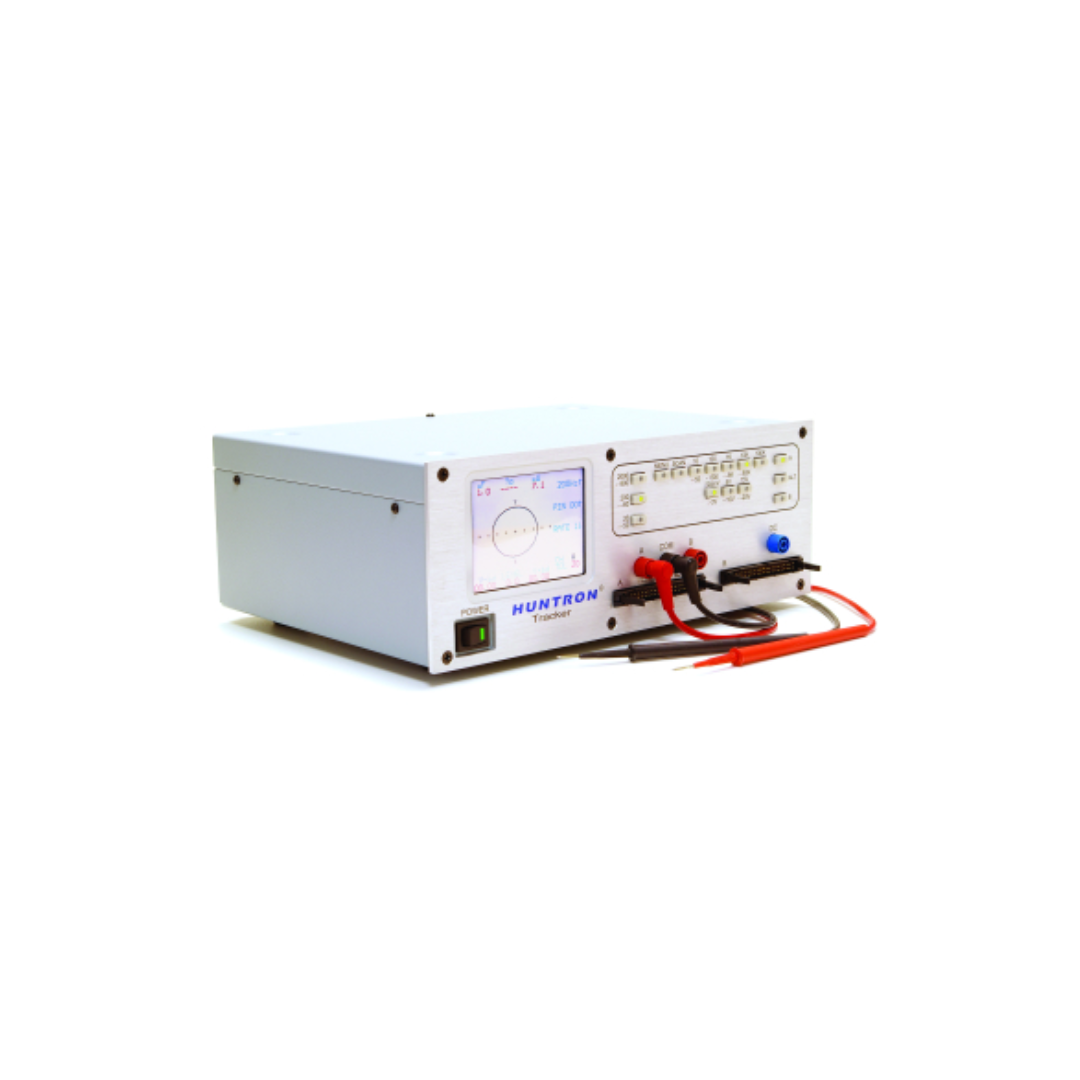

The Huntron Tracker 2800 with Cable Interface Capabilities
The Huntron Tracker 2800S is designed to complement conventional test instruments in the debug and troubleshooting process. Using the proven power-off test method known as Analog Signature Analysis it eliminates the risk of further circuit damage, which often occurs when power is applied.
The Huntron Tracker 2800S is suited for today's varied signal circuit cards where Analog and Digital are mixed together. The Tracker 2800S features variable range parameters resulting in over 100 combinations of voltage, source resistance and frequency. The 2800S is a great off-line support tool for the automated Huntron Access Prober diagnostic systems.
Features
Specifications
● Optional Software Control using Huntron Workstation
● Enhanced Range Selections
● Full Screen Signature Zoom
● Color Touch Screen controls
● Huntron SigAssist® built-in
● Built-in DC Voltage Source for testing gated devices (i.e., SCRs, relays, etc.)
● Up to 40 pin scanning with the Tracker 2800S
● Number of Voltages plus values: 6 voltages: 200mV, 3V, 5V, 10V, 15V, 20V
● Number of Resistances plus values: 9 resistances: 10Ω, 50Ω, 100Ω, 500Ω, 1kΩ, 5kΩ, 10kΩ, 50kΩ, and 100kΩ
● Number of Frequencies plus values: 6 frequencies: 20Hz, 50Hz, 60Hz, 200Hz, 500Hz, and 2kHz
● Range Selection: Manual or use Auto Scan; Optional Software control
● Front Panel Connections: Banana jacks for A/B Test channels and Common;
A and B 40 pin IDC connectors for cable-based scanning (i.e., interface to PCB connectors)
