NGI

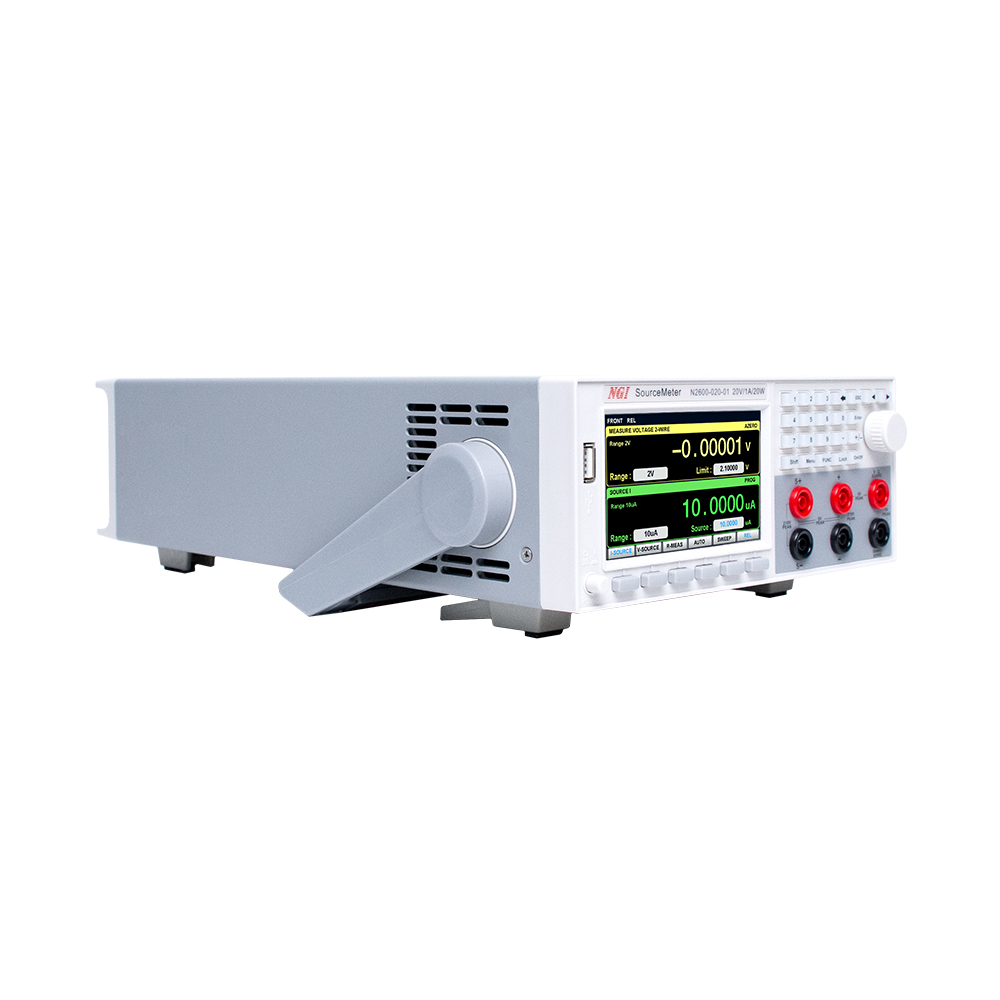

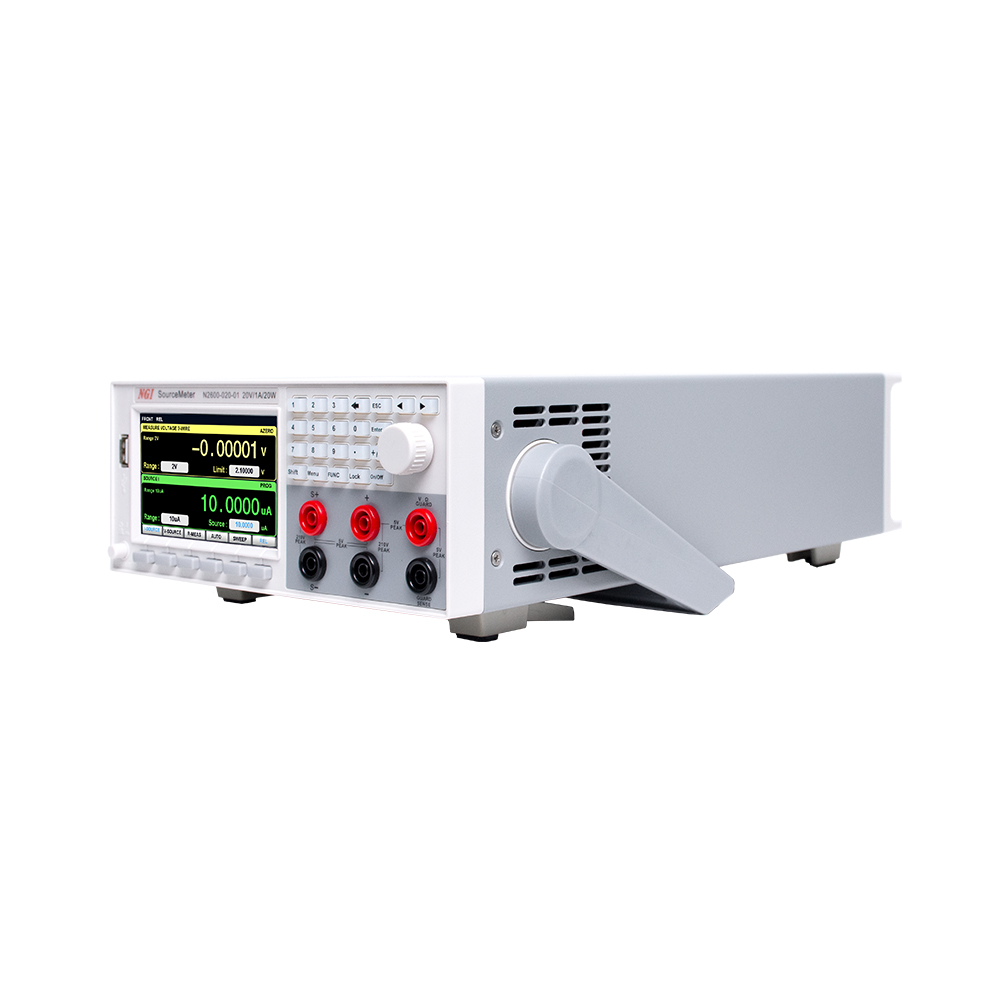

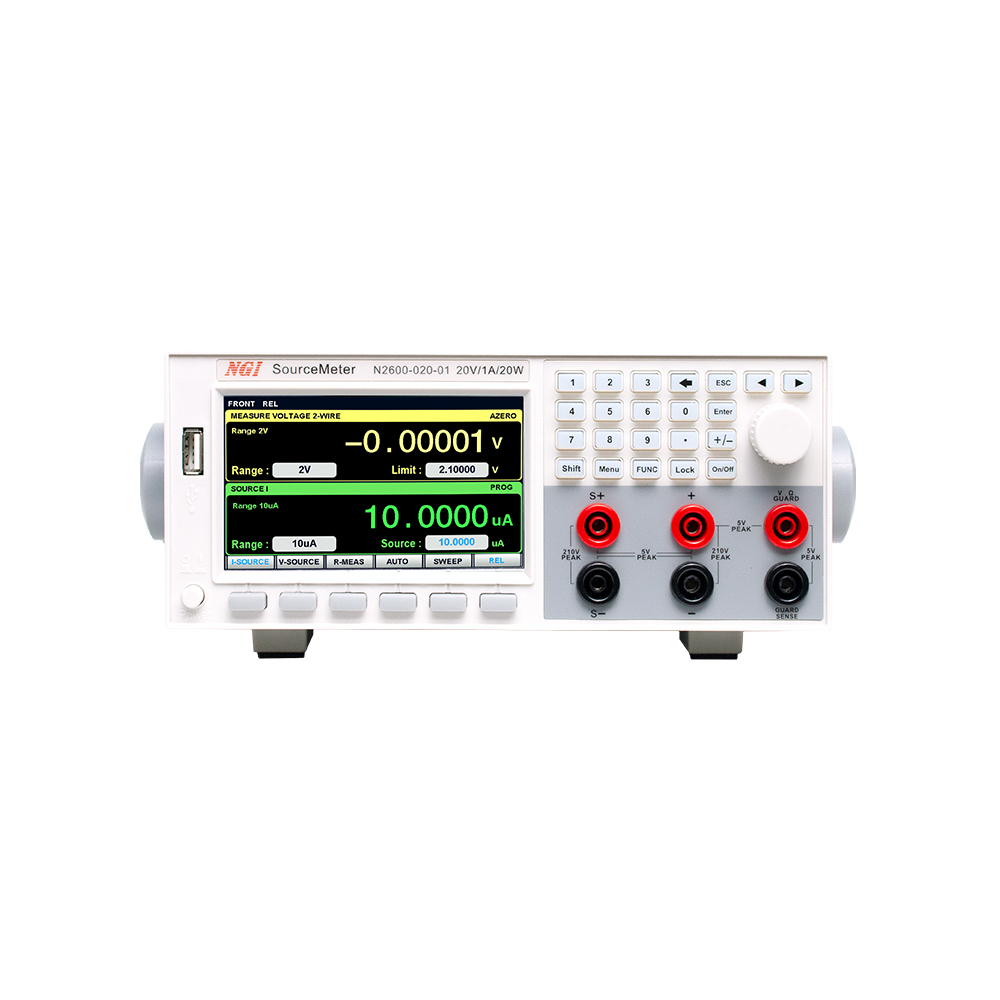

N2600 Series

High Precision Source Meter

N2600 series is a digital source meter developed by NGI, which closely combines the functions of high-accuracy source and high-accuracy measurement. It integrates 5 functions (voltage source, current source, I/V/R measurement) in one instrument. The measurement range covers 200V to 1μV, 10A to 10pA, 200MΩ to 10μΩ. The maximum pulse output current can be up to 10A. The measurement resolution is 6½ digits. The basic accuracy can reach 100μV, 600pA, 300μΩ.N2600 series has built-in constant voltage source, constant current source, resistance measurement, sweep mode, signal generator, synchronous trigger, function calculator, etc., and provides PC application software for free. It can be widely used in characteristic analysis and production testing of components and modules in communication, semiconductor,computer, automotive and medical industries.

Features

Specifications

  • ● 5 in 1 (voltage source, current source, I/V/R measurement)
  • ● Wide measurement range, 200V to 1μV, 10A to 10pA, 200MΩ to 10μΩ
  • ● Supporting pulse mode, minimum pulse width 150μs【1】
  • ● Basic accuracy up to 100μV, 600pA, 300μΩ
  • ● Maximum sampling rate 100ksps
  • ● Source and sink (4-quadrant) operation
  • ● 2/4/6-wire resistance measurement
  • ● Free PC application software, providing function calculator
  • ● Supporting linear staircase sweep, logarithmic staircase sweep and custom sweep
  • ● 4.3 inch LCD screen, simple operation interface, easy to use
  • ● SEQ test function and I-V characteristic analysis
  • ● Supporting signal generator and square wave
  • ● Digital I/O and external trigger control
  • ● LAN port, RS232 interface
  • ● Supporting SCPI protocol
  • ● Front USB port, supporting screenshot storage

  • Remark【1】：Only N2610-100-03 supports this function.
