N3410 Series

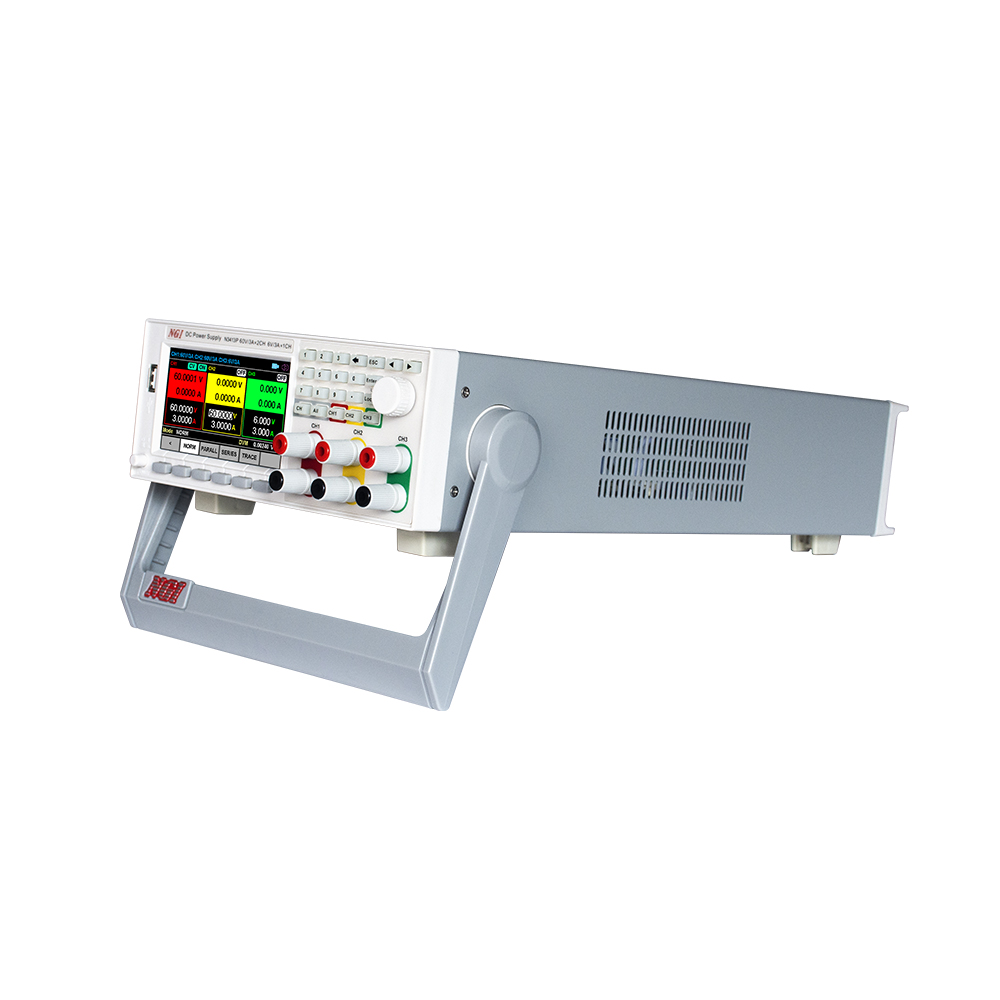

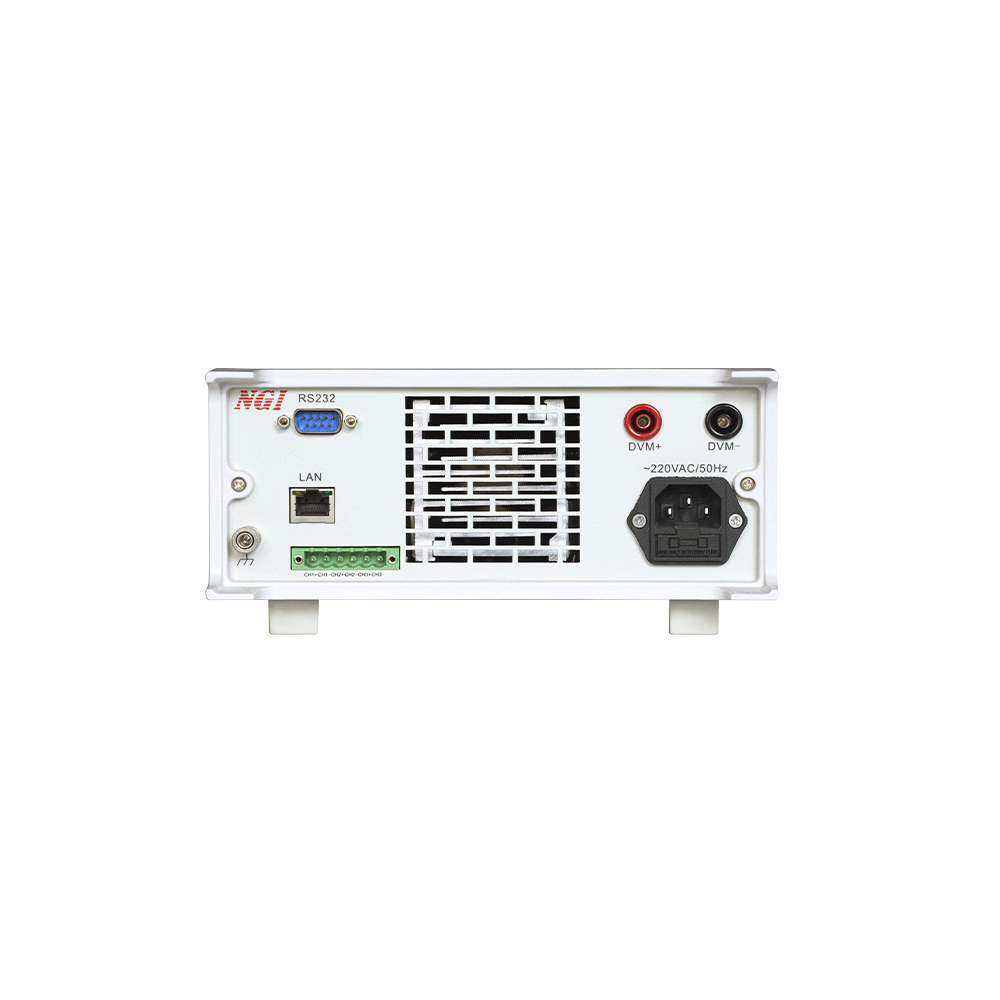

N3410 series supports both front and rear panel wiring. User can place N3410 on the bench top or integrate it on the rack, which brings a convenient experience.

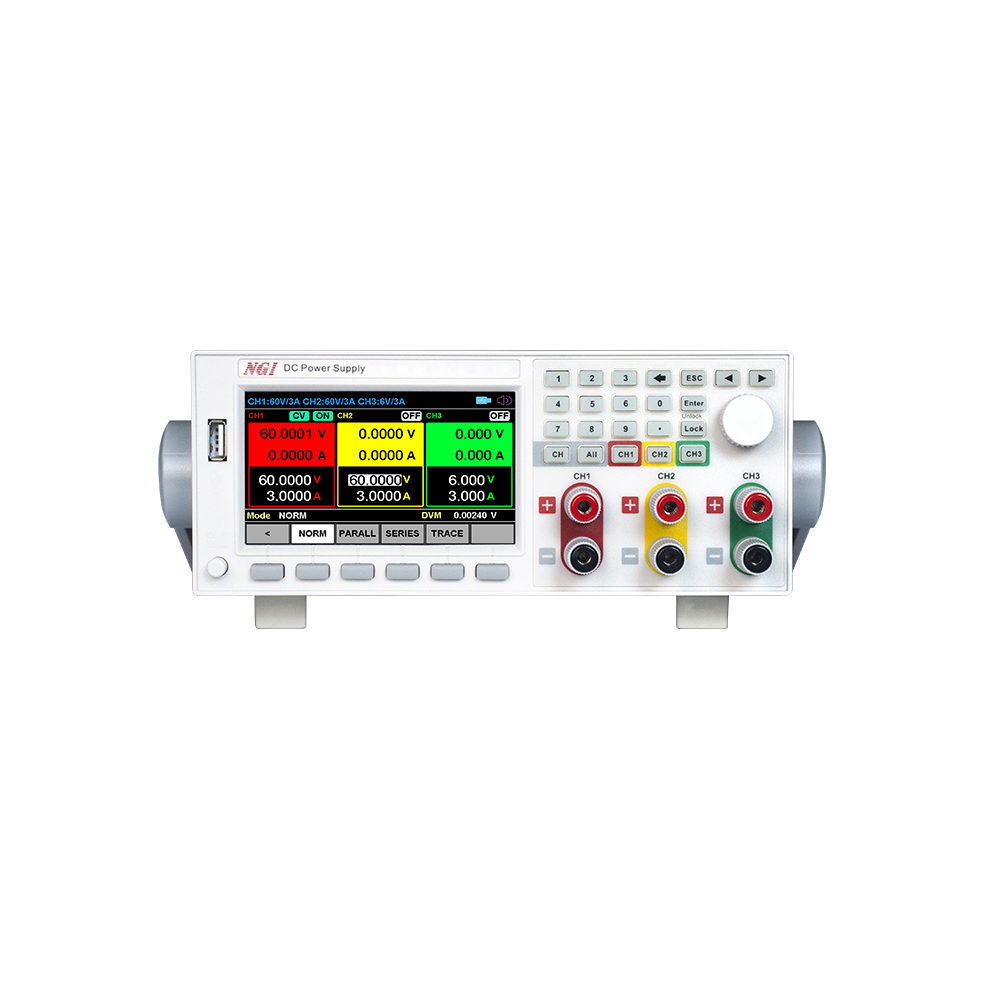

N3410 series is a triple-channel programmable DC power supply with high performance and high reliability. N3410 is with half 19 inch 2U size, integrating three independent output channels, and supporting both front and rear wiring. It has compact size and elegant appearance. N3410 supports both benchtop application with carrying handle and tilt stand,and supports rack installation for system integration. Test and measurement information is displayed intuitively on the 4.3 inch LCD screen. It provides DVM measurement as an optional function to meet different test demands.

Features

Specifications

  • ● Voltage range: 6V/32V/60V, supporting series connection to increase voltage
  • ● Current range: 3A/5A, supporting parallel connection to increase current
  • ● 3 channels in a standalone, each channel isolated
  • ● Low ripple & noise/li>
  • ● High accuracy and resolution, as low as 0.1mV/0.1mA1
  • ● Dynamic response time less than 1ms
  • ● Supporting series, parallel and trace output modes
  • ● High accuracy DVM measurement (for N3411P/N3412P/N3413P only)
  • ● Front and rear output terminals/li>
  • ● LAN port and RS232 interface
  • ● Half 19 inch 2U size with tilt stand
  • ● 4.3 inch LCD screen, supporting screenshot via USB port
  • ● Sequence (SEQ) test function2
  • ● Graph for real-time output waveform display3


    • Remark 1: N3411E/N3412E/N3413E are with 10mV/1mA resolution.
    Remark 2: SEQ is not available for N3411E/N3412E/N3413E.
    Remark 3: Graph is not available for N3411E/N3412E/N3413E.
