N6200 Series

Programmable DC Electronic Load (600W/1200W/1800W)

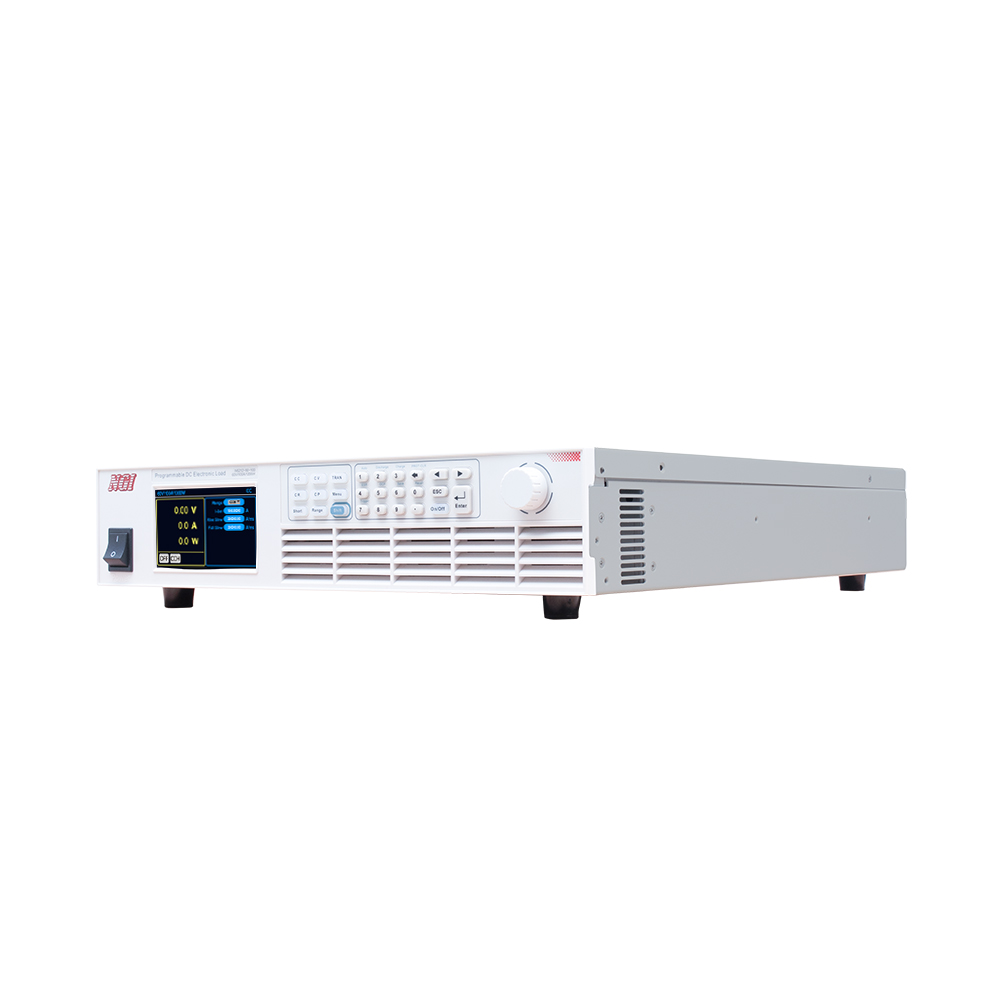

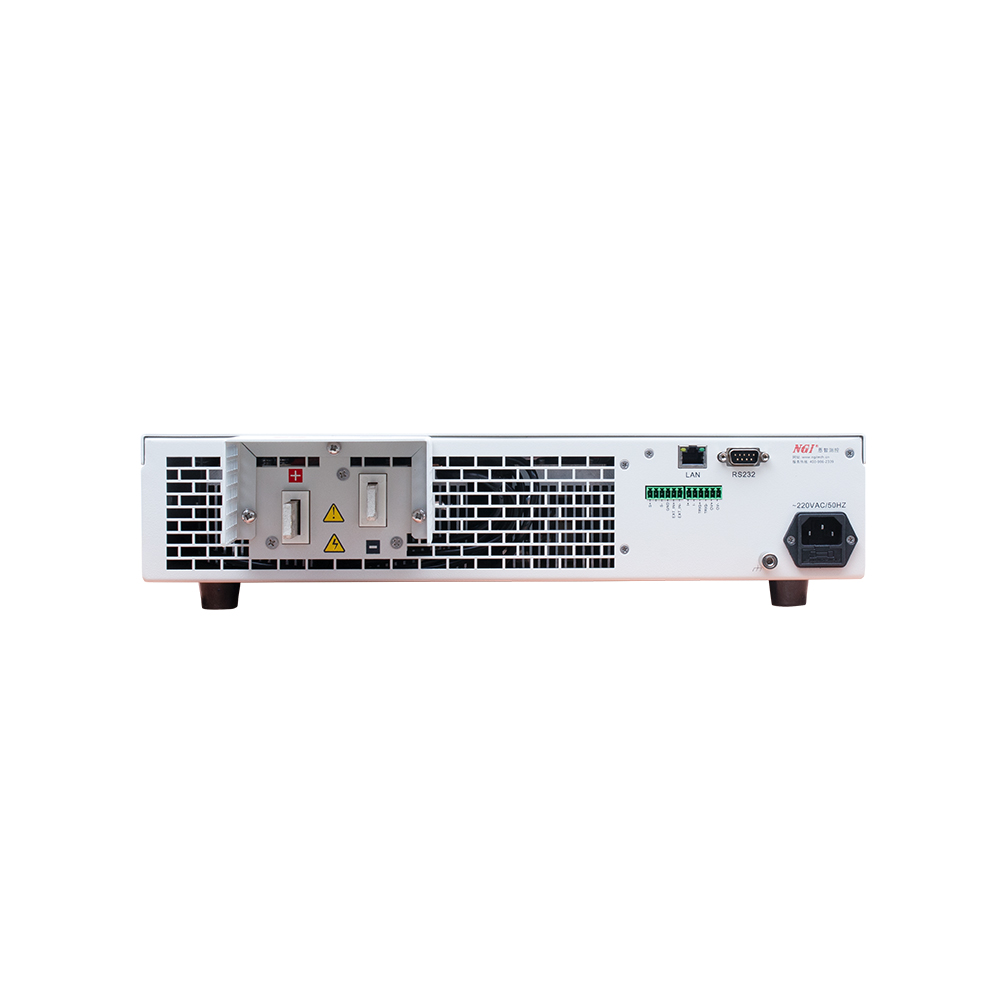

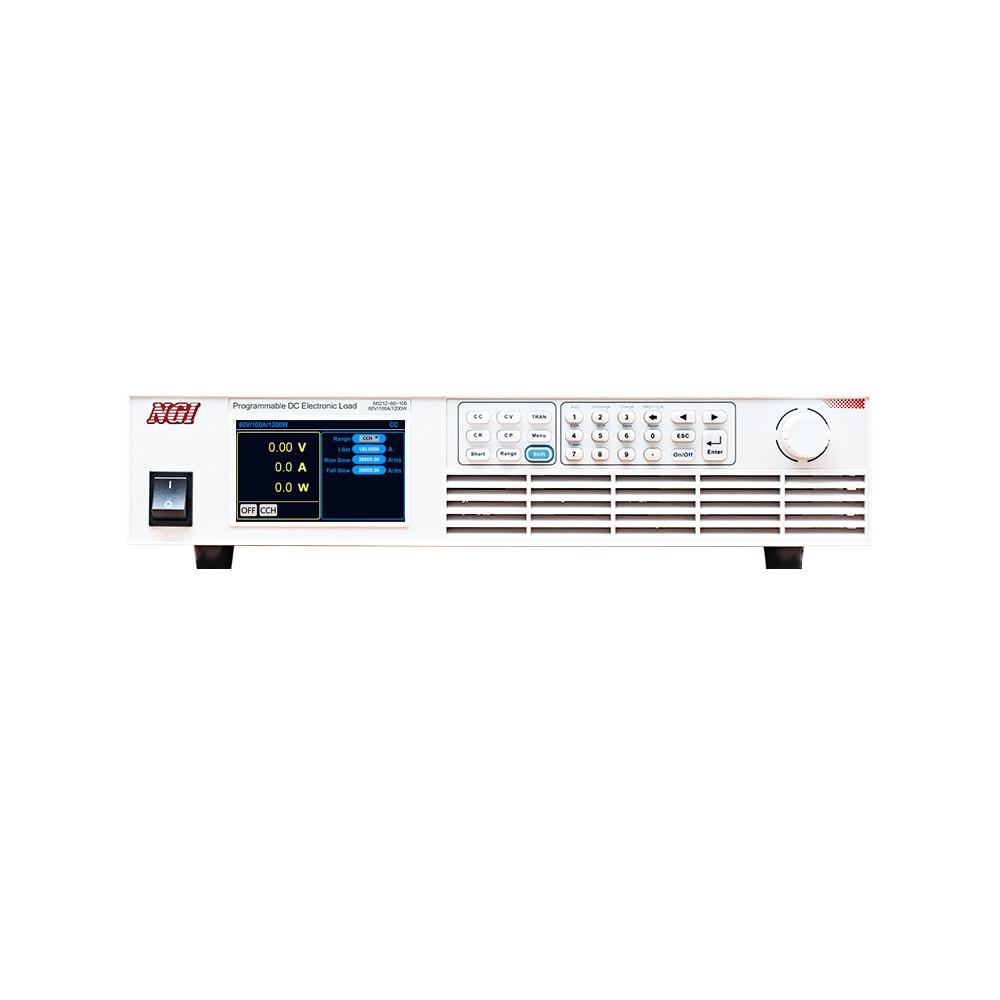

N6200 series is a programmable DC electronic load with high accuracy, high reliability and high cost performance. It supports local control via screen&button and remote control on PC. It is with built-in LAN port and RS232 interface. N6200 series is designed in a 19 inch 2U chassis, which is available for benchtop use or installation in 19 inch rack.

Features

Specifications

  • ● Power range: 0-600W/0-1200W/0-1800W
  • ● Voltage range: 0-60V/0-150V/0-600V
  • ● Current range: 0-50A/0-100A/0-150A
  • ● Operation mode: CC, CV, CP, CR
  • ● Stable and reliable CR/CP function supported by hardware
  • ● Supporting LAN/RS232 communication and SCPI commands
  • ● Programmable sequence test function(SEQ), up to 100 groups sequence files, up to 50 steps per file
  • ● Editable Von/Voff function
  • ● Built-in ESR test function (Optional)
  • ● Standard 19-inch 2U, available for rack installation
  • ● Analog programming interface(APG), current monitoring interface, remote/local trigger function
  • ● Short-circuit simulation
  • ● Supporting charge & discharge test, OCP test
