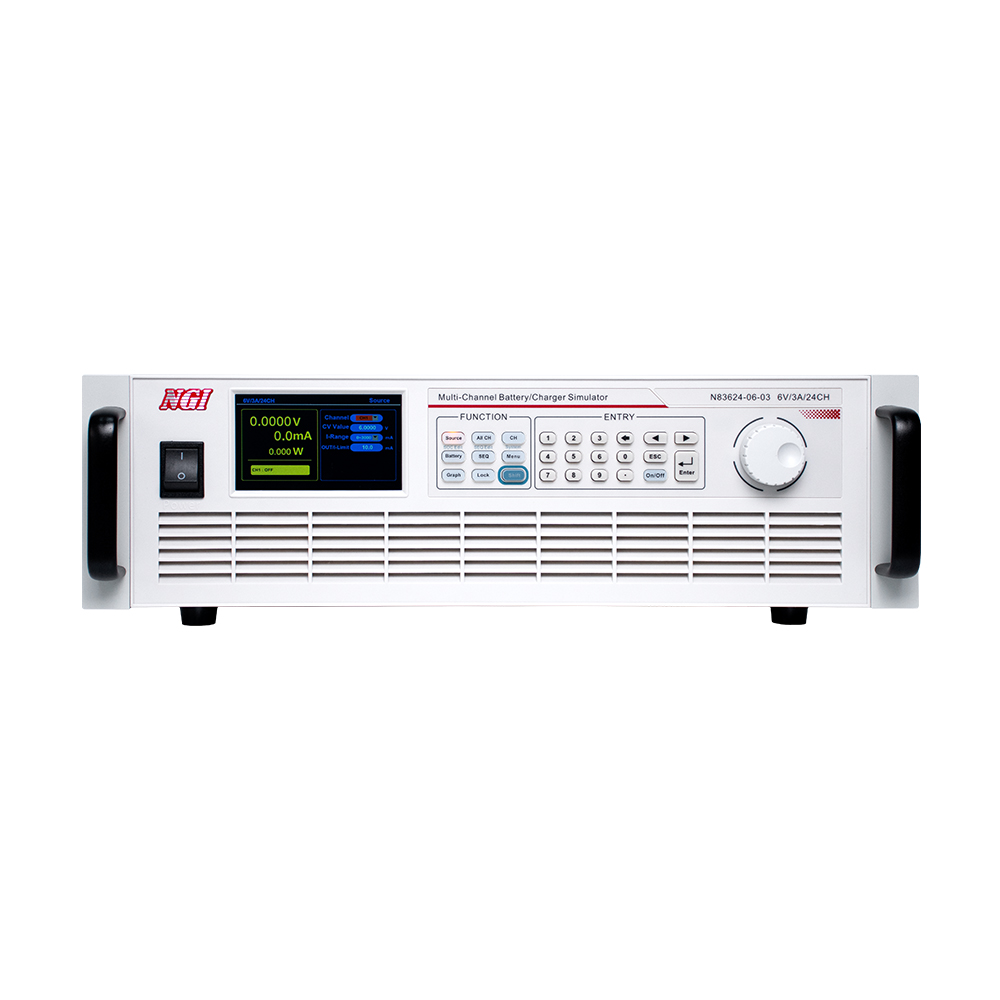

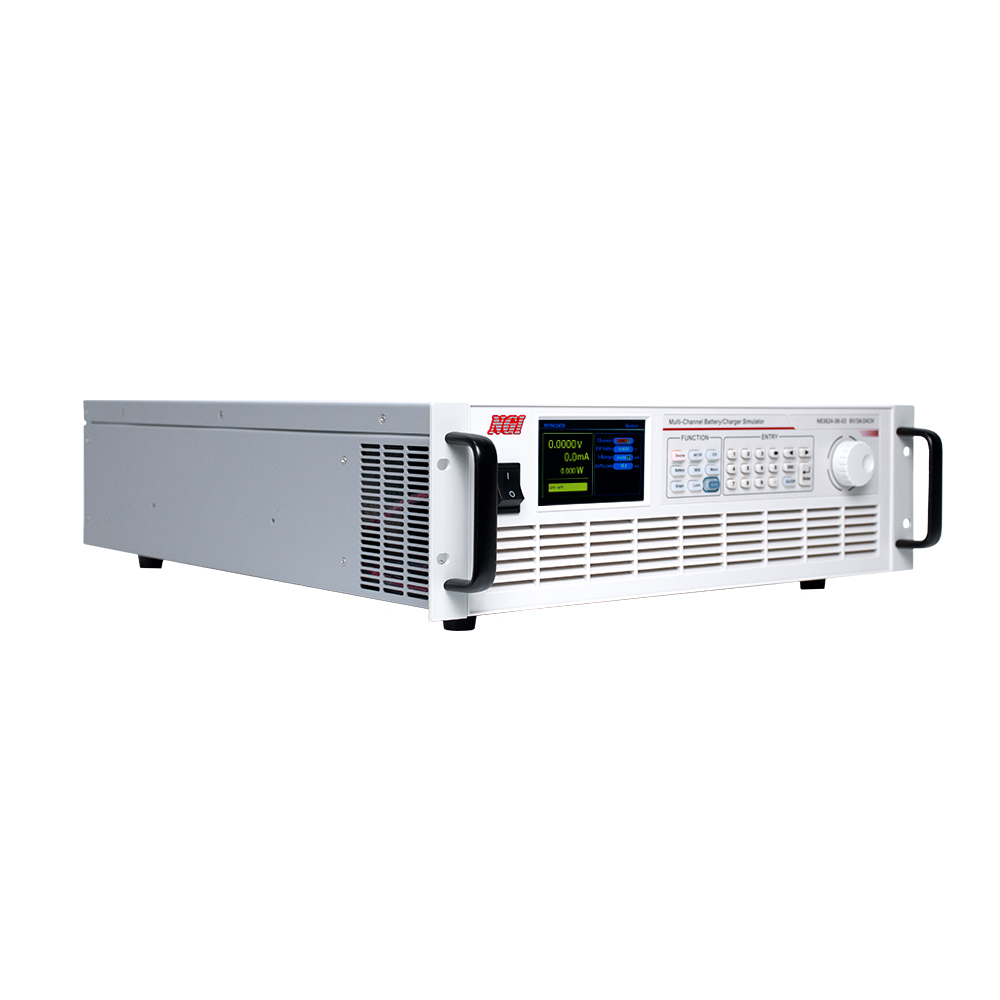

N83624 Series

Series High-accuracy Multi-channel Battery Simulator

N83624 is a programmable battery simulator with low-power, multi-channel and high-accuracy, suitable for BMS/CMS test. It can also be used as a multi-channel high accuracy DC power supply. It is highly integrated, single device with up to 24 channels. Each channel is isolated, available for multi-channel series connection. N83624 is equipped with high-definition color LCD screen, available for local operation. Users can also set the voltage & current for each channel on application software, which is easy to use and can meet the needs of multi-channel and multi-data. The software can also provide graphs, data analysis and report function.

Features

Specifications

  • ● Voltage range: 0-6V/0-15V
  • ● Current range: 0-1A/0-3A/0-5A
  • ● Single device with up to 24 channels, each channel isolated, series connection available
  • ● Fast communication response , within 10ms for all channels programming response
  • ● Professional application software, with data analysis and report
  • ● High-definition color LCD screen, available for local operation
  • ● Standard 19-inch 3U, available for rack installation
  • ● LAN port and RS232 interface; dual LAN ports, convenient for cascade application
  • ● μA level current measurement
  • ● Remote sense for high accuracy
  • ● Fast dynamic response, voltage rise time less than 20μs(For 6V specification)
