CobaltFx cost-effective millimeter wave frequency extension system allows you to build a scalable and affordable testing solution.

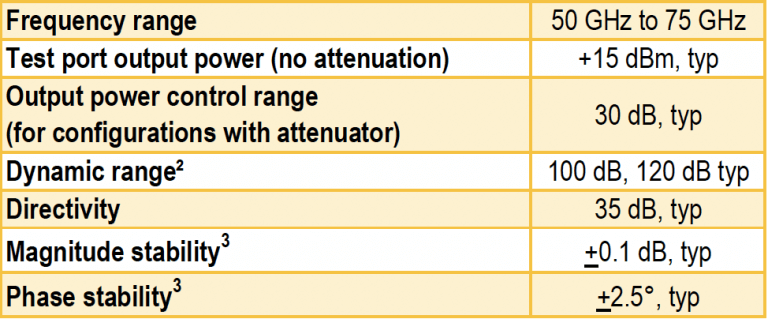

● Frequency Range: 50-75 GHz
● Connector Type: Waveguide WR15
● High-power (HP) extender module provides increased test port output power: +15 dBm
● Attenuator option is available for adjustable output power control: 0-30 dB

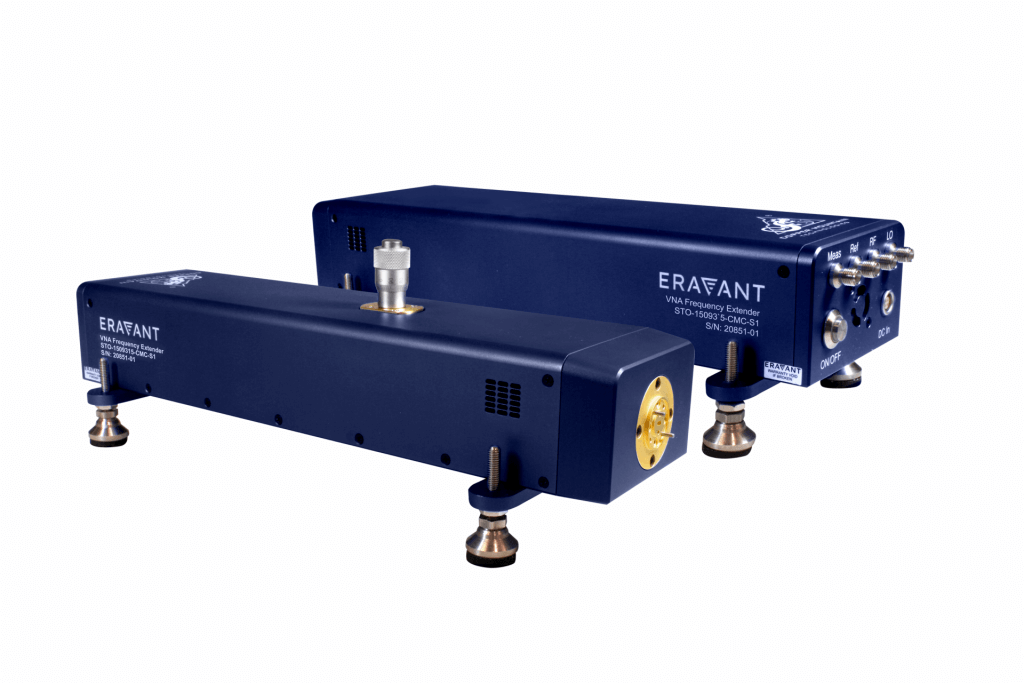

● Each frequency extender module includes a Proxi-Flange™

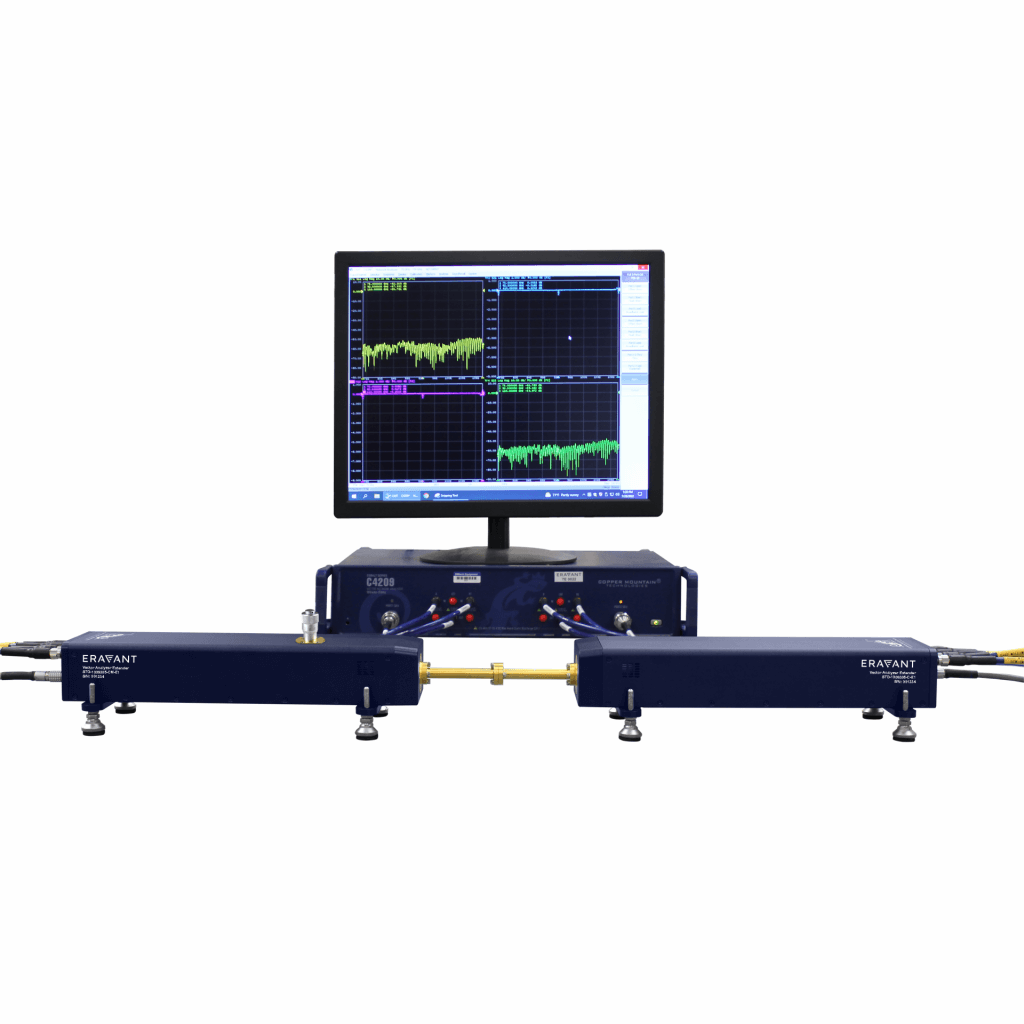

The system can be anchored by your choice of four vector network analyzers:
● C4209 2-port 9 GHz VNA
● C4409 4-port 9 GHz VNA
● C4220 2-port 20 GHz VNA
● C4420 4-port 20 GHz VNA
