Copper Mountain Calibration Kits & Accessories

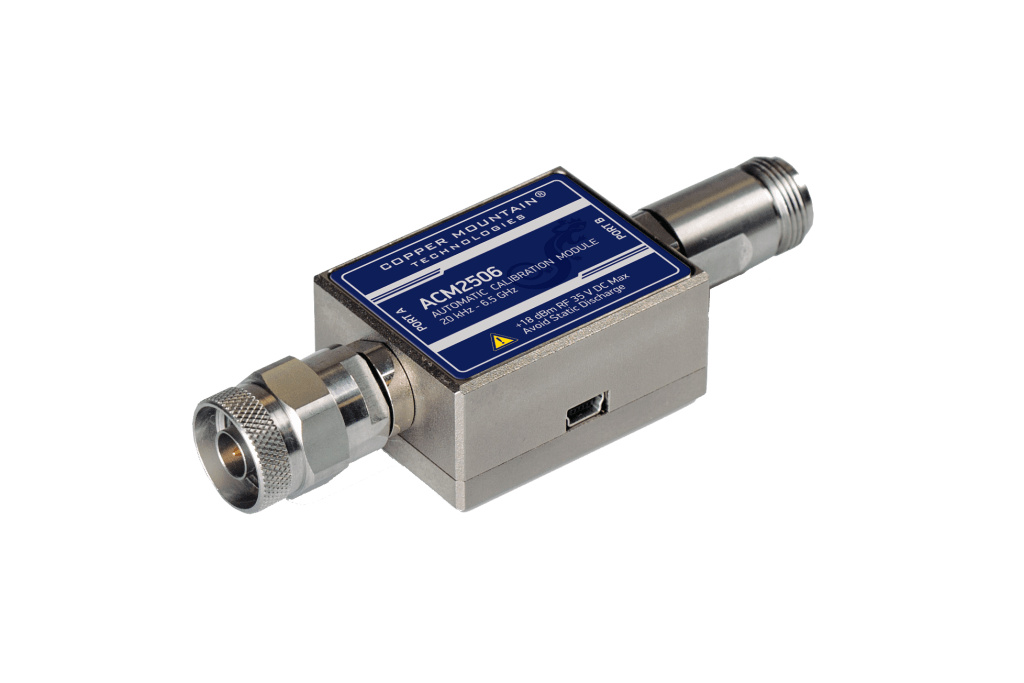

ACM2506 Automatic Calibration Module

ACM2506 is an automatic calibration module that can be used with all CMT Vector Network Analyzers operating in frequency range up to 6.5 GHz.

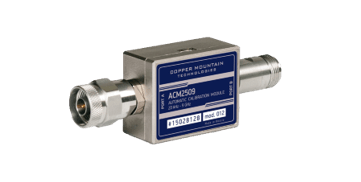

ACM2509 Automatic Calibration Module

ACM2509 is an automatic calibration module that can be used with all CMT Vector Network Analyzers operating in frequency range up to 9 GHz.

ACM2520 Automatic Calibration Module

ACM2520 is an automatic calibration module that can be used with all CMT Vector Network Analyzers operating in frequency range up to 20 GHz.

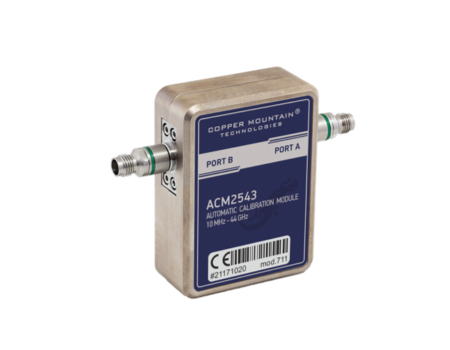

ACM2543 Automatic Calibration Module

ACM2543 is an automatic calibration module that can be used with all CMT Vector Network Analyzers operating in frequency range up to 44 GHz.

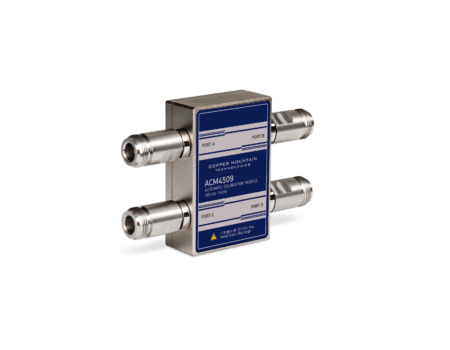

ACM4509 Automatic Calibration Module

ACM4509 is an automatic calibration module that can be used with all CMT Vector Network Analyzers operating in frequency range up to 9 GHz.

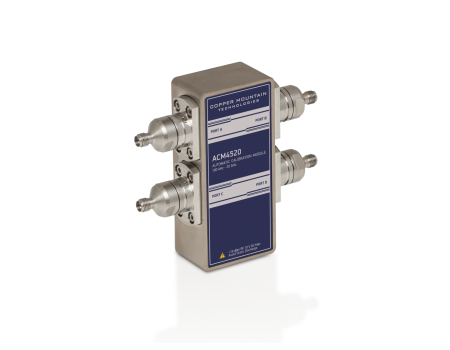

ACM4520 Automatic Calibration Module

ACM4520 is an automatic calibration module that can be used with all CMT Vector Network Analyzers operating in frequency range up to 20 GHz.

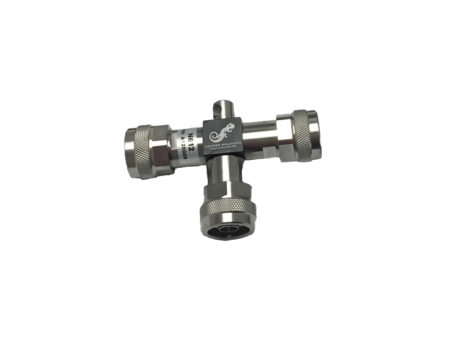

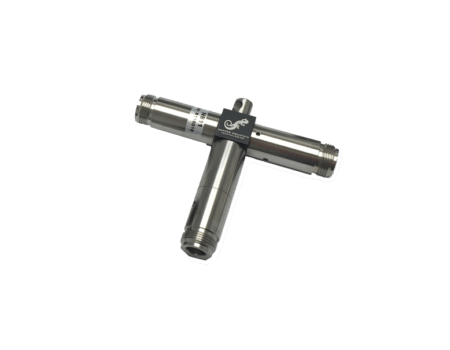

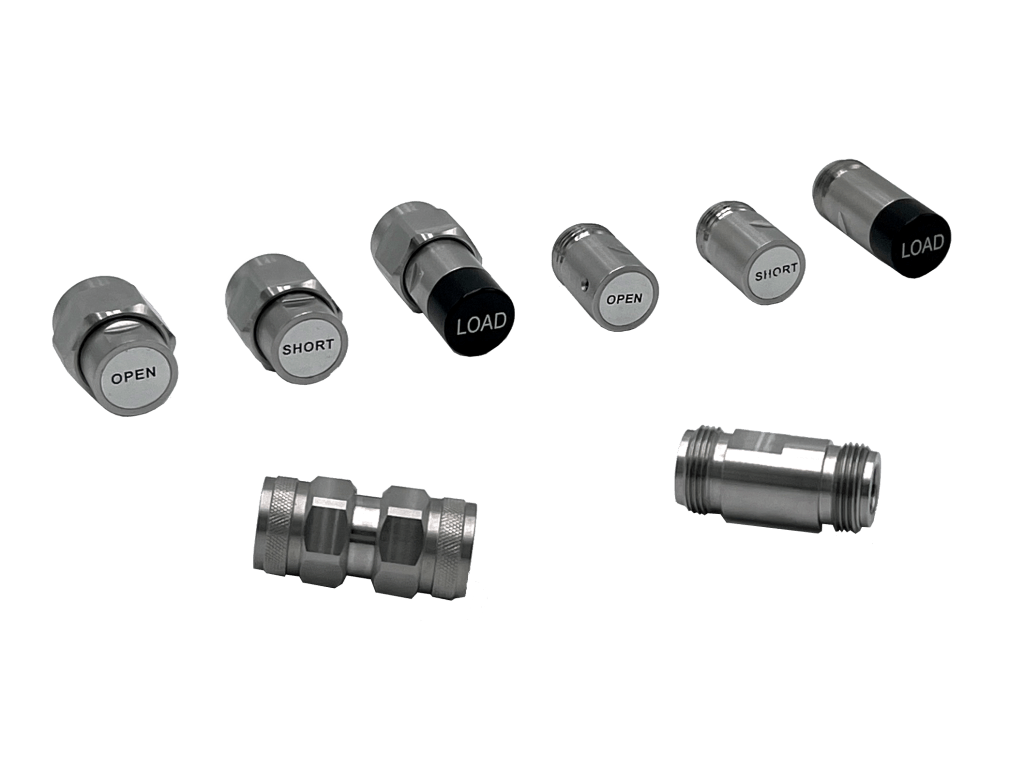

N3.5 Calibration Kit

N3.5 Calibration Kit Frequency Range: up to 3.5 GHz Impedance: 50 Ohm Connector Type: N-type

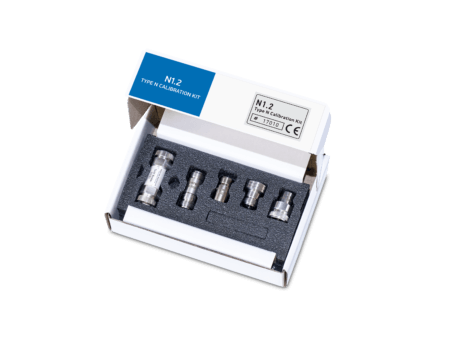

N1.2 Calibration Kit

N1.2 Calibration Kit Frequency Range: up to 1.5 GHz Impedance: 50 Ohm Connector Type: N-type

N611 Calibration Kit

N611 Calibration Kit Frequency Range: up to 6 GHz Impedance: 50 Ohm Connector Type: N-type

N612 Calibration Kit

N612 Calibration Kit Frequency Range: up to 6 GHz Impedance: 50 Ohm Connector Type: N-type

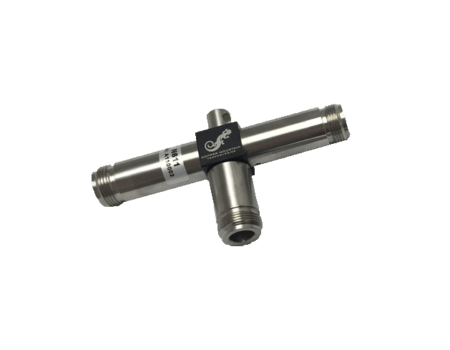

N911 Calibration Kit

N911 Calibration Kit Frequency Range: up to 9 GHz Impedance: 50 Ohm Connector Type: N-type

N912 Calibration Kit

N912 Calibration Kit Frequency Range: up to 9 GHz Impedance: 50 Ohm Connector Type: N-type

N1801 Calibration Kit

N1801 Calibration Kit Frequency Range: up to 18 GHz Impedance: 50 Ohm Connector Type: N-type Female

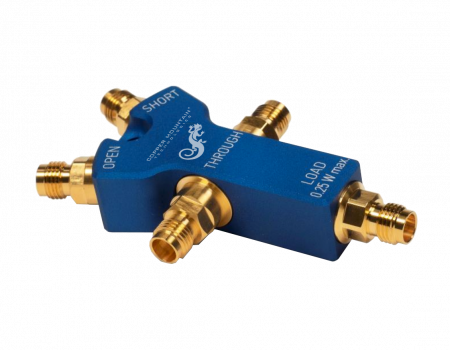

CM292F Calibration Kit

Frequency Range: up to 40 GHz Impedance: 50 Ohm Connector type: 2.92 mm female

CM24F Calibration Kit

Frequency Range: up to 50 GHz Impedance: 50 Ohm Connector Type: 2.4 mm female

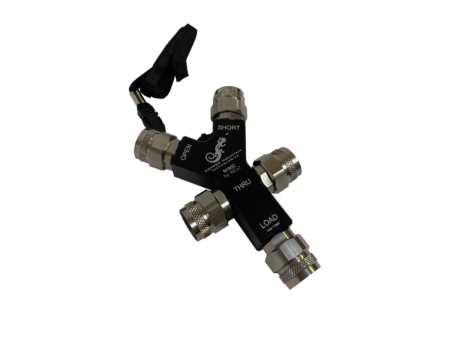

N1802 Calibration Kit

N1802 Calibration Kit Frequency Range: up to 18 GHz Impedance: 50 Ohm Connector Type: N-type Male

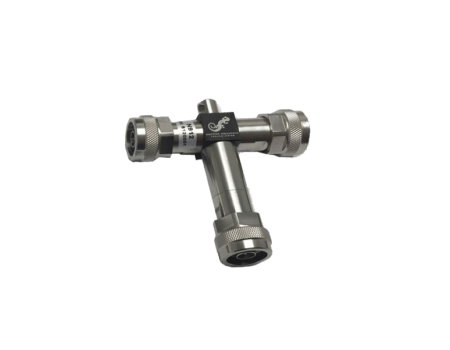

S911T Calibration Kit

S911T Calibration Kit Frequency Range: up to 9 GHz Impedance: 50 Ohm Connector Type: 3.5 mm female

S2611 Calibration Kit

S2611 Calibration Kit Frequency Range: up to 26.5 GHz Impedance: 50 Ohm Connector type: 3.5 mm female

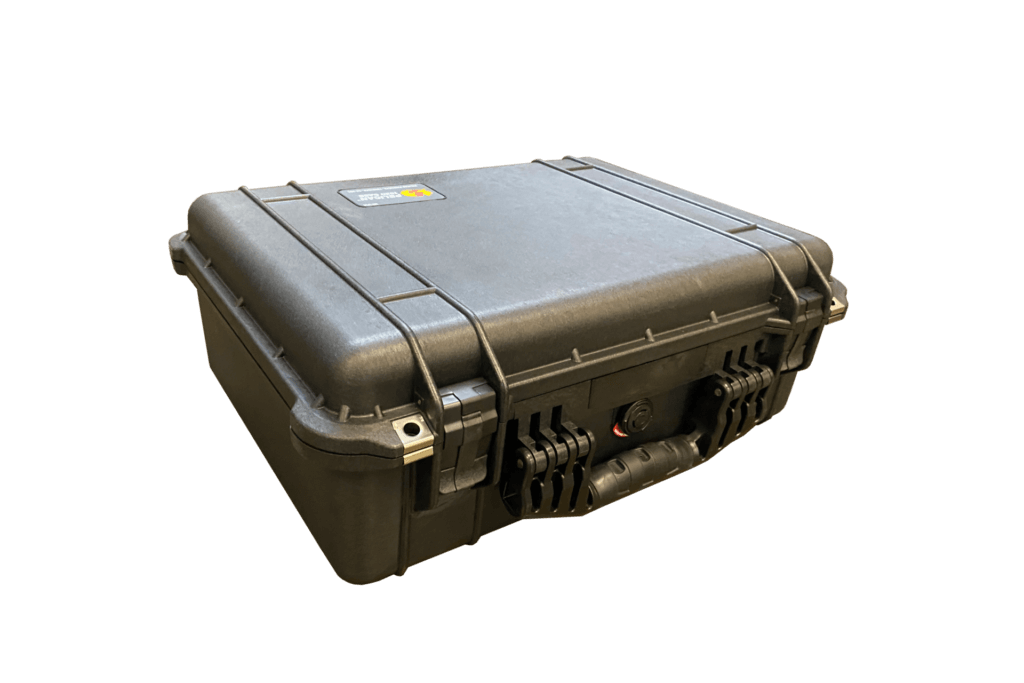

Pelican Case for CMT Vector Network Analyzer

Pelican cases with custom foam inserts specifically designed for your VNA. This add-on option provides additional protection when traveling or shipping your equipment for calibration or other services.

PNMDF3.5F NMD 3.5mm F to 3.5mm F Adapter

PNMDF3.5F Adapter, NMD 3.5mm F to 3.5mm F Frequency Range: up to 26.5 GHz Impedance: 50 Ohm

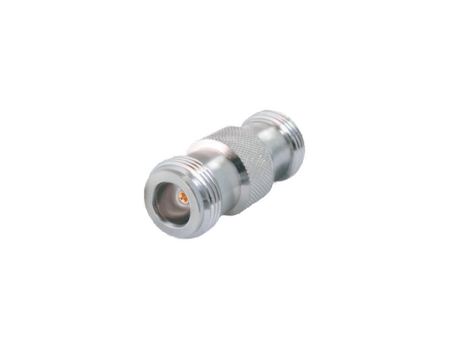

NF50 N-Female to N-Female Adapter

NF50 Adapter, N-Female to N-Female Frequency Range: up to 6 GHz Impedance: 50 Ohm

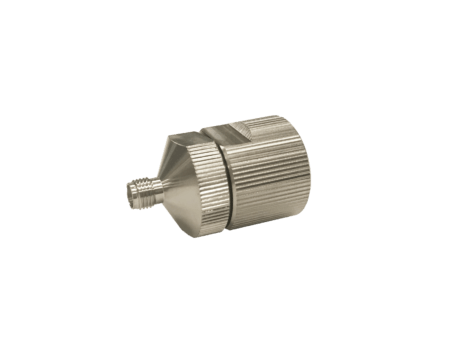

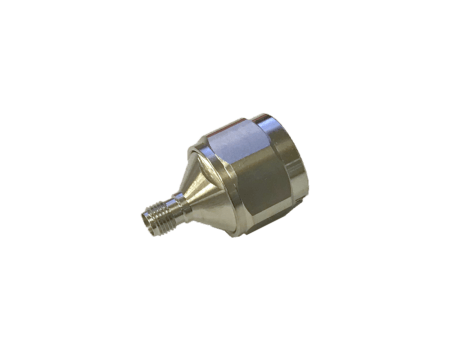

NM-SF 50 N-Male to SMA-Female Adapter

NM-SF 50 Adapter, N-Male to SMA-Female Frequency Range: DC to 18 GHz Impedance: 50 Ohm

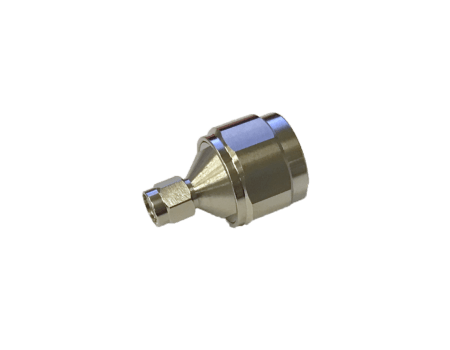

NM-SM 50 N-Male to SMA-Male Adapter

NM-SM 50 Adapter, N-Male to SMA-Male Frequency Range: DC to 18 GHz Impedance: 50 Ohm

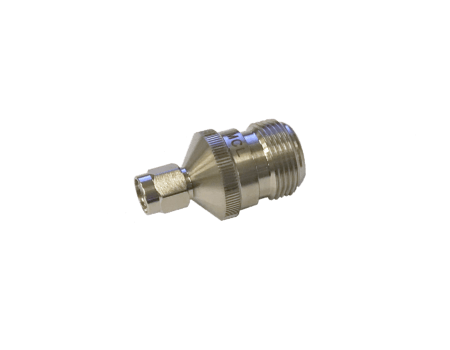

NF-SM 50 N-Female to SMA-Male Adapter

NF-SM 50 Adapter, N-Female to SMA-Male Frequency Range: DC to 18 GHz Impedance: 50 Ohm

NF-SF 50 N-Female to SMA-Female Adapter

NF-SF 50 Adapter, N-Female to SMA-Female Frequency Range: DC to 18 GHz Impedance: 50 Ohm

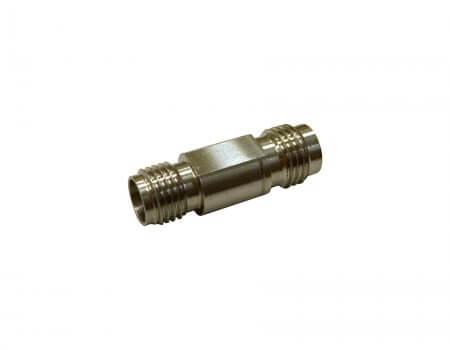

2.4F - 2.9F Adapter

2.4F – 2.9F Adapter Frequency Range: DC to 40 GHz Impedance: 50 Ohm

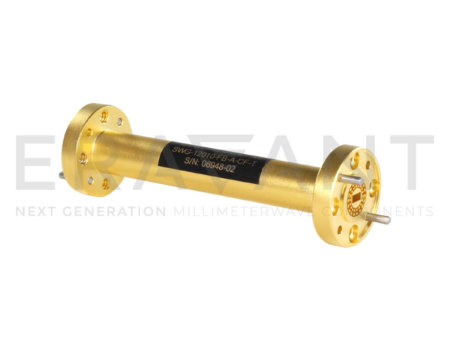

WR-15 Proxi-Flange™

The WR-15 Proxi-Flange™ is an Eravant trademarked, patent pending, V-band contactless flange straight waveguide section with WR-15 waveguides and UG-385/U Anti-Cocking flanges

WR-12 Proxi-Flange™

The WR-12 Proxi-Flange™ is an Eravant trademarked, patent pending, E-band contactless flange straight waveguide section with WR-12 waveguides and UG-387/U Anti-Cocking flanges.

WR-10 Proxi-Flange™

The WR-10 Proxi-Flange™ is an Eravant trademarked, patent pending, W-band contactless flange straight waveguide section with WR-10 waveguides and UG-387/U-M Anti-Cocking flanges.

WR-08 Proxi-Flange™

The WR-08 Proxi-Flange™ is an Eravant trademarked, patent pending, F-band contactless flange straight waveguide section with WR-08 waveguides and UG-387/U-M Anti-Cocking flanges

WR-06 Proxi-Flange™

The WR-06 Proxi-Flange™ is an Eravant trademarked, patent pending, D-band contactless flange straight waveguide section with WR-06 waveguides and UG-387/U-M Anti-Cocking flanges.

WR-05 Proxi-Flange™

The WR-05 Proxi-Flange™ is an Eravant trademarked, patent pending, G-band contactless flange straight waveguide section with WR-05 waveguides and UG-387/U-M Anti-Cocking flanges.

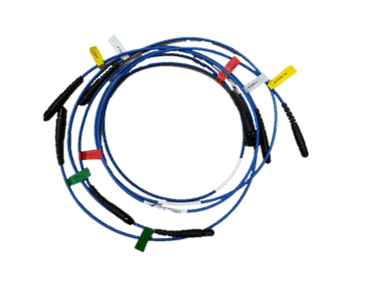

CobaltFx 9 GHz 4' FET RF Cable Kit

CobaltFx 9 GHz 4′ FET RF Cable Kit Length: 4 feet Impedance: 50 Ohm

CobaltFx 20 GHz 4' FET RF Cable Kit

CobaltFx 20 GHz 4′ FET RF Cable Kit Length: 4 feet Impedance: 50 Ohm

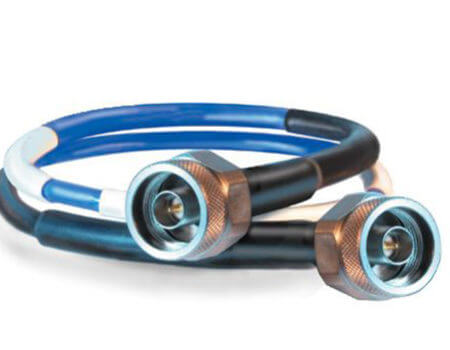

C50NMNM N-Male to N-Male Test Cable

Our N-type test cable is made to ideally suit our larger line of vector network analyzers.

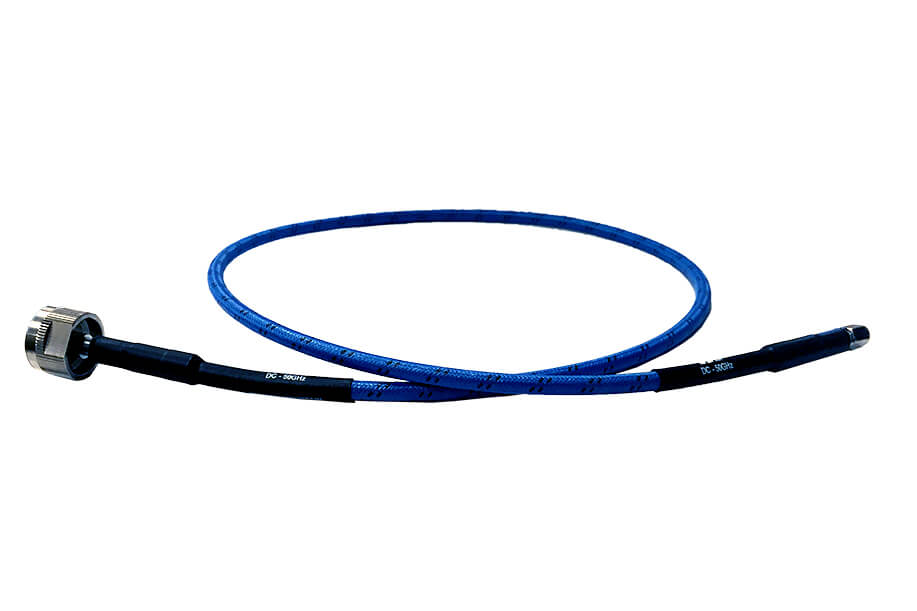

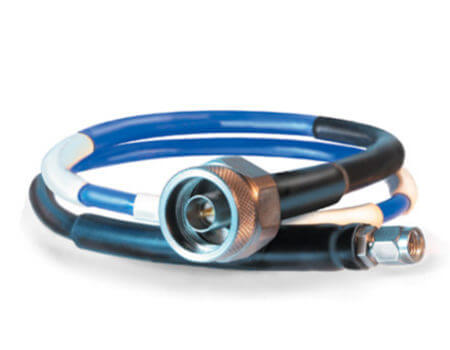

C50SMNM SMA-Male to N-Male Test Cable

Our 2N-to-SMA test cable is made to ideally suit our larger line of vector network analyzers.

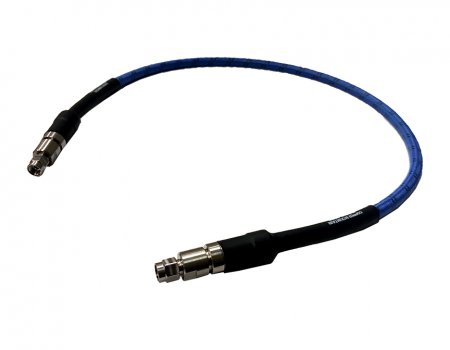

C5024NMDF24M 2.4 NMD Female and 2.4 mm Male Test Cable

Our 2.4 mm test cable is made to ideally suit our larger line of vector network analyzers.

C50292MM 2.92 mm to 2.92 mm Test Cable

Our 2.92 mm test cable is made to ideally suit our larger line of vector network analyzers.

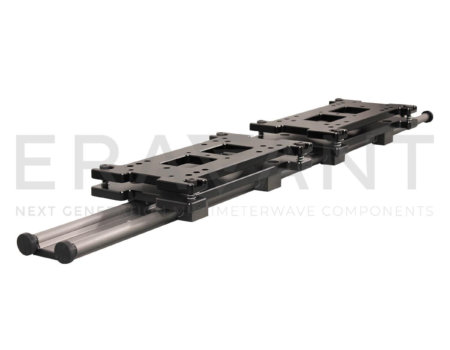

Wave-Glide™ Rail Positioning System

Eravant’s Wave-Glide™ Rail Positioning System is a patent pending rail system to enhance the millimeterwave VNA testing experience.

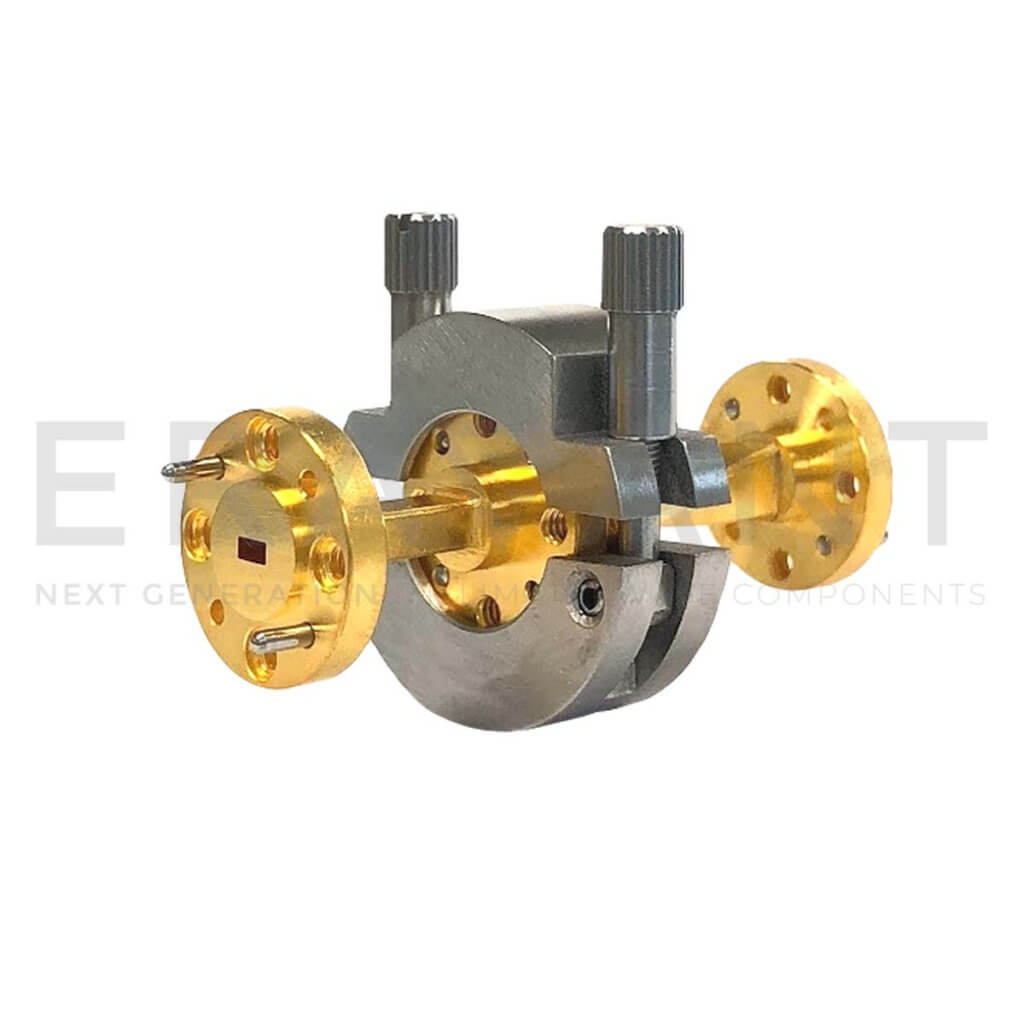

Waveguide Quick Connect

Eravant’s Waveguide Quick Connect is a waveguide quick connect apparatus, which is designed and manufactured primarily for quick connect and disconnect operations, for 0.75” circular flanges.

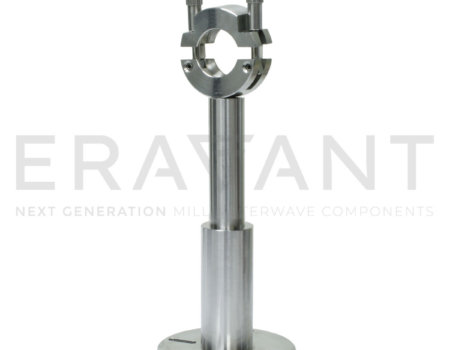

Waveguide Quick Connect with Stand

Eravant’s Waveguide Quick Connect Stand is a waveguide stand to support the UG-385/U, UG-387/U, and UG-387/U-M flanged waveguide systems in the lab environment

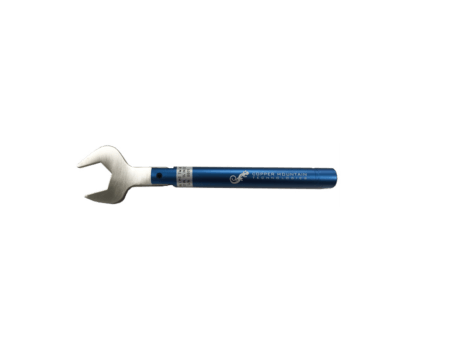

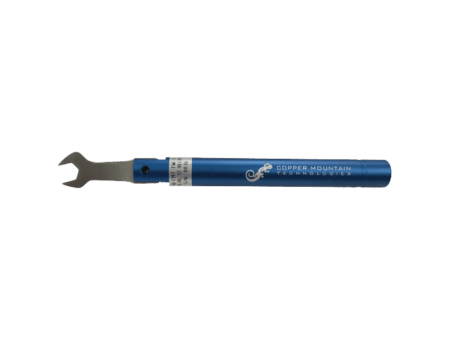

CMT TW-S SMA Type Torque Wrench (8 in.lbs)

The TW-S is a SMA Type, proof coupling torque wrench used for SMA 3.5mm, 2.92mm, 2.4mm and 1.85mm Type Connectors.

CMT TW-S SMA Type Torque Wrench (5 in.lbs)

The TW-S is a SMA Type, proof coupling torque wrench.

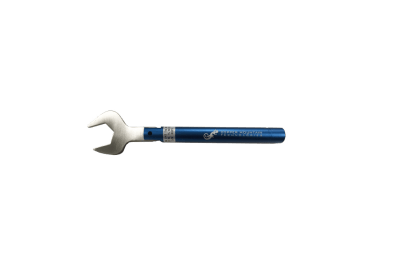

CMT TW-N 20mm N-Type Torque Wrench (12 in.lbs)

The TW-N is a N-Type, proof coupling torque wrench used to properly install or disassemble a wide range of coaxial connectors.

CMT TW-N 20mm N-Type Torque Wrench (8 in.lbs)

The TW-N is a N-Type, proof coupling torque wrench used to properly install or disassemble a wide range of coaxial connectors.

CMT TW-N 19mm N-Type Torque Wrench (12 in.lbs)

The TW-N is a N-Type, proof coupling torque wrench used to properly install or disassemble a wide range of coaxial connectors.

CMT TW-N 19mm N-Type Torque Wrench (8 in.lbs)

The TW-N is a N-Type, proof coupling torque wrench used to properly install or disassemble a wide range of coaxial connectors.

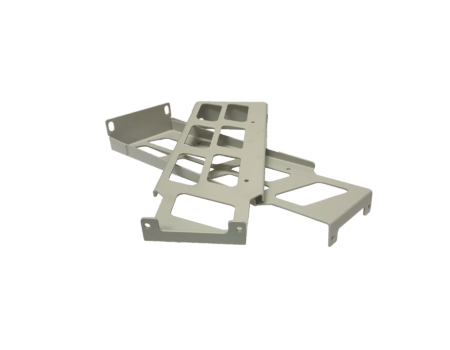

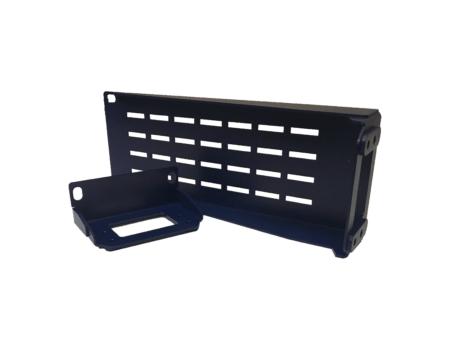

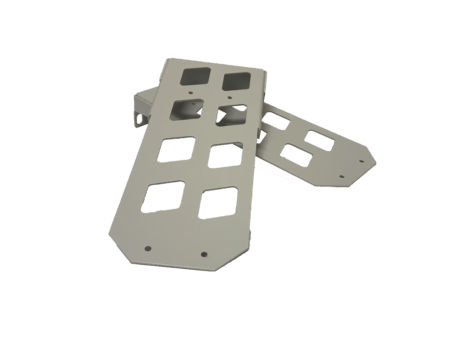

304/1 Vector Network Analyzer Rack Mount Kit

This rack mount kit is for the 304/1 VNA.

804/1 Vector Network Analyzer Rack Mount Kit

This rack mount kit is for the 804/1 VNA.

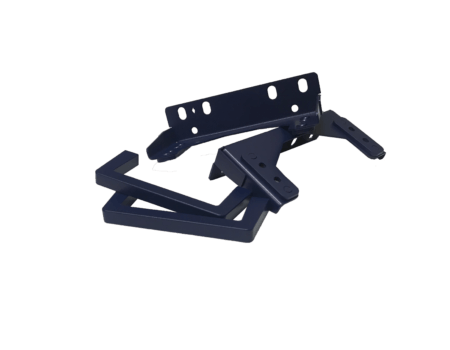

C1209 Vector Network Analyzer Rack Mount Kit

This rack mount kit is for the Cobalt C1209 VNA.

C1220 Vector Network Analyzer Rack Mount Kit

This rack mount kit is for the Cobalt C1220 VNA.
