CobaltFx cost-effective millimeter wave frequency extension system allows you to build a scalable and affordable testing solution.

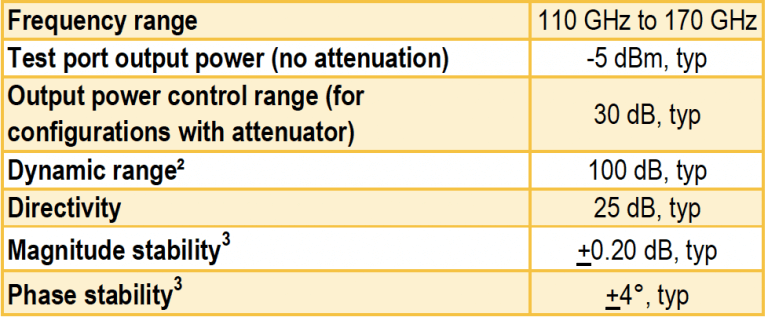

● Frequency Range: 110-170 GHz
● Connector Type: Waveguide WR06
● Attenuator option is available for adjustable output power control: 0-30 dB
● Each frequency extender module includes a Proxi-Flange™

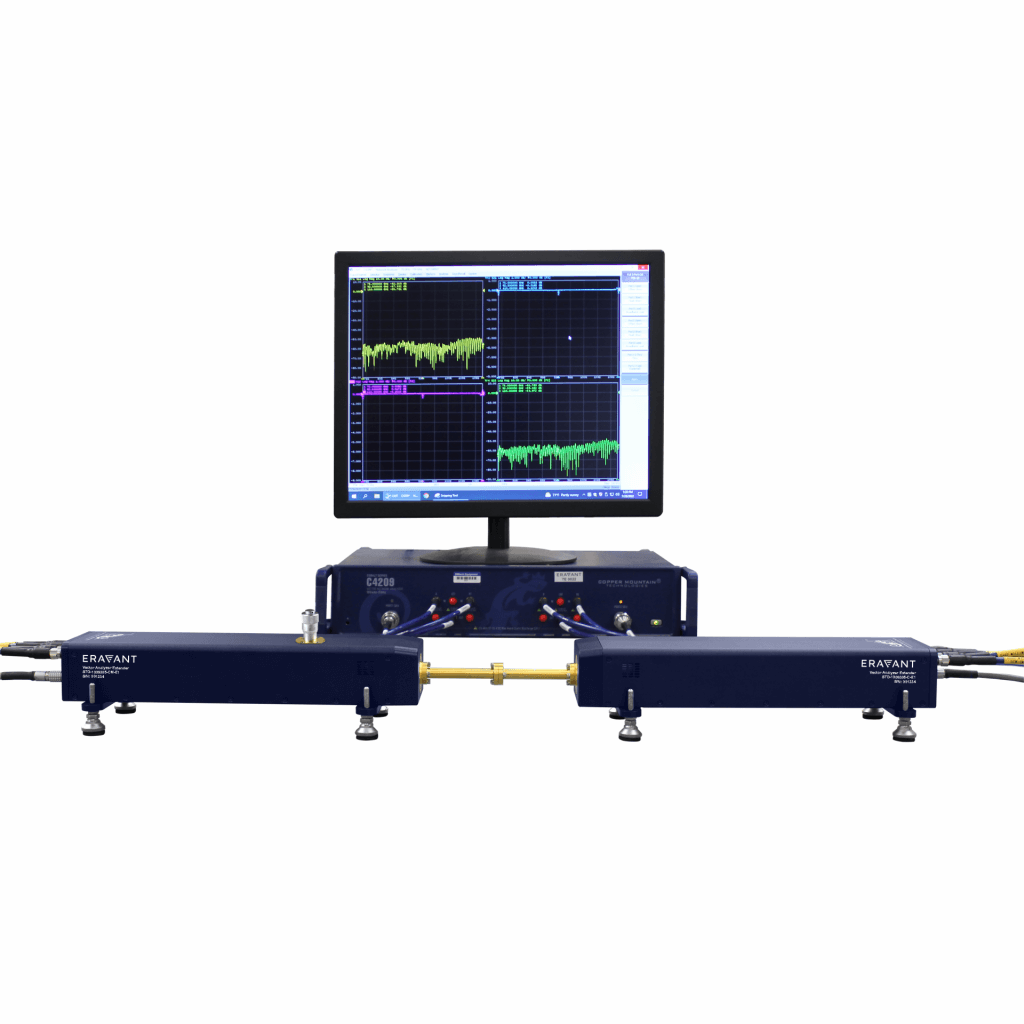

The system can be anchored by your choice of four vector network analyzers:
● C4209 2-port 9 GHz VNA
● C4409 4-port 9 GHz VNA
● C4220 2-port 20 GHz VNA
● C4420 4-port 20 GHz VNA

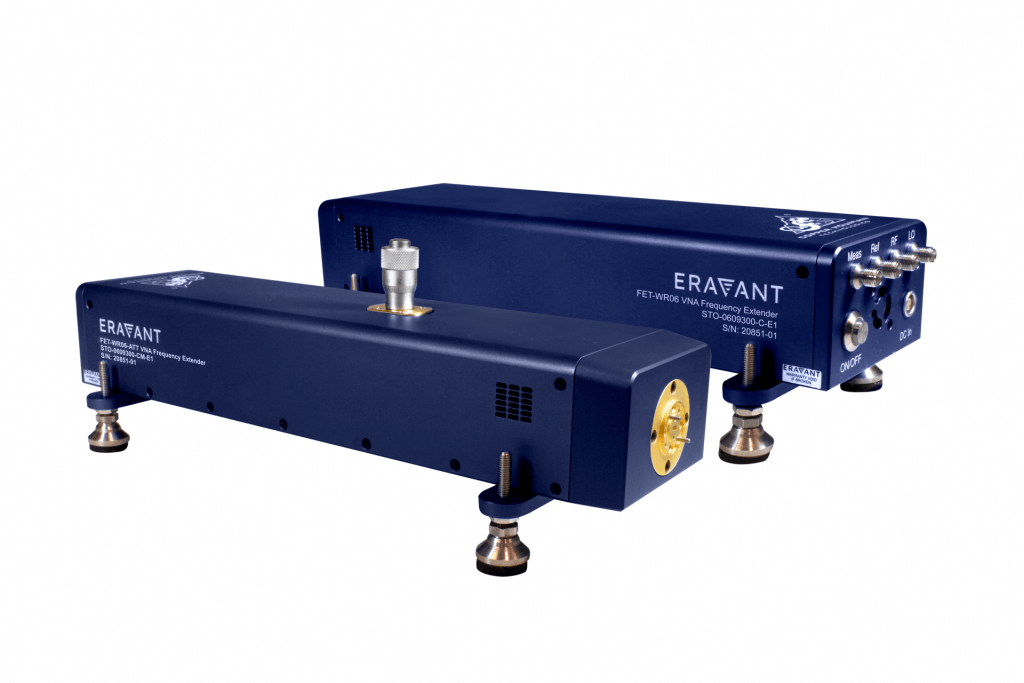

Total cost of the system depends on selected VNA. The extenders are packaged in small and versatile enclosures that allow for flexible port arrangements. Waveguide ports are manufactured in accordance to the new IEEE 1785-2a standard and ensure industry best alignment and repeatability of connection, allowing for long interval times between calibration.
