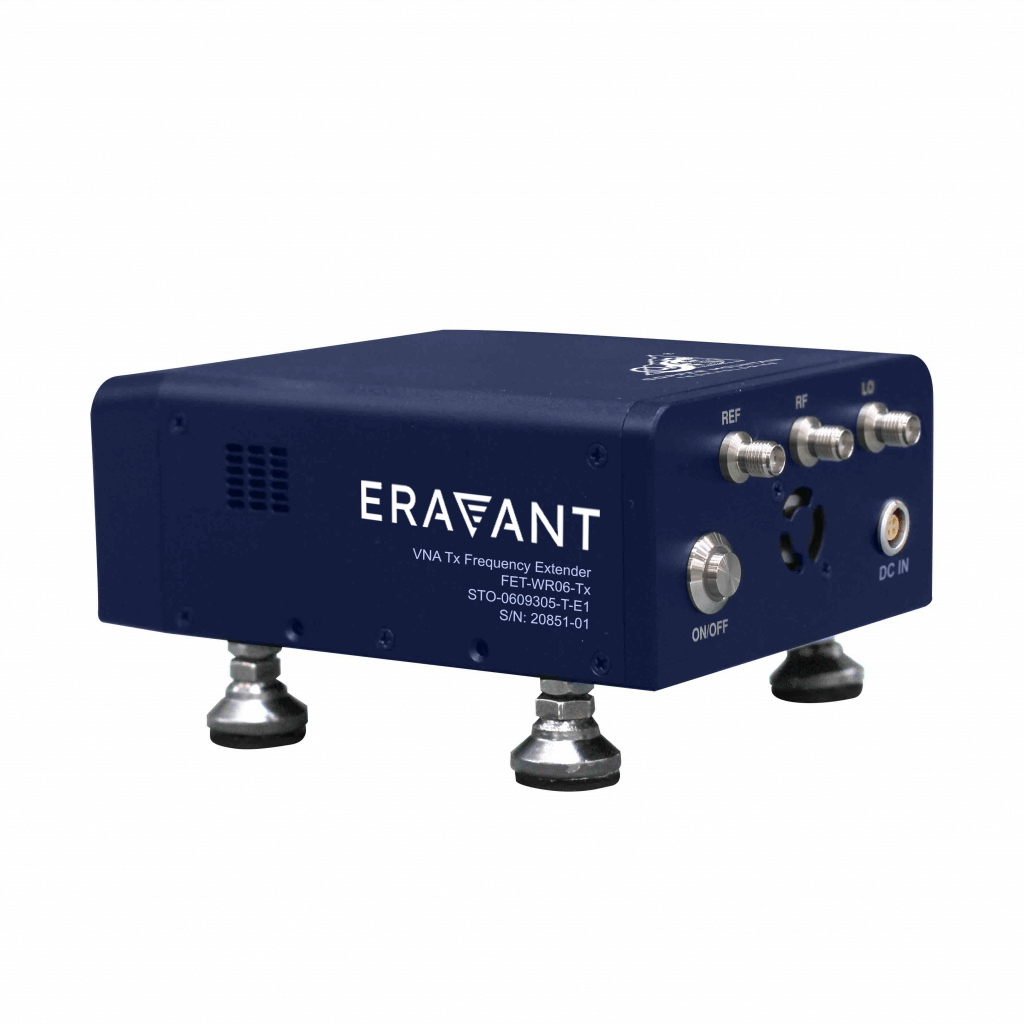

CobaltFx cost-effective millimeter wave frequency extension system allows you to build a scalable and affordable testing solution.
● Frequency Range: 110-170 GHz
● Connector Type: Waveguide WR06
● Each frequency extender module includes a Proxi-Flange™

The system can be anchored by your choice of four vector network analyzers:
● C4209 2-port 9 GHz VNA
● C4409 4-port 9 GHz VNA
● C4220 2-port 20 GHz VNA
● C4420 4-port 20 GHz VNA
The extenders are packaged in small and versatile enclosures that allow for flexible port arrangements. Waveguide ports are manufactured in accordance to the new IEEE 1785-2a standard and ensure industry best alignment and repeatability of connection, allowing for long interval times between calibration.
This frequency extender can be used to measure one-path transmission (S21 or S12) through the DUT when paired with a compatible receiver.
