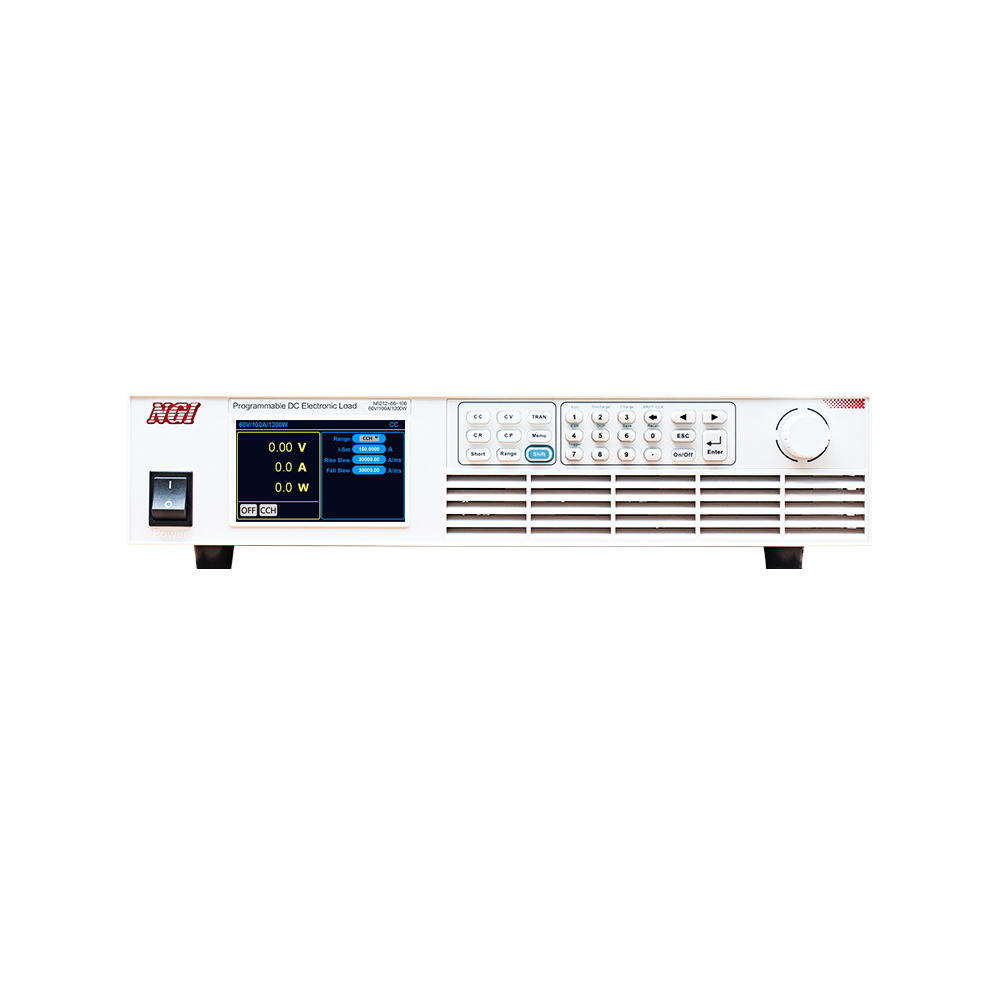

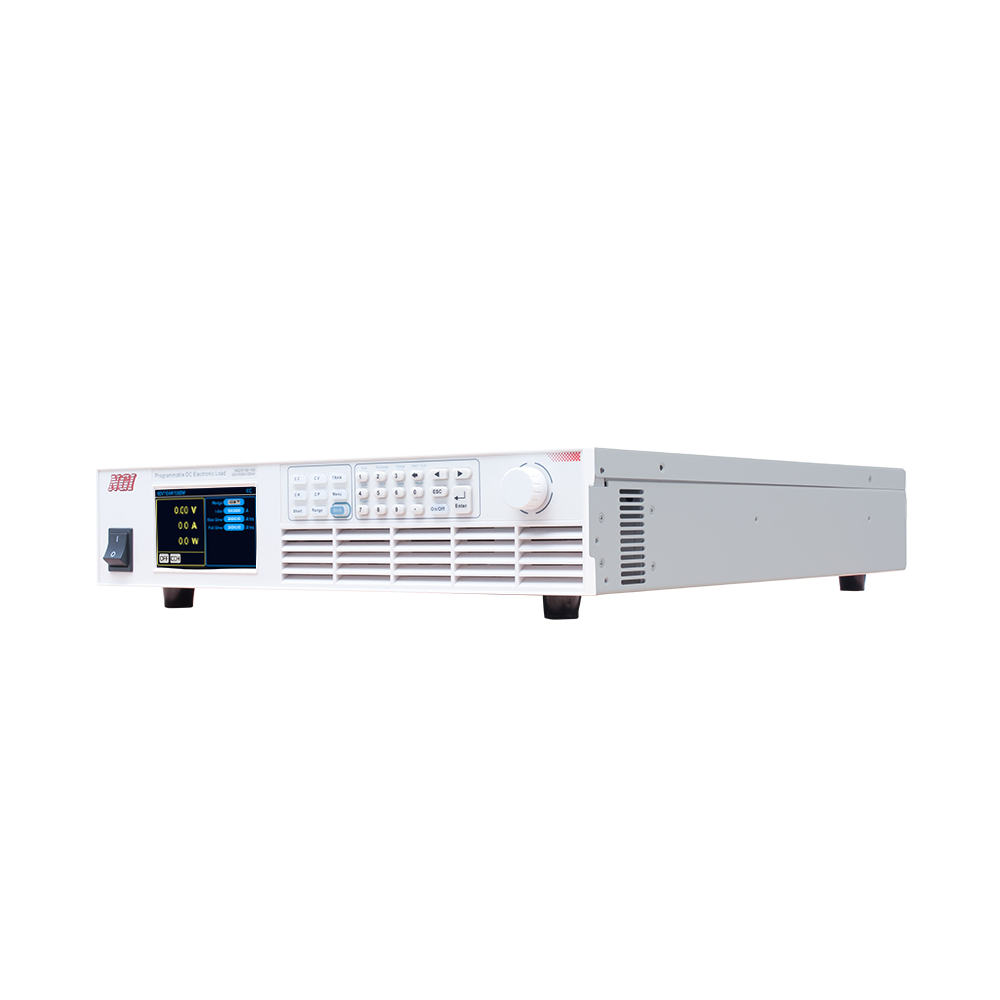

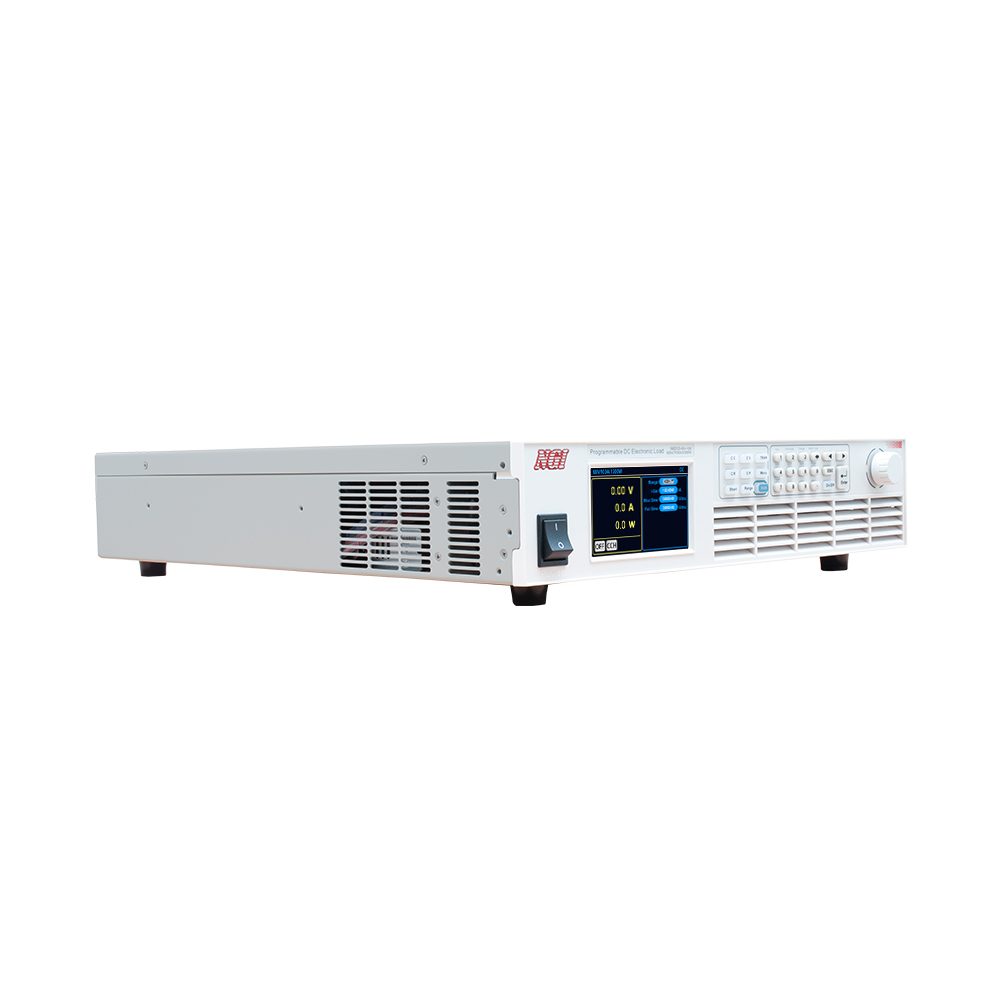

N6200 Series

Programmable DC Electronic Load (600W/1200W/1800W)

N6200 series is a programmable DC electronic load with high accuracy, high reliability and high cost performance. It supports local control via screen&button and remote control on PC. It is with built-in LAN port and RS232 interface. N6200 series is designed in a 19 inch 2U chassis, which is available for benchtop use or installation in 19 inch rack.

N6200 Series

Features

Specifications

● Power range: 0-600W/0-1200W/0-1800W
● Voltage range: 0-60V/0-150V/0-600V
● Current range: 0-50A/0-100A/0-150A
● Operation mode: CC, CV, CP, CR
● Stable and reliable CR/CP function supported by hardware
● Supporting LAN/RS232 communication and SCPI commands
● Programmable sequence test function(SEQ), up to 100 groups sequence files, up to 50 steps per file
● Editable Von/Voff function
● Built-in ESR test function (Optional)
● Standard 19-inch 2U, available for rack installation
● Analog programming interface(APG), current monitoring interface, remote/local trigger function
● Short-circuit simulation
● Supporting charge & discharge test, OCP test
