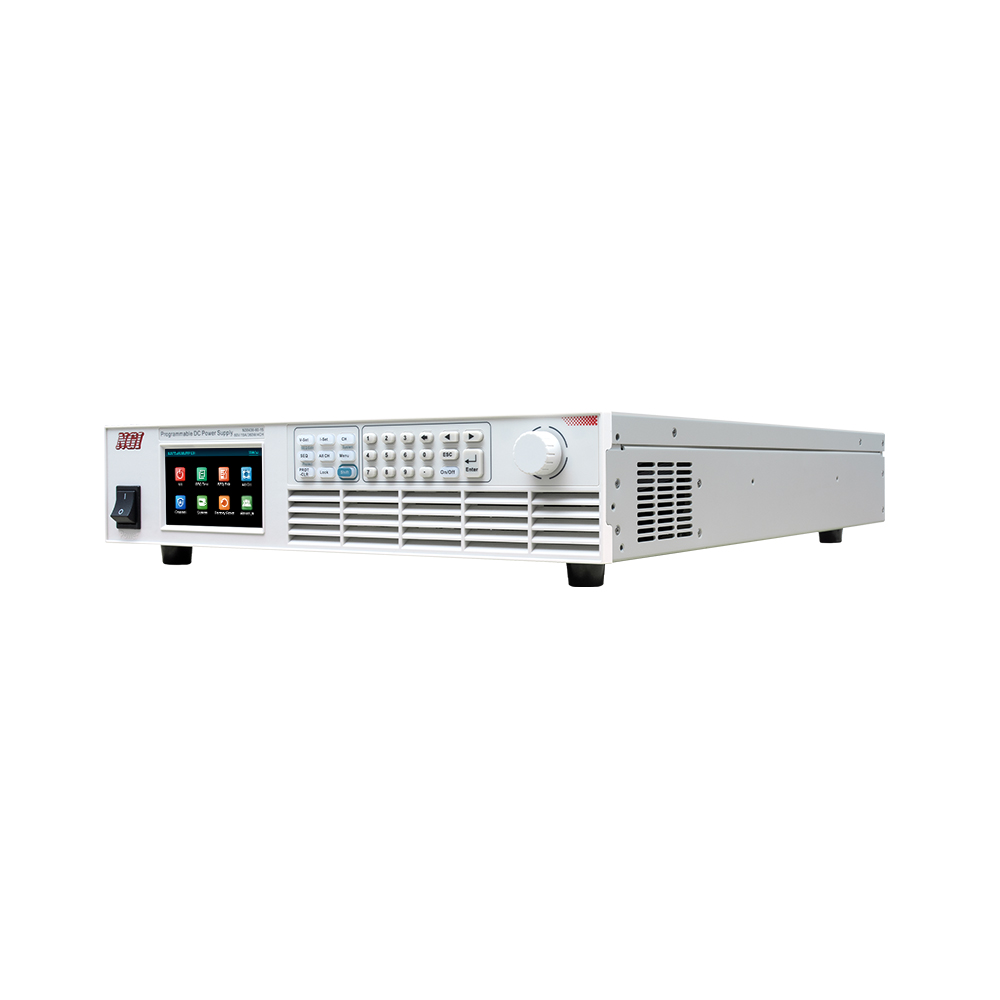

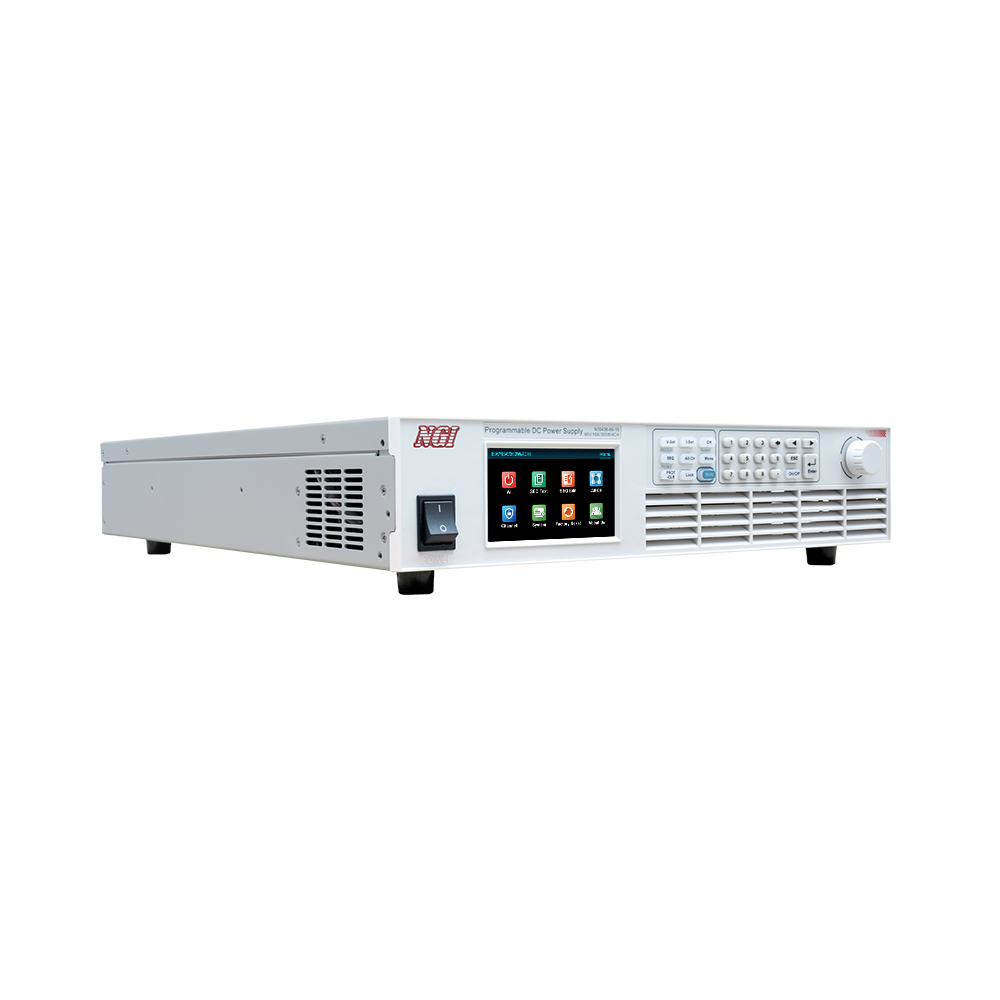

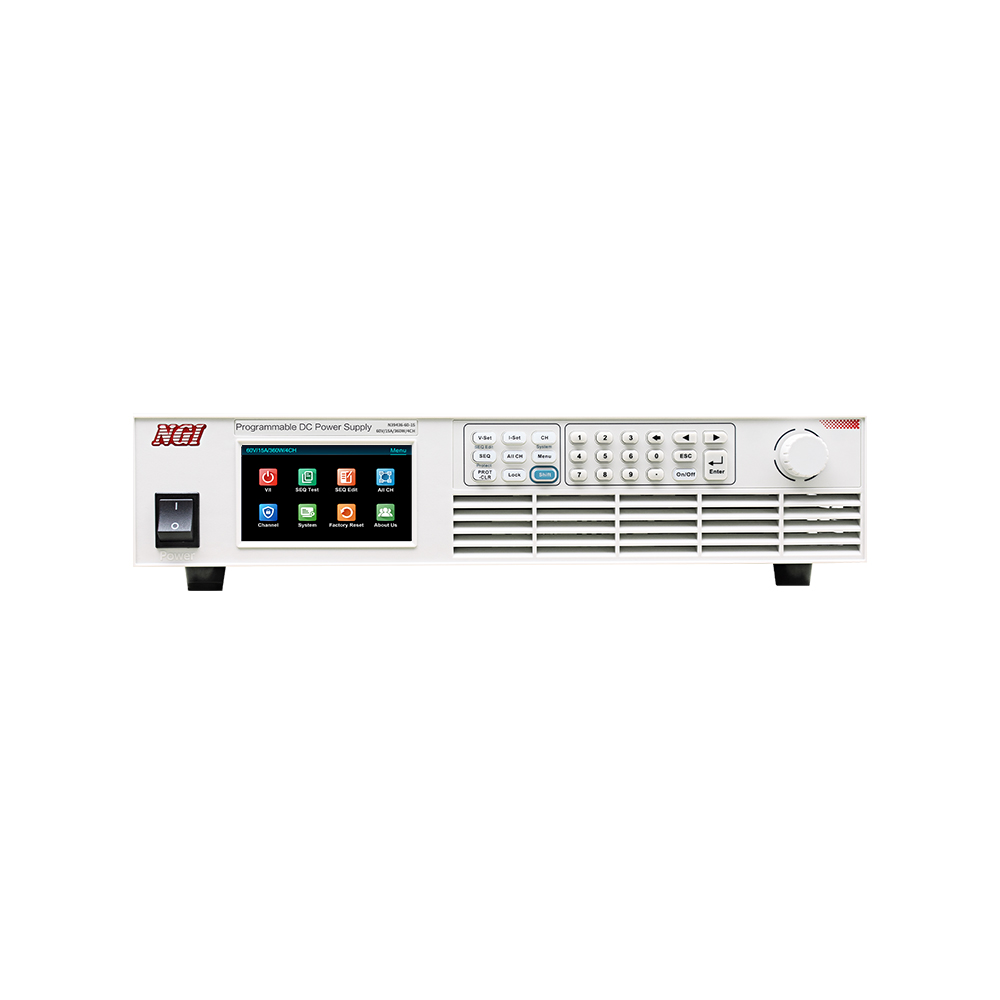

N39400 Series

Series High-accuracy Multi-channel Programmable DC Power Supply

N39400 series is a high-accuracy & multi-channel programmable DC power supply with standard 19-inch 2U design, available for rack installation. N39400 standalone supports Max. 4 channels output, with channels isolated. Both local operation on front panel and remote control on a computer are supported. N39400 can be widely used in lab test, system integration test, production aging line, etc.

N39400 Series

Features

Specifications

● Voltage range: 60V/150V
● Current range: 4A/6A/10A/15A
● Power range: 200W/360W/600W
● CC&CV priority function
● Single device with up to 4 channels, each channel isolated
● Multiple protections: OVP, OCP, OTP and short circuit
● LAN port and RS232 interface
● Equipped with LCD screen and user-friendly interface
● Dual LAN ports design
