Integrations with Huntron Workstation

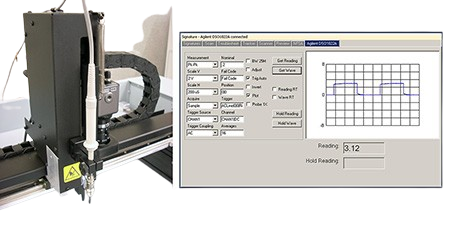

The Huntron Workstation Software Development Kit (SDK) provides a method for integrating control of instruments to the Huntron Workstation software and use with Huntron Access Probers. The Huntron Workstation software can move the prober to a location, control the instrument(s), display data, make comparisons and show results. The SDK supports numeric measurements, waveforms and images. The integration is performed creating/modifying a .NET DLL. The combination of the Huntron Workstation software, Huntron Access Probers, other instruments and the customized DLL create a fast and easy way to create effective custom prober systems. The SDK supports 3 numeric measurements, a waveform and an image for each test range. The settings for obtaining the data are customizable windows controls consisting of 6 drop down list boxes, 6 text boxes and 6 check boxes. The text of the labels for the controls is set in the DLL. The values in the drop downs are also set in the DLL. In addition there is a delay field for delaying the measurement after the probe has made contact and +/- tolerance fields for comparison.
