Antenna Test System (Far-Field up to 193 cm, 18 GHz – 54 GHz)

5G OTA

Frequency Extension System to 330 GHz

This system is designed for users requiring a very large far-field distance for OTA testing at 5G frequencies (18–54 GHz). It features CMT’s VNA and extenders, a 4-cube modular anechoic chamber, and a 3D gimbal. The configuration allows far-field measurements up to 193 cm, maintaining high measurement fidelity while remaining relatively compact and cost-effective.

Features

Key capabilities and advantages

Integrated, turnkey test bundle (chamber + VNA + extenders + gimbal)
Modular 4-cube design to reach a large far-field distance
Open-source measurement software in Python, saving data in CSV format
Designed for 5G antenna testing in large or high-precision environments

Specifications

Technical specifications and parameters

Frequency Range	18 GHz – 54 GHz
Far-Field Distance	193 cm (OTA-4S-54)

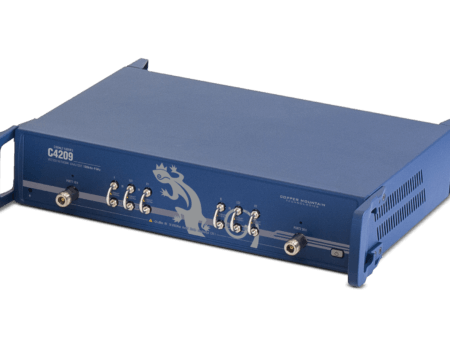

VNA	9 GHz Cobalt VNA (C4209)

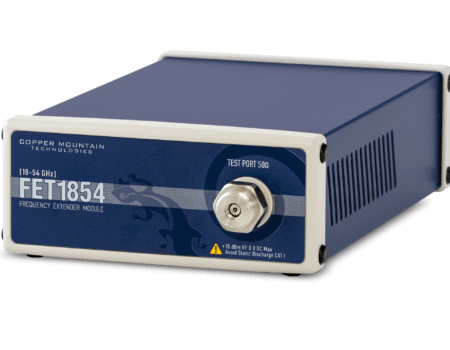

Extenders	FET1854 frequency extenders for 18–54 GHz
Chamber	4 modular anechoic cubes
Gimbal	3D antenna positioner included
