mmWave OTA Antenna Test System – Far-Field up to 158 cm (50 GHz – 220 GHz)

mmWave OTA Antenna Test System

Frequency Extension System to 330 GHz

This complete mmWave over-the-air (OTA) antenna measurement chamber solution is offered in partnership with MilliBox and Eravant and is available for 158 cm far-field measurements in frequency ranges up to 220 GHz. Each OTA bundle is anchored by CMT’s 9 GHz C4209 VNA and includes a benchtop compact anechoic chamber, a 3D antenna positioner (Gimbal), a set of frequency extender modules, sophisticated but intuitive measurement software developed by MilliBox, and other necessary accessories to fully set up a chamber for far-field and sub-THz antenna measurements.

Features

Key capabilities and advantages

Turn-key OTA chamber solution (ready to use)
Modular chamber (3-cube) for configurable far-field distance
Cost-effective and space-saving design
Open-source Python software for automation, gimbal control, and CSV data output
Supports multiple mmWave extender bands (WR-15, WR-12, WR-10, WR-08, WR-06, WR-05)
Ideal for mmWave and sub-THz antenna testing (radar, aerospace, satellite, R&D)

Specifications

Technical specifications and parameters

Frequency Range	50 GHz – 220 GHz
Far-Field Distance	158 cm (3 cubes)
VNA	C4209 9 GHz Cobalt VNA

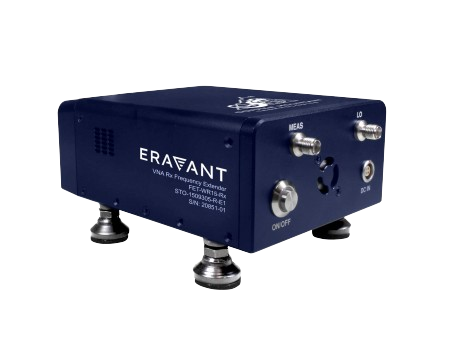

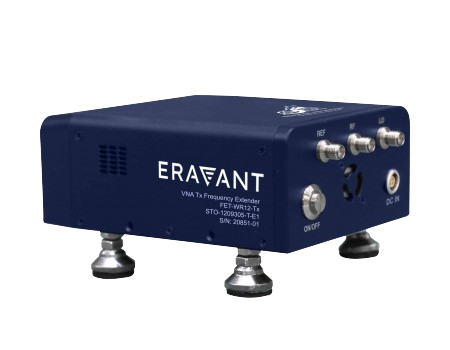

Extender Modules	Eravant WR-15 / WR-12 / WR-10 / WR-08 / WR-06 / WR-05
Gimbal / Positioner	GIM04-300E 3D antenna positioner
Software	Python-based control software (MilliBox)
Accessories	Power supplies, SMA cables, probe post, manuals, design files
