This turnkey chamber system is designed for measuring over-the-air (OTA) 5G antennas in a far-field configuration. The system uses CMT’s 9 GHz Cobalt VNA with frequency extenders, and provides a complete benchtop anechoic chamber, a 3D gimbal for antenna positioning, and a full software suite for automated measurement. With its compact footprint and modular design, it offers a low-cost, space-saving solution for engineers performing far-field tests at frequencies from 18 GHz to 54 GHz.

Features

Key capabilities and advantages

Turn-key OTA measurement system (ready to test out-of-the-box)
Compact and modular benchtop chamber design
3D gimbal for precise antenna positioning
Open-source measurement software in Python, measurement data saved to CSV
Low cost and space-saving, ideal for multiple systems in a single lab

Specifications

Technical specifications and parameters

Frequency Range	18 GHz – 54 GHz
Far-Field Distance	72 cm (OTA-2S-54)

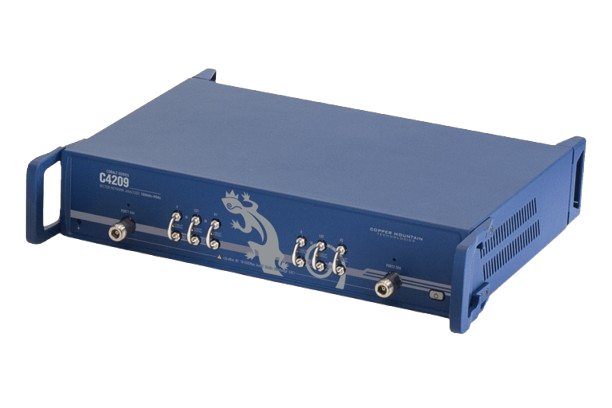

VNA	9 GHz Cobalt VNA (C4209)

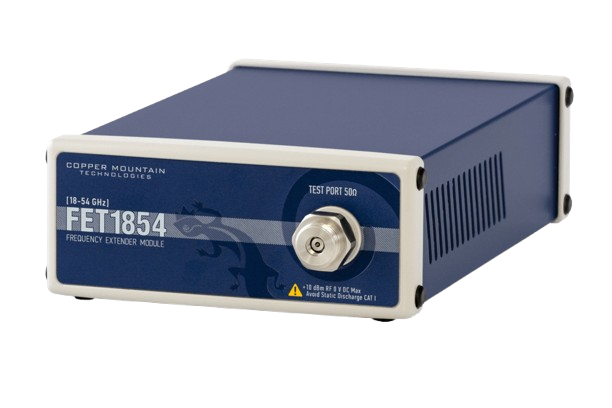

Extenders	CobaltFx FET1854 for 18–54 GHz
Chamber	Modular anechoic chamber (2 cubes)
Gimbal	3D antenna positioner included
