mmWave OTA Antenna Test System (Far-Field up to 80 cm, 50 GHz – 220 GHz)

mmWave OTA Antenna Test System

Frequency Extension System to 330 GHz

This mmWave system is tailored for high-frequency over-the-air testing from 50 GHz up to 220 GHz. The bundle supports modular construction with 2, 3, or 4 chamber cubes to achieve different far-field distances, integrating CMT’s VNA, mmWave extenders, and a precise gimbal. The solution is portable, space-efficient, and ideal for mmWave antenna development in automotive radar, satellite communications, and advanced research.

Features

Key capabilities and advantages

Turn-key bundle for mmWave OTA measurement
Modular chamber with flexible cube configuration (2, 3, or 4)
Open-source Python measurement software for control and data logging
Low-cost and space-efficient design for cutting-edge mmWave research and industrial testing

Specifications

Technical specifications and parameters

Frequency Range	50 GHz – 220 GHz
Far-Field Distance	80 cm (OTA-2H-XX)
Chamber	Modular mmWave anechoic chamber (2–4 cubes)
VNA	9 GHz Cobalt VNA (C4209)

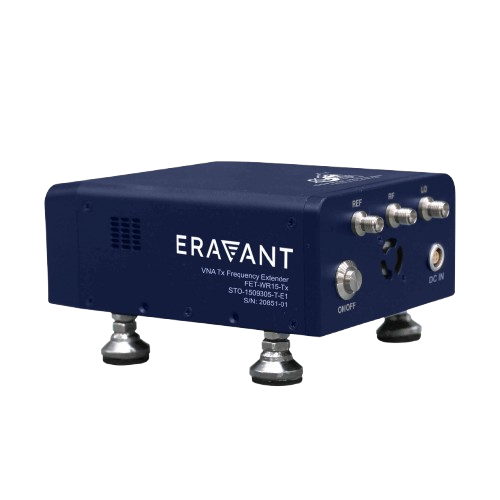

Extenders	mmWave extenders covering WR-15, WR-12, WR-10, WR-08, WR-06, WR-05
Gimbal	3D antenna positioner included
