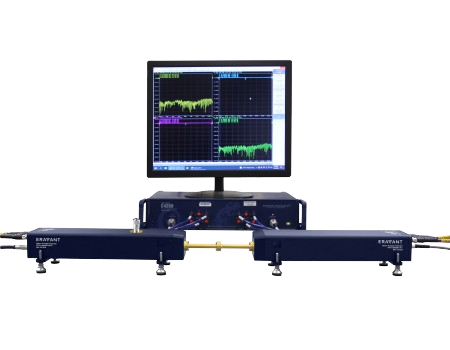

The CobaltFx FET-WR06 extends vector network analyzer measurement capability into the D-band (110–170 GHz). Designed for advanced mmWave applications, it offers a modular, scalable, and cost-effective solution for high-frequency waveguide component characterization and research.
Key capabilities and advantages
Technical specifications and parameters
| Frequency Range | 110 GHz – 170 GHz |
| Connector Type | Waveguide WR-06 |
| Attenuator Option | 0 – 30 dB |
| Dynamic Range | ~100 dB typical (10 Hz IF BW) |
| Multiplication Factor | Per product datasheet |
| Waveguide Interface | Proxi-Flange™ |
| Operating Temperature | 0 °C to +50 °C (spec +20 °C to +30 °C) |
