mmWave OTA Antenna Test System – Far-Field up to 235 cm (50 GHz – 220 GHz)

mmWave OTA Antenna Test System

Frequency Extension System to 330 GHz

This full mmWave OTA solution bundle is available for 235 cm far-field measurements at frequencies up to 220 GHz. It includes a modular anechoic chamber, 3D gimbal, frequency extenders, 9 GHz VNA, and other necessary instruments and accessories, enabling accurate far-field and sub-THz antenna measurements in a scalable, lab-friendly format.

Features

Key capabilities and advantages

Turn-key, all-in-one mmWave OTA test system
Highly modular 4-cube chamber for very large far-field distances
Python-based control and measurement automation
Low-cost footprint relative to capability
Suitable for mmWave and sub-THz antenna research and production (radar, satellite, R&D)

Specifications

Technical specifications and parameters

Frequency Range	50 GHz – 220 GHz
Far-Field Distance	235 cm (4 cubes)
VNA	C4209 9 GHz Cobalt VNA

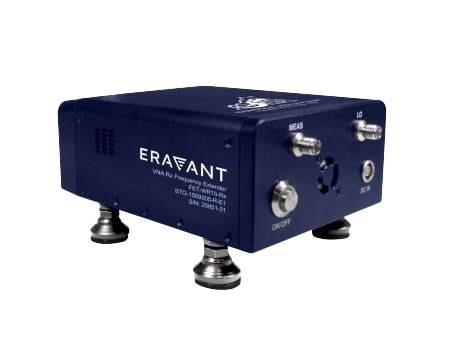

Extenders	Eravant WR-15 / WR-12 / WR-10 / WR-08 / WR-06 / WR-05
Gimbal	3D antenna positioner included
Software	Python-based measurement and post-processing
Package Includes	Chamber, power supplies, hardware, manuals
